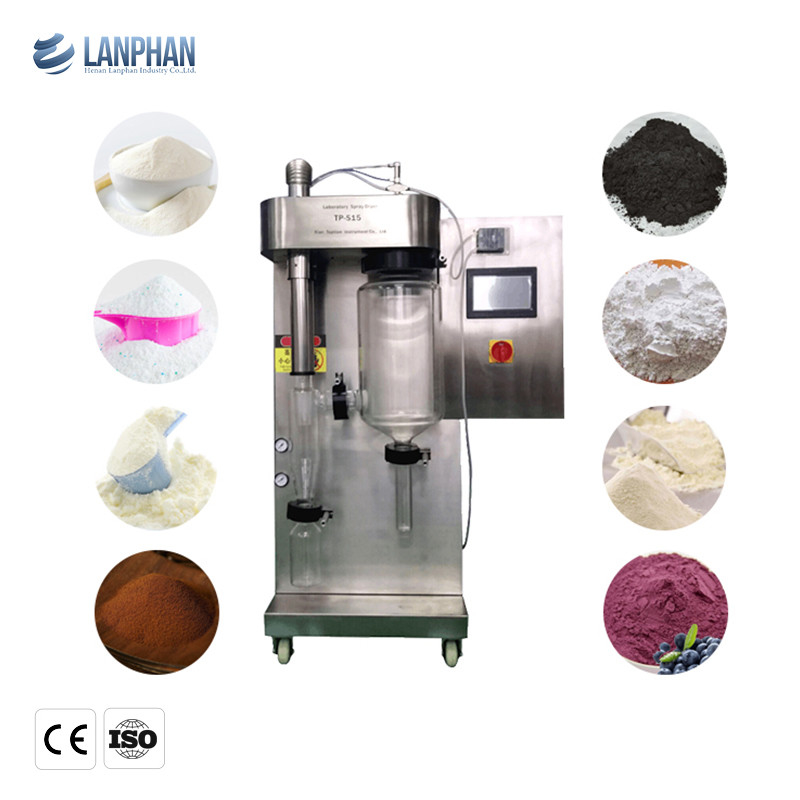

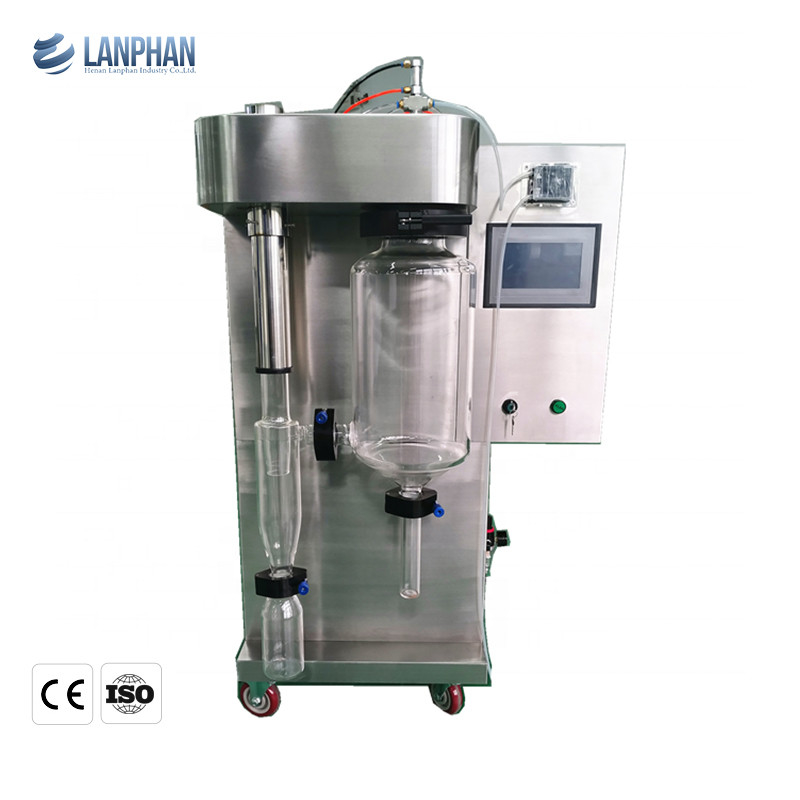

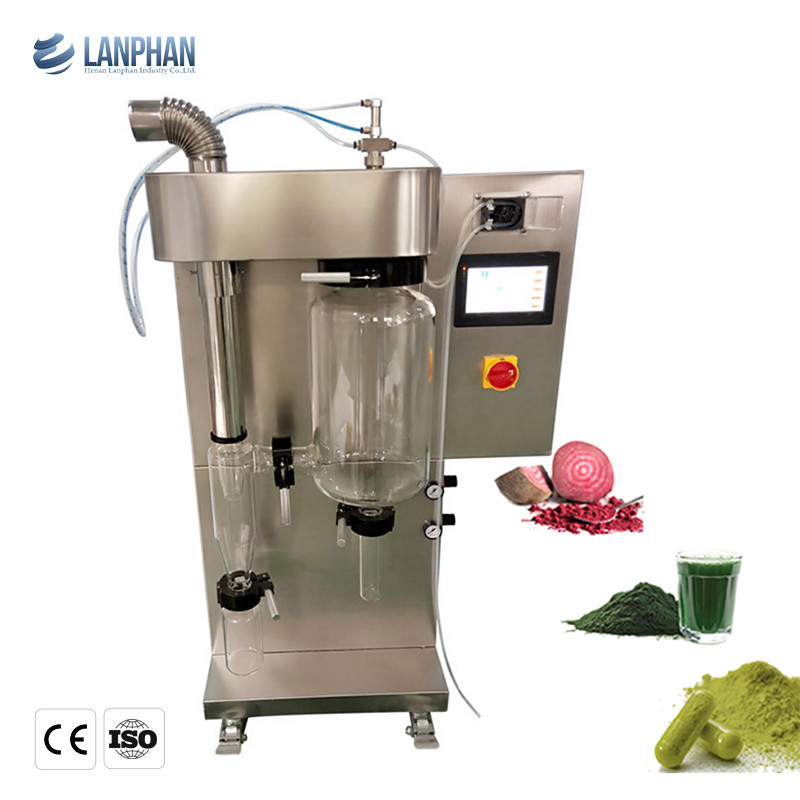

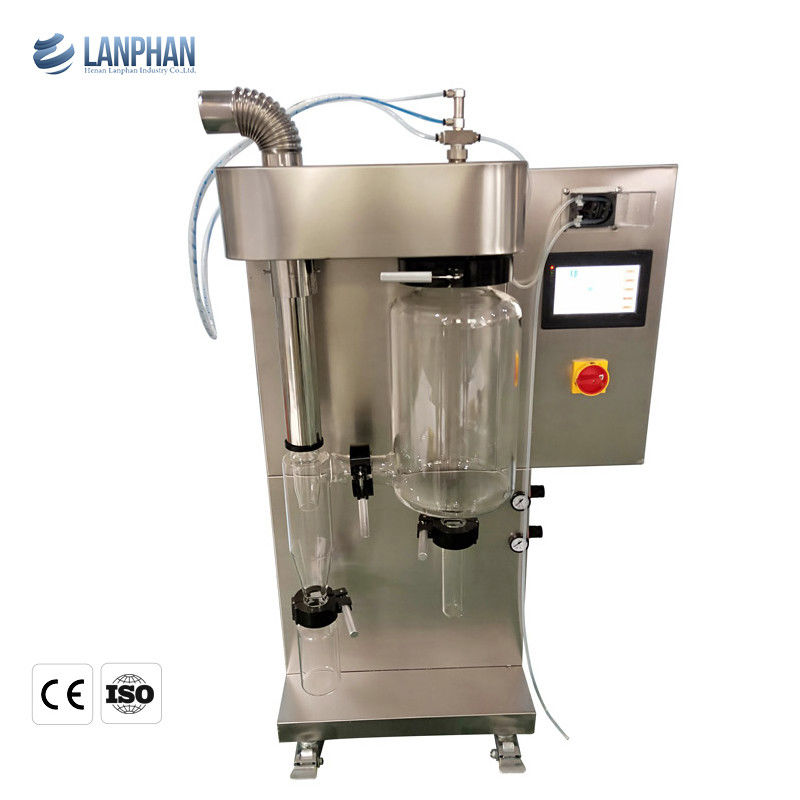

Lab Mini Centrifugal Spray Dryer 2L Milk Spray Drying Machine

Minimum Order Quantity : 1 set Price : $2800
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-12 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: HF-2

Detail Information

Product Name: Lab Spray Dryer Evaporation: 2000ml/ H
Maximum Feeding Capacity: 2000ml/ H Fan Power: 0.55kw
Maximum Air Pressure: 1020pa Air Compressor Power: 0.2kw
High Light:

Lab Mini Centrifugal Spray Dryer

,

2L Milk Spray Drying Machine

,

0.55 kw Lab Spray dryer

Product Description

Milk Spray Drying Machine Lab Mini Centrifugal Spray Dryer 2L



Mini Spray Dryer Application



Various fields where the production of a free powder sample is required.
We has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.



Mini Spray Dryer Description



Spray dryer is a drying equipment for dealing with solution, suspension or slurry material. It is used to spray the material into droplets dispersed in hot air. The material and the hot air are parallel flow, countercurrent or mixed flow of the way to contact each other, so that the moisture evaporates quickly to achieve the purpose of drying. This drying method can eliminate the concentration, filtration, grinding and other operations, and can obtain 30~500μm granular product. The drying time is very short, generally 5~30s. Suitable for drying of high heat sensitive materials and easily dispersed materials in the process of liquid concentration.



Mini Spray Dryer Parameter



Air inlet temperature control 30~300℃
Air outlet temperature control 30~150℃
Electric heater power 3KW AC220V
evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight 125KG



Lab Mini Centrifugal Spray Dryer 2L Milk Spray Drying Machine 0Lab Mini Centrifugal Spray Dryer 2L Milk Spray Drying Machine 1Lab Mini Centrifugal Spray Dryer 2L Milk Spray Drying Machine 2Lab Mini Centrifugal Spray Dryer 2L Milk Spray Drying Machine 3
