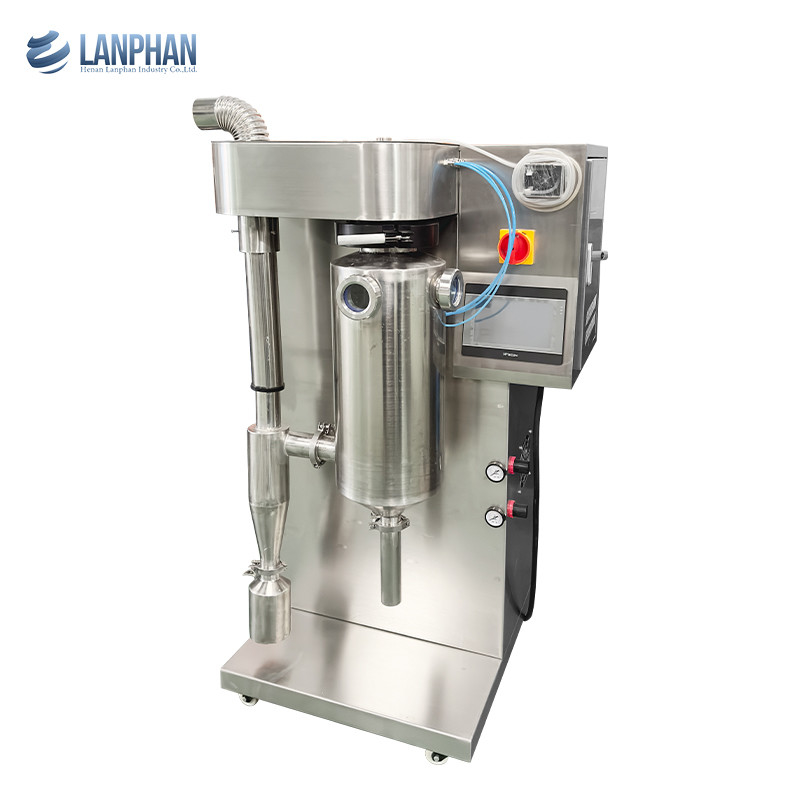

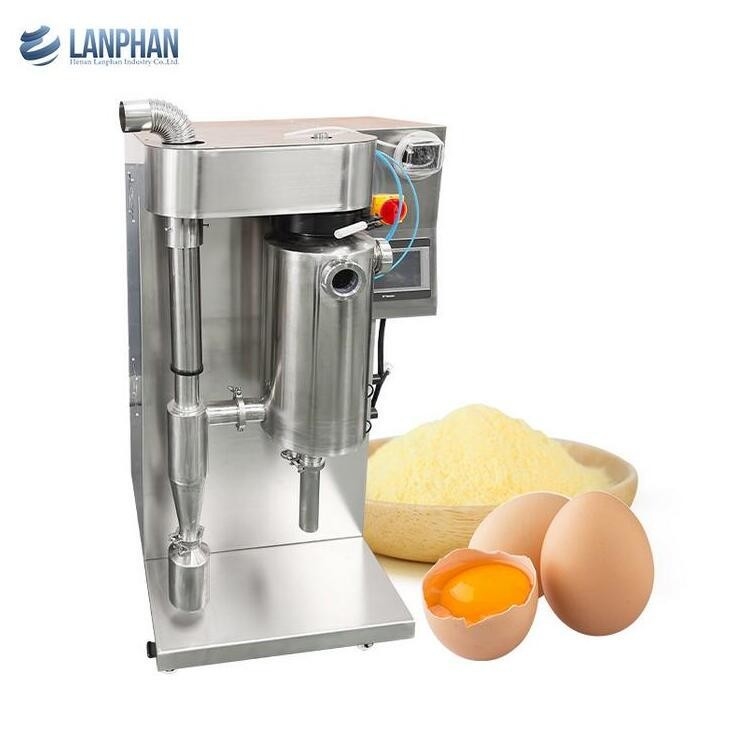

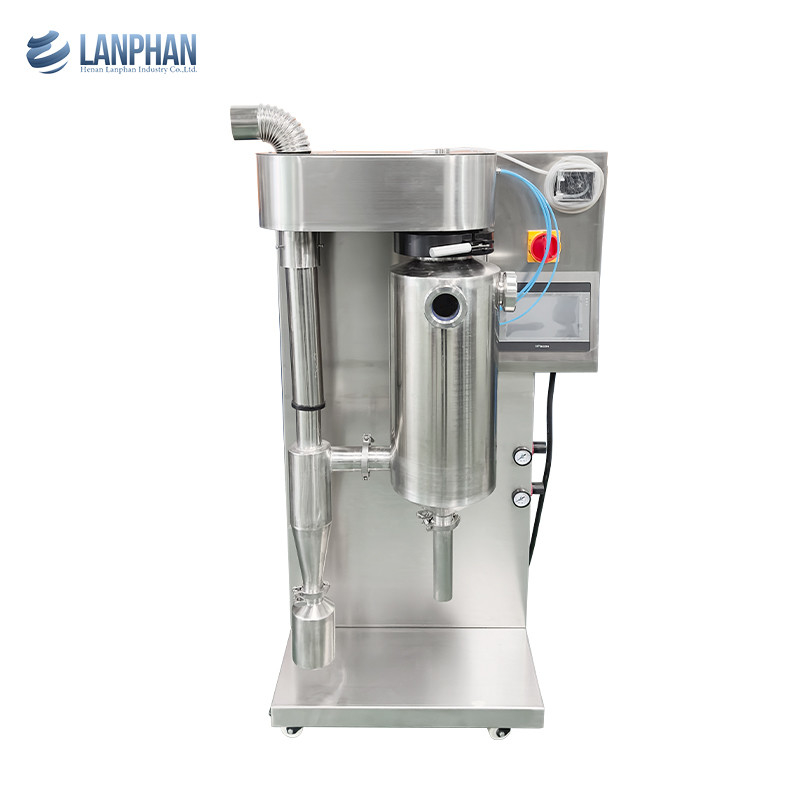

Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder

Minimum Order Quantity : 1 set Price : $2900
Packaging Details : carton or wooden case package, customized package is available Delivery Time : 7-15 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE ISO Model Number: 2L

Detail Information

Name: Spray Dryer Nozzle Diameter: 1mm
Air Compressor Power: 0.2kw Maximum Air Pressure: 1020pa
Fan Power: 0.55kw Electric Heater Power: 3KW AC220V
Maximum Feeding Capacity: 2L/H
High Light:

2L Stainless Steel Spray Dryer

,

Chemical Laboratory Stainless Steel Spray Dryer

,

Stainless Steel Spray Dryer 1mm

Product Description

Chemical Laboratory 2L Stainless Steel Spray Dryer For Making Powder



Parameter



Air inlet temperature control 30~300℃
Air outlet temperature control 30~150℃
Electric heater power 3KW AC220V
Evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan Power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃



Rotary Atomizer Spray Dryer  Application



Rotary atomizer spray dryer price is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.



Rotary Atomizer Spray Dryer Description



Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.



Rotary Atomizer Spray Dryer Working Principle



After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.



Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder 0Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder 1Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder 2Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder 3Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder 4Chemical Laboratory 2L Stainless Steel Spray Dryer 1mm For Making Powder 5
