Mini Instant Rotary Atomizer Spray Dryer Coffee Powder Laboratory 2000ml/H

Minimum Order Quantity : 1 set Price : $2800
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE ISO Model Number: HF-2

Detail Information

Product Name: Mini Spray Dryer Electric Heater Power: 3KW AC220V
Fan Power: 0.55kw Air Compressor Power: 0.2kw
Nozzle Diameter: 1mm Evaporation: 2000ml/h
High Light:

Mini Instant Rotary Atomizer Spray Dryer

,

Laboratory Rotary Atomizer Spray Dryer

,

Rotary Atomizer Spray Dryer 2000ml/H

Product Description

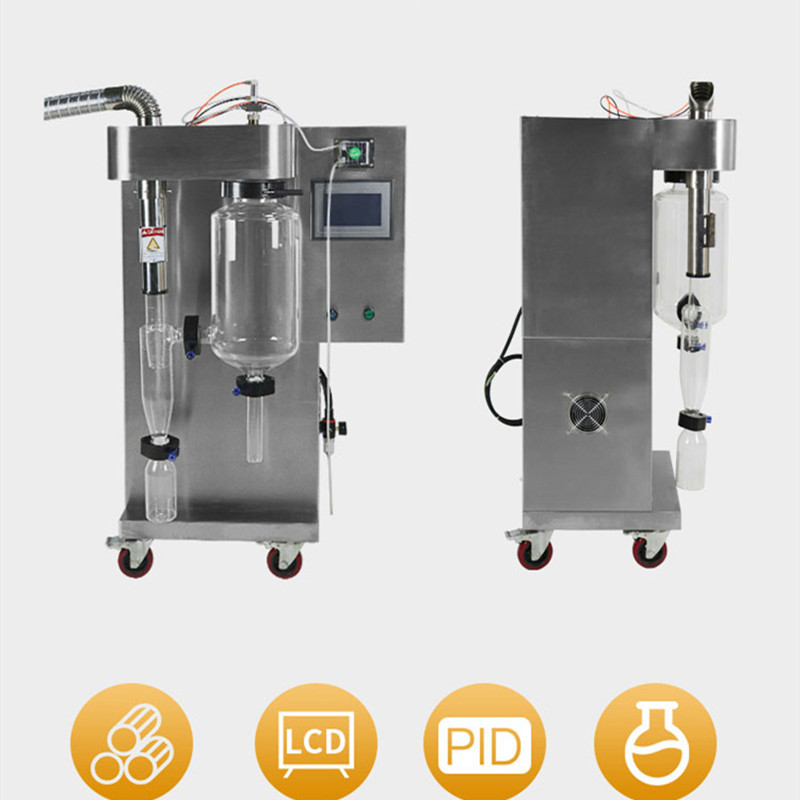

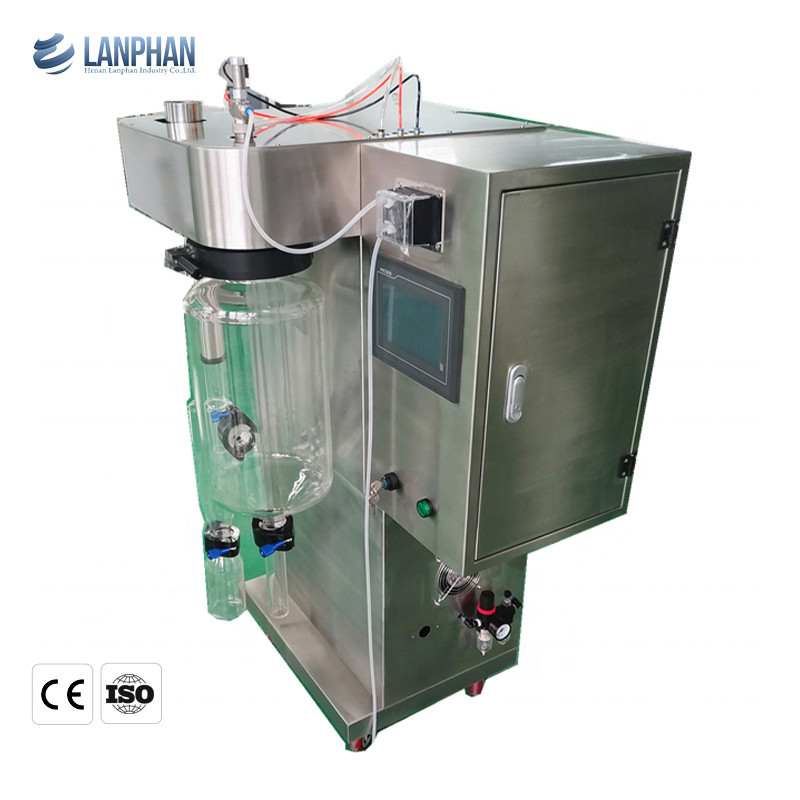

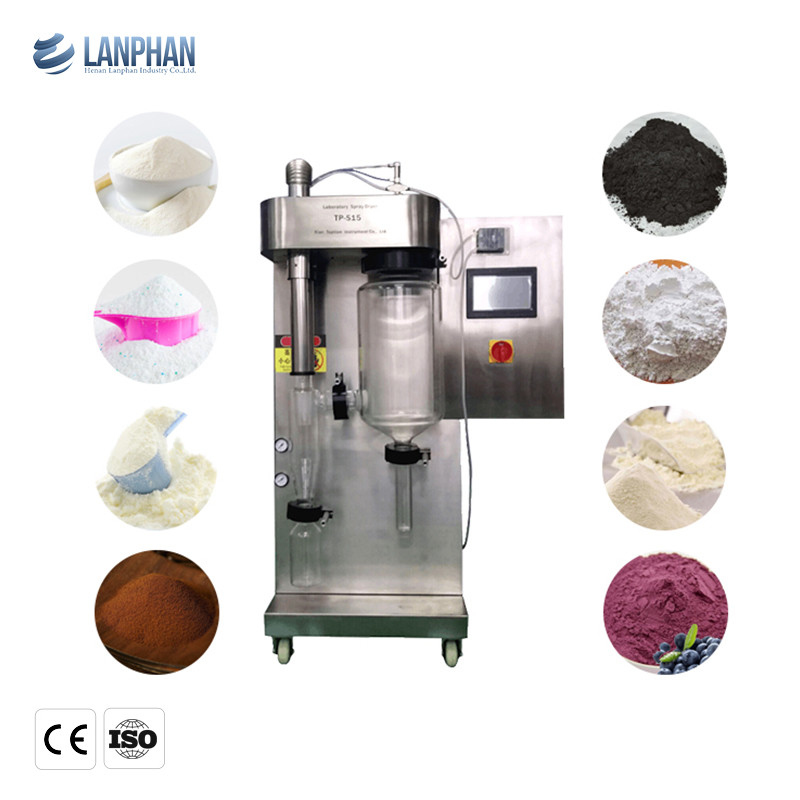

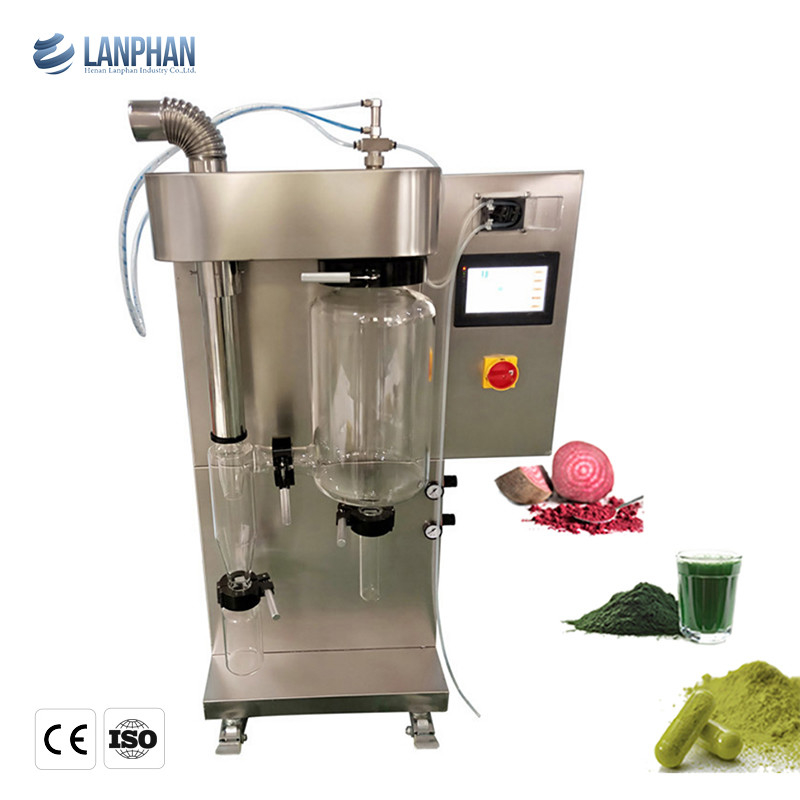

Mini Instant Coffee Powder Laboratory Rotary Atomizer Spray Dryer 2000ml/H



Product Features

  • Special for lab research, Min 20-30ml liquid to finish one test
  • All borosilicate glass for easy visual monitoring of process status.
  • Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
  • Easy to clean and very simple to assemble and break down.
  • The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands
  • inlet/outlet temperature is accurate controlled by PID
  • The unit is self contained and supplied complete and ready for immediate operation.
  • Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
  • Product feeding with RS2559605 rotary pump, capacity is adjustable
  • Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

Product Parameter



Air inlet temperature control 30~300℃
Air outlet temperature control 30~150℃
Electric heater power 3KW AC220V
evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight 125KG



Mini Instant Rotary Atomizer Spray Dryer Coffee Powder Laboratory 2000ml/H 0Mini Instant Rotary Atomizer Spray Dryer Coffee Powder Laboratory 2000ml/H 1Mini Instant Rotary Atomizer Spray Dryer Coffee Powder Laboratory 2000ml/H 2Mini Instant Rotary Atomizer Spray Dryer Coffee Powder Laboratory 2000ml/H 3Mini Instant Rotary Atomizer Spray Dryer Coffee Powder Laboratory 2000ml/H 4
