SS304 Cbd Crystallization Lab Glass Reactor 100l 200l

SS304 Cbd Crystallization Lab Glass Reactor 100l 200l

Cbd Crystallization Lab Glass Reactor

200l Lab Glass Reactor

SS304 Lab Glass Reactor

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

S212-50L

Contact Us
Request A Quote
Product Details
Product Name:
Glass Crystallization Reactor
Glass Material:
GG-17
Frame Material:
Stainless Steel
Pipe Fitting Material:
Stainless Steel 304
Move Mode:
Universal Caster With Brake
Volume Of Reaction Flask:
50L
Volume Of Interlayer:
13L
Volume Of Receiving Flask:
30L
Highlight:

Cbd Crystallization Lab Glass Reactor

,

200l Lab Glass Reactor

,

SS304 Lab Glass Reactor

Payment & Shipping Terms
Minimum Order Quantity
One unit
Price
$2023
Packaging Details
Carton, wooden or customizable package
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Set/Sets per Month
Product Description

SS304 Cbd Crystallization Lab Glass Reactor 100l 200l



Description of Double-layer Glass Reactor



Double-layer glass reactor is a commonly used biochemical instrument, which is widely used in modern fine chemical, bio-pharmaceutical, scientific research and other industries. It can concentrate, distill, reflux, separate and purify materials under constant speed, constant force and constant temperature, which is a ideal instrument for teaching, experiment, pilot test and production.



Application of Double-layer Glass Reactor



The thermostatic (high temperature or low temperature) hot solution or coolant is injected through a double-layer reactor sandwich, and the contents of the reactor are heated or cooled at a constant temperature with stirring. The materials react in the reaction vessel, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is finished, the materials can be discharged from the discharge port at the bottom of the kettle, which is extremely convenient. It is an ideal equipment for modern chemical samples, petrochemicals, sample experiments, biopharmaceuticals and new materials.



Features of Double-layer Glass Reactor



1. The reaction kettle body is made of high borosilicate glass (GG-17 material), which has excellent physical and chemical properties. The kettle body is transparent and users can see materials in.



2. The main body is made of stainless steel frame and aluminum alloy material, which is beautiful, steady and anti-corrosion.



3. Stainless steel stir rod is coated with PTFE that is suitable for a variety of solvent mixing, which is pollution-free and anti-corrosion.



4. Speed-reducing and power-increasing motor stirring has a stable operation, a large torque, no spark and a long service life.



5. PTFE components, mechanical seal and proprietary technology can guarantee a good vacuum and long service life.



6. The speed governor of this product can display the speed and temperature (can display the temperature inside the kettle). The rotary speed can be set by the speed control knob, which is intuitive and convenient. It is also equipped with a temperature probe (PT100) inside the kettle.



7. The overall structure is compact and reasonable with a universal wheel, which can be moved as a whole and is easy to operate.



8.There is no dead angle glass oblique discharge valve, which can effectively reduce the stirring dead angle and facilitate the discharging.



9.This product is equipped with a vacuum display function, which can select the best working vacuum for low boiling point materials.



Parameter of Double-layer Glass Reactor



Model S212-50L
Material GG-17
Frame Material Stainless Steel
Tube Material 304 Stainless Steel
Reaction Volume 50L
Layer Volume 12L
Vacuum Degree 0.098Mpa
Stirring Speed 0-450rpm
Stirring Diameter 12mm
Stirring Power 120W1/3
Voltage (V/Hz) 220V/50Hz
Dimension (mm*mm*mm) 760*560*2450
Packing Dimension(mm*mm*mm) 1720*680*850
Gross Weight(KG) 92

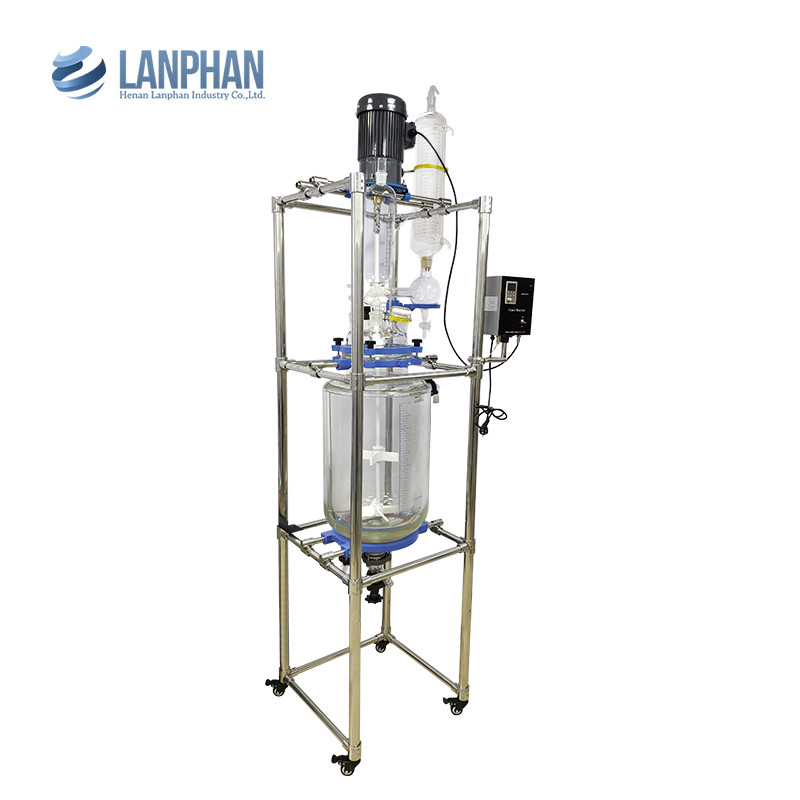

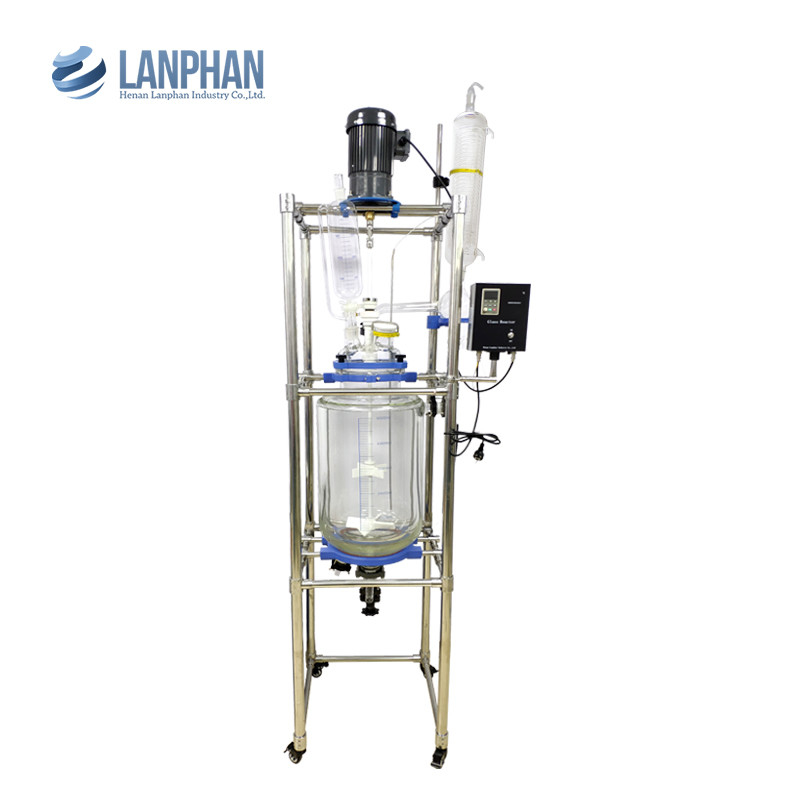

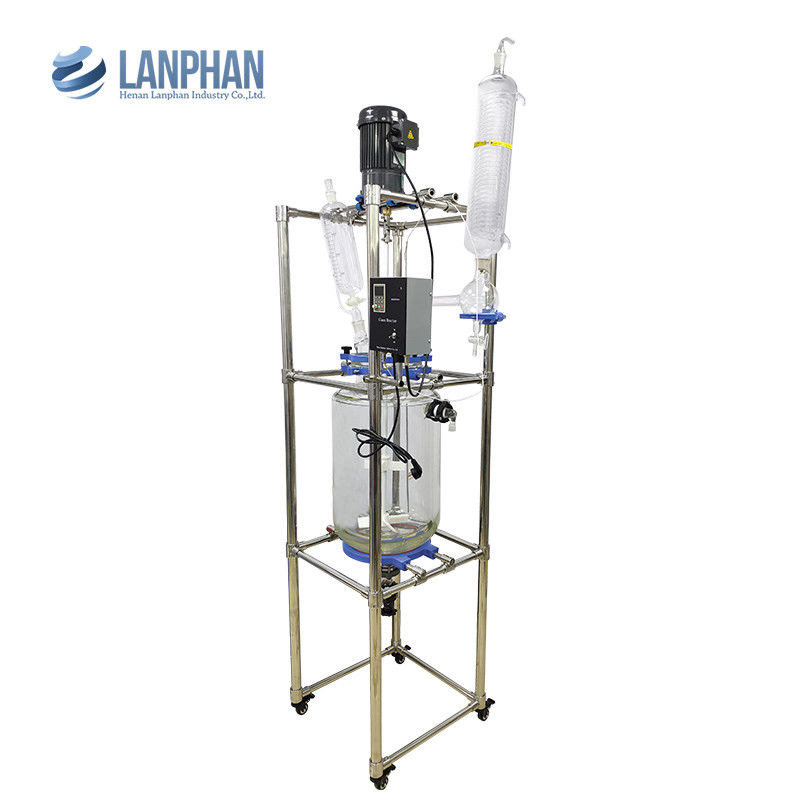

SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 0SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 1

SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 2

SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 3SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 4

SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 5



SS304 Cbd Crystallization Lab Glass Reactor 100l 200l 6
