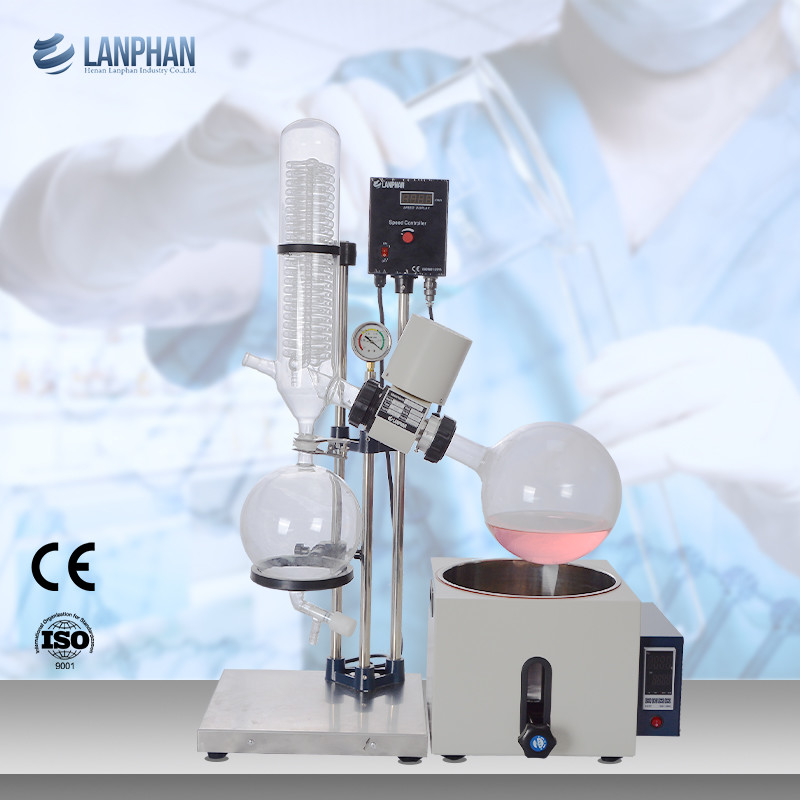

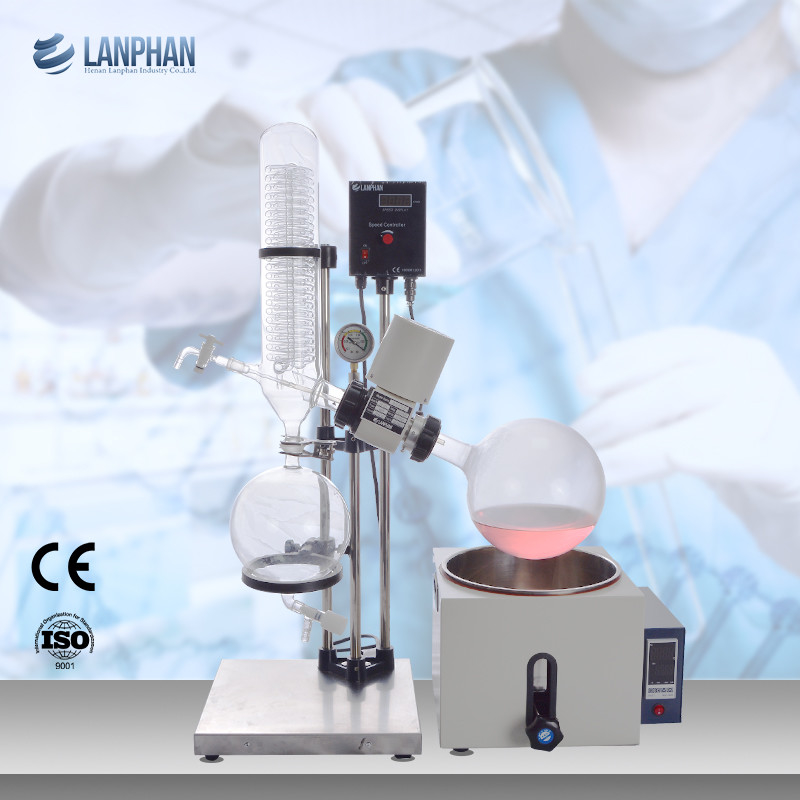

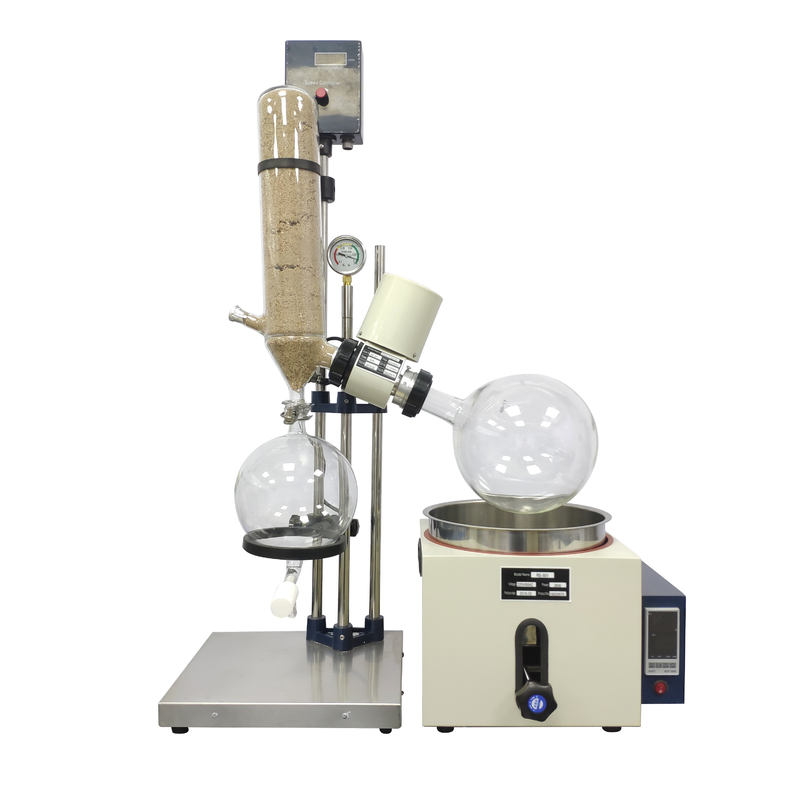

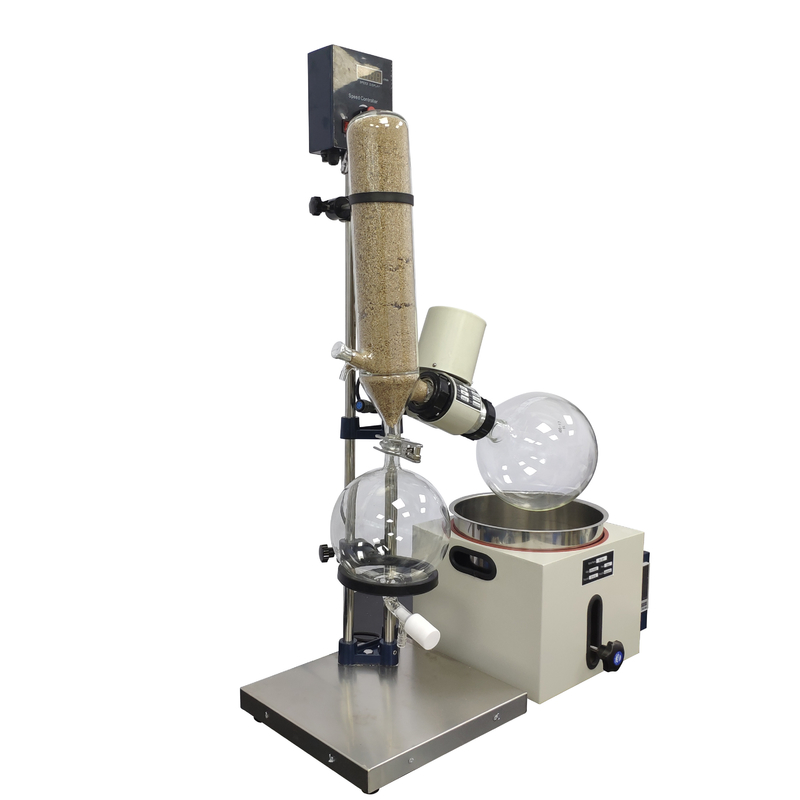

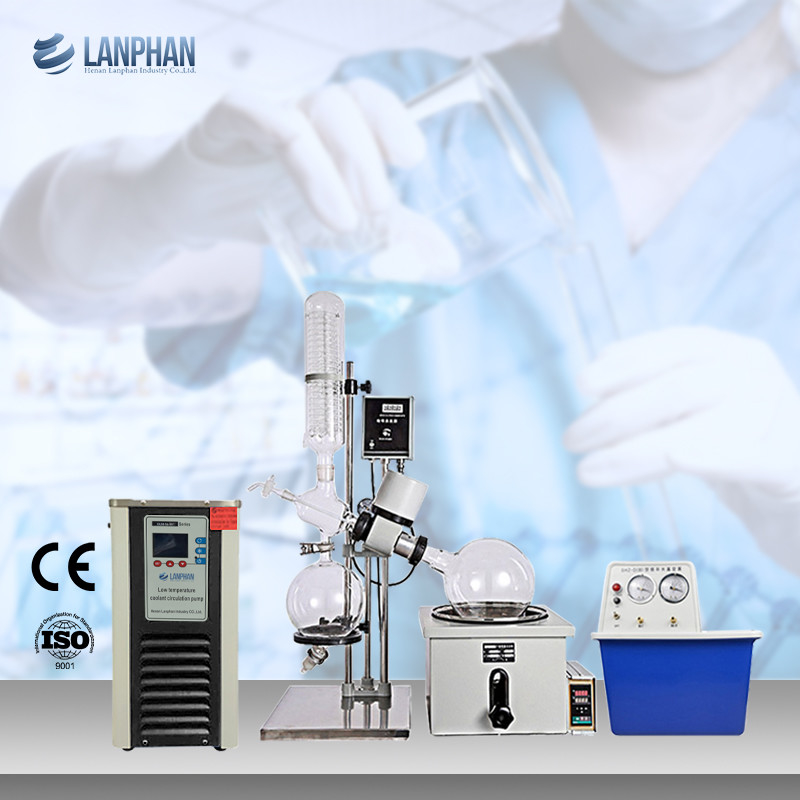

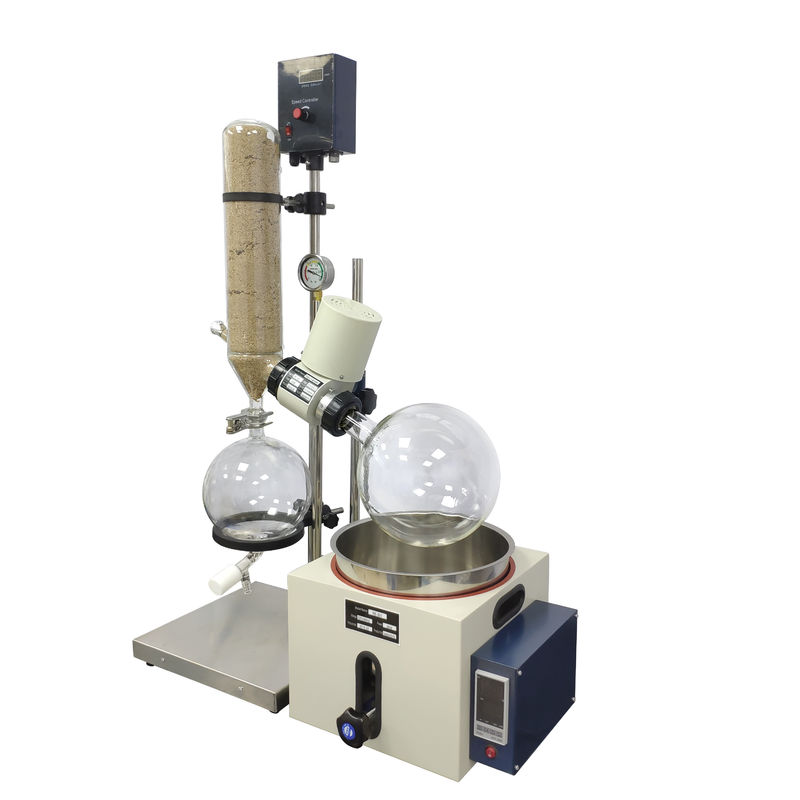

Steam Distillation Essential Oil Perfume Extraction Rotary Evaporator

Minimum Order Quantity : 1 set Price : $799
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-10 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: RE-501

Detail Information

Product Name: Rotary Evaporator Glass Material: GG-17
Frame Material: Stainless Steel Voltage: 220V/50Hz
Temperature Accuracy: ±1℃ Heating Power: 2KW
Rotary Power: 40W Rotary Speed: 0-120RPM
High Light:

Rosin Heat Press Machine

,

4T Heat Press Machine

,

Hydraulic Rosin Heat Press Machine

Product Description

Steam Distillation Essential Oil Perfume Extraction Rotary Evaporator



Product Description



A rotary evaporator (rotovap or rotatvap) refers to a kind of equipment for solvent evaporation under reduced pressure, which is composed of a vacuum system, a heated water or oil bath, a condenser and a motor that rotates the evaporation flask. As its name suggests, what is special is that the evaporation flask can rotate.

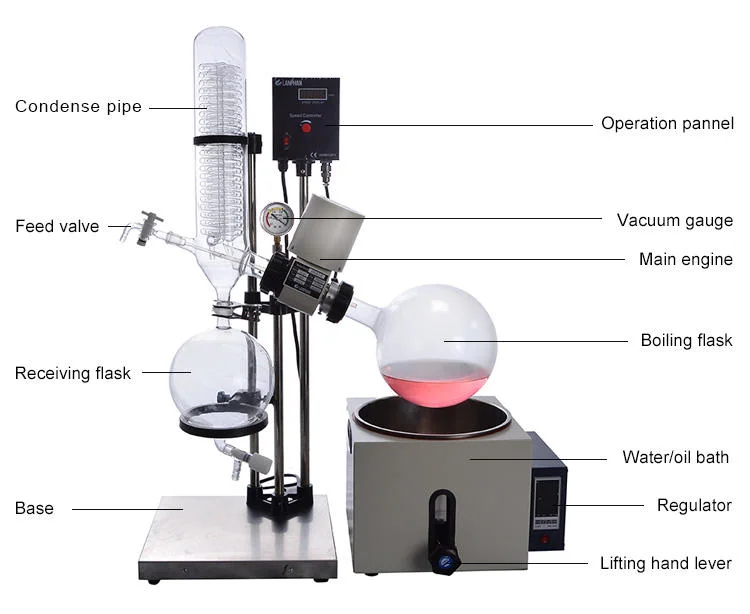

A complete rotary evaporator is generally composed of the following parts, which cooperate with each other and all play an essential role in the working process of a rotary evaporator.



Product Features

1. Higher evaporation efficiency.

There are several factors contributing to higher evaporation efficiency. Firstly, the rotating flask can rotate at a constant speed, and materials can form a widespread film on the inner surface of the flask, which improves the evaporation efficiency greatly. Secondly, the high-efficiency glass condenser can improve the evaporation efficiency as well. Last but not least, continuous feeding and high vacuum degree are another factors.

2. Better security.

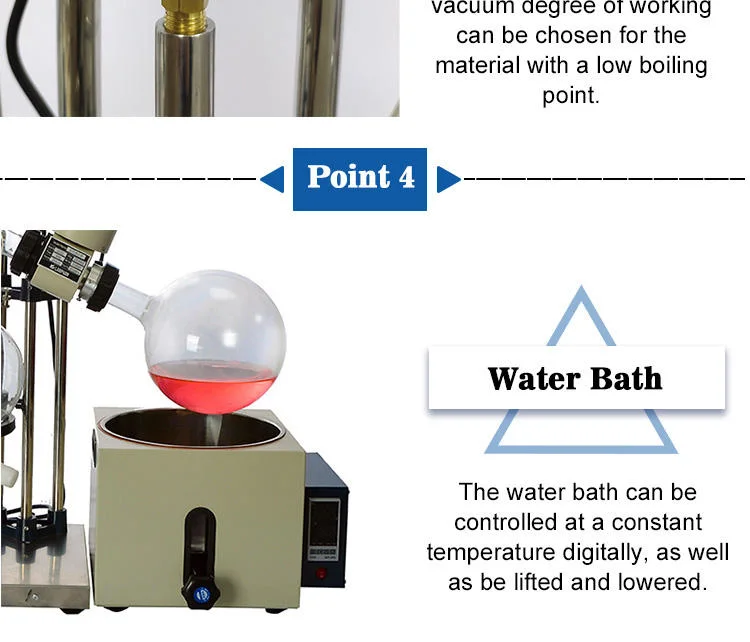

The stainless steel and aluminum alloy are widely used in the mechanical structure, and all glass parts are made of heat-resistant high borosilicate glass, which ensure a better security. Besides, the water/oil bath can be equipped with transparent covers to prevent splashing, and anti-explosion frequency changer and dynamo are available as well. All of these designs contribute to better security.

3. More convenient operation.

It's much more convenient to use a rotary evaporator, because the electrodeless speed regulation, digital display K type sensor and intelligent temperature control and other designs adopted by it.



Product Parameters



Product Model RE-501
Glass Material GG-17
Frame Material Stainless Steel
Rotary Flask 5L
Collecting Flask 3L
Vacuum Degree 0.098Mpa
Rotary Power 40W
Rotary Speed 0-120rpm
Heating Power 2KW
Temperature Accuracy ±1℃
Voltage 220V/50Hz

Lab Vacuum Rotary Evaporator Set 5LLab Vacuum Rotary Evaporator Set 5LLab Vacuum Rotary Evaporator Set 5LLab Vacuum Rotary Evaporator Set 5L

Certifications

Lab Vacuum Rotary Evaporator Set 5L

Attend Exhibition

Lab Vacuum Rotary Evaporator Set 5L

Packaging & Shipping

Lab Vacuum Rotary Evaporator Set 5LLab Vacuum Rotary Evaporator Set 5L
