S212 2l Laboratory Double Layer Jacketed Glass Reactor

Minimum Order Quantity : 1 Delivery Time : 7 work days
Place of Origin: henan Brand Name: lanphan
Certification: CE Model Number: S212-2L

Detail Information

Power:: 40W Weight:: 32KG
Type:: Reaction Kettle, Glass Reactor Certification:: ISO
Dimension(L*W*H):: 350*345*1000 Mm
High Light:

Double Layer Jacketed Glass Reactor

,

Laboratory Jacketed Glass Reactor

,

ISO Jacketed Glass Reactor

Product Description

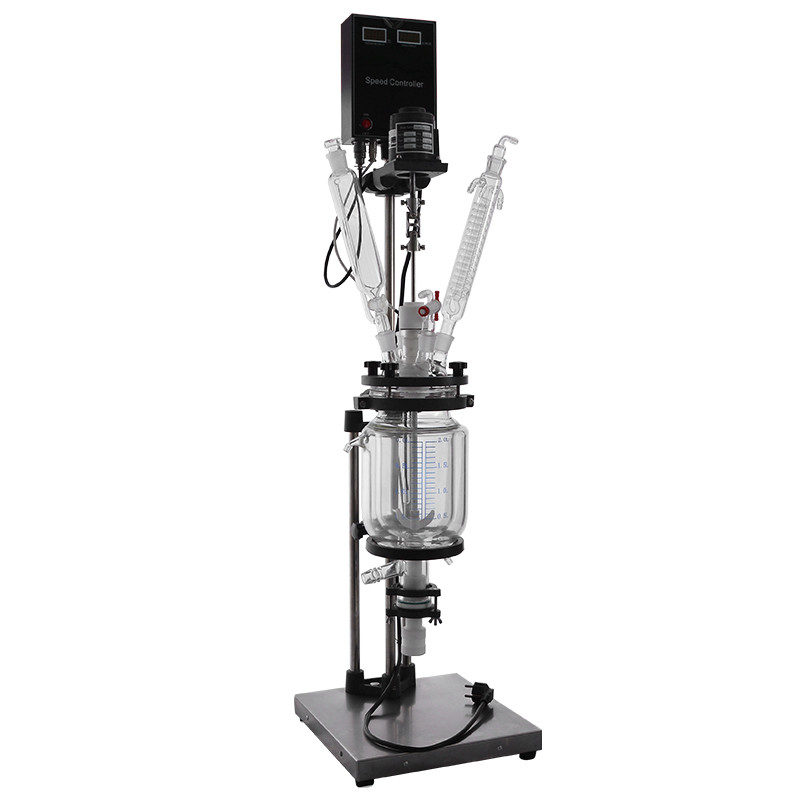

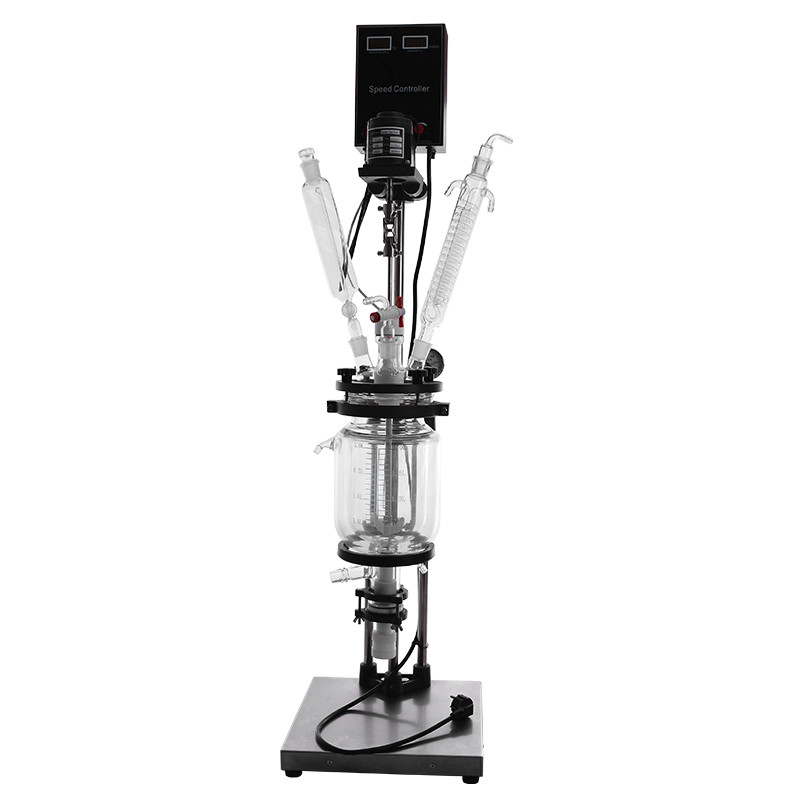

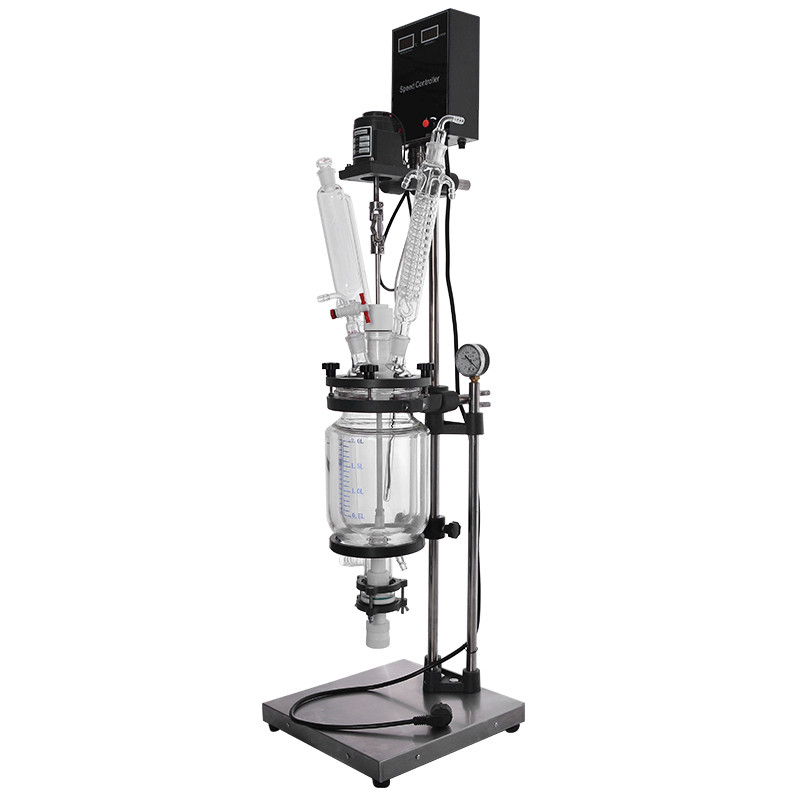

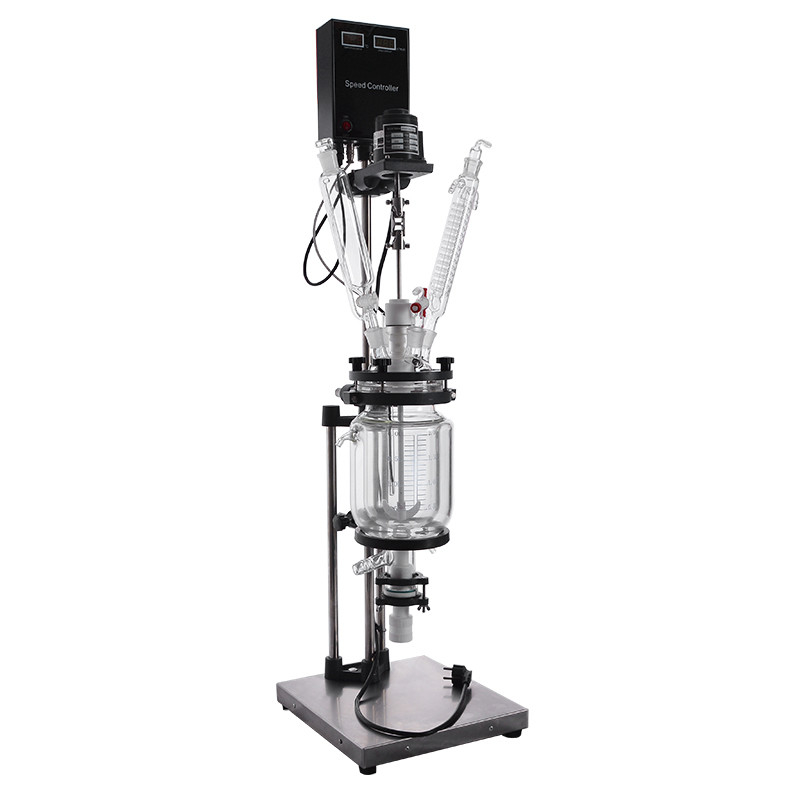

S212 2l Laboratory Double Layer Jacketed Glass Reactor

The S212-2L double layer glass reactor adopts the jacket design to satisfy chemical reactions at various temperatures. The overhead mechanical stirring has sufficient power, which can evenly stir high viscosity reactants.


S212 2l Laboratory Double Layer Jacketed Glass Reactor 0


Type

S212-2L

Glass material

GG-17

Main support

Stainless Steel

Reaction bottle volume

2L

Interlayer volume

0.8L

Number of reactor bottle

5

Discharge outlet liftoff height

30mm

Reactor reaction temperature

-80-250 degree

Vacuum degree

0.098Mpa

Stirring speed

0-800rpm

Stirring diameter of axis

8mm

Stirring power

40W

Voltage/Frequency

220V/50Hz

Boundary dimension

350*345*1000 mm

Package weight

32 KG

Rotate speed display mode

Digital display

Condenser

Vertical 40*400mm, 24# standard mouth

Stirring connecting method

Universal joint connecting






Products Description

S212 2l Laboratory Double Layer Jacketed Glass Reactor 1
S212 2l Laboratory Double Layer Jacketed Glass Reactor 2
S212 2l Laboratory Double Layer Jacketed Glass Reactor 3


S212 2l Laboratory Double Layer Jacketed Glass Reactor 4

Product Details


S212 2l Laboratory Double Layer Jacketed Glass Reactor 5


S212 2l Laboratory Double Layer Jacketed Glass Reactor 6


S212 2l Laboratory Double Layer Jacketed Glass Reactor 7

Corollary Equipment


S212 2l Laboratory Double Layer Jacketed Glass Reactor 8


S212 2l Laboratory Double Layer Jacketed Glass Reactor 9

Application Fields

Lanphan S212-2L double-layer glass reactor is an ideal equipment for modern chemistry sample, petrochemical engineering, pilot experiment, biological pharmacy and new material synthetic.


S212 2l Laboratory Double Layer Jacketed Glass Reactor 10

Recommend Products


S212 2l Laboratory Double Layer Jacketed Glass Reactor 11

Packing and Shipping




Packing
The products will be packaged by plastic wrap and foam, and then put into wooded cases.




Shipping
We will deliver goods by DHL, UPS, TNT, EMS and other international express. You can choose your own freight forwarder as well.


S212 2l Laboratory Double Layer Jacketed Glass Reactor 12


S212 2l Laboratory Double Layer Jacketed Glass Reactor 13
