Agitador De Glass Mixing Vessel
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 - 2 Units | Price : | $15,000.00 |
|---|---|---|---|
| Packaging Details : | lab chemical high pressure vacuum stirring reactor:carton or wooden case package, customized package is available. | Supply Ability : | 1000 Set/Sets per Month |
| Place of Origin: | Henan, China | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | ISO |
|
Detail Information |
|||
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Type: | Reaction Kettle | Voltage: | 220V/50Hz |
| Power(W): | 750W | Dimension(L*W*H): | 610*610*2500mm |
| Weight: | 190KG | Key Selling Points: | Long Service Life |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | United States | Showroom Location: | United States |
| Name: | 200l Glass Reactor | Interlayer Volume: | 28L |
| Voltage/Frequency(V/Hz): | 220V/50Hz | Glass Material: | GG-17 |
| Frame Material: | Stainless Steel | Pipe Fitting Material: | 304 Stainless Steel |
| Vacuum Degree: | 0.098Mpa | Stirring Speed: | 0-280rpm |
| Stirring Diameter Of Axis: | 15mm | Warranty: | One Year |
| Port: | Shanghai, Tianjin, Qingdao | ||
| High Light: | 200L Chemical Glass Reactor,190KG Chemical Glass Reactor,Nuclear Ozone Chemical Glass Reactor |
||
Product Description

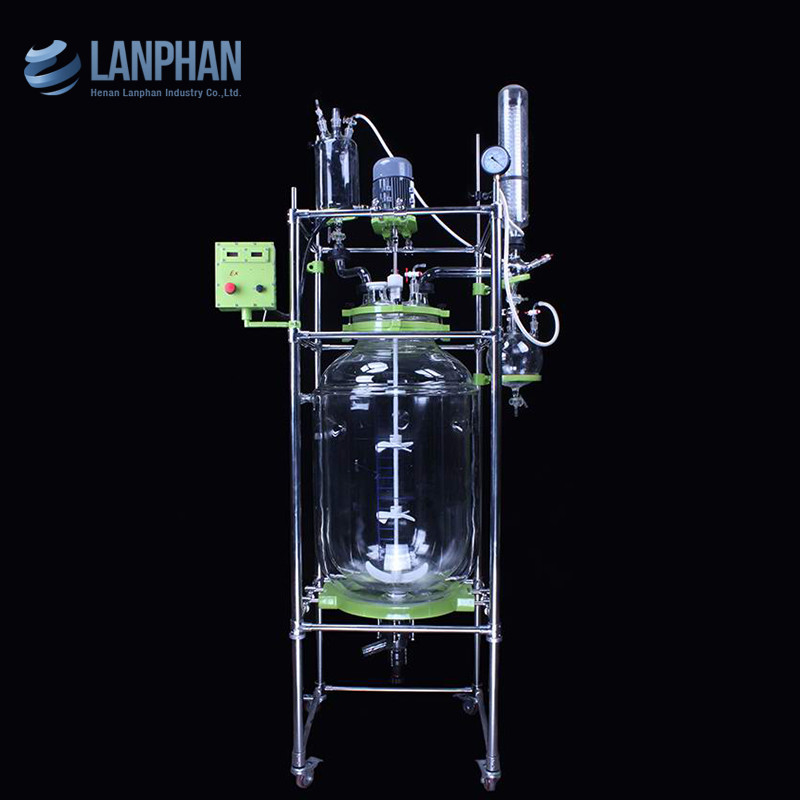

S212-200L Packed Column Nuclear Ozone Reactor Manufacturing 200L Glass Reactor
The S212-200L double-layer glass reactor is a bold and innovative one among existing glass reactors
of Lanphan which has combined advantages of similar products at home and abroad. The volume of
its reaction flask is 200L, and the interlayer volume is 28L. The diameter of the stirring shaft is 15mm, and
the stirring power is 750W.
It adopts double-layer glass design. The reaction solvent is put in the internal layer to do the stirring reaction, and different cold and heat sources (refrigerating fluid, hot water or oil) can be connected to the interlayer to do circulating heating or cooling reaction. Under the condition of the given constant temperature, the stirring reaction can be done under normal or negative pressure in a closed glass reactor, as well as the backflow and distillation of the reaction solution.
The S212-200L doublelayer glass reactor is an ideal pilot-plant and production equipment for modern fine chemical industry, biopharmaceuticals and new material synthesis. The glass reactor series mainly contains following parts: the double-layer glass reaction kettle, a set of component cover of the glass reactor, condensers, a constant voltage funnel, a frequency conversion controller, the rotary stirring and sealing system, the stainless steel frame system, etc.
Specifications of 200L Glass Reactor
| Basic Parameter | Type | S212-200L |
| Glass material | GG-17 | |
| Frame material | Stainless Steel | |
| Pipe fitting material | 304 Stainless Steel | |
| Move method | Universal castors with braking | |
| Reaction flask volume | 200L | |
| Interlayer volume | 28L | |
| Flange type oil in and out circulation port | Enter from low port, come out from high port | |
| Number of reactor bottle | 6 | |
| Discharge outlet liftoff height | 450mm | |
| Reactor reaction temperature | -80-250 degree | |
| Vacuum degree | 0.098Mpa | |
| Stirring speed | 0-280rpm | |
| Stirring diameter of axis | 15mm | |
| Stirring power | 750W1/5 | |
| Voltage/Frequency(V/Hz) | 220V/50Hz | |
| Boundary dimension(mm*mm*mm) | 1300*900*3400 | |
| Package weight(KG) | 190 | |
| Functional Configurations | Speed adjustment mode | Frequency control speed regulation |
| Electrical machine configuration | Low speed reinforcement electrical machine, speed ratio 5:1 | |
| Rotate speed display mode | digital display | |
| Temperature display mode | PT100 sensor digital display | |
| Sealing mode | PTFE sealing, ¢60 flange stirring mouth | |

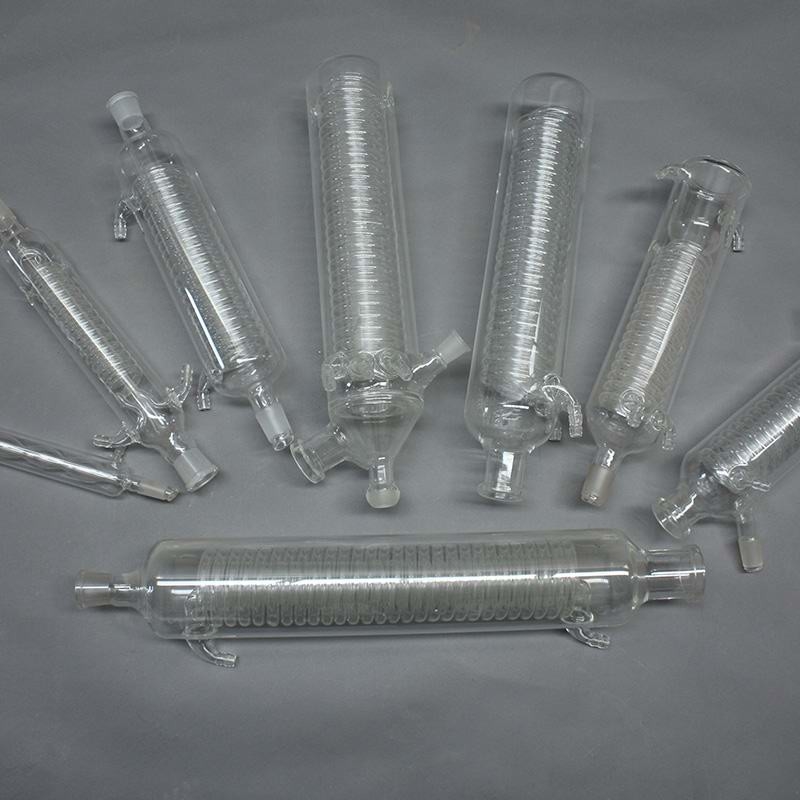

| Condenser | Vertical high efficiency double backflow condenser pipe 120*800mm | |
| Backflow (distillation) device | Backflow elbow is equipped with discharge switch, 50# ball milling mouth | |
| Receiving device | 10L receiving bottle | |
| Dropwise adding device | 2L dropwise bottle | |
| Depression device | 34# standard mouth reducing valve | |
| Temperature testing tube | 24# standard mouth | |
| Solid charging | ¢80 flange mouth with PTFE cover | |
| Discharging method | Inclined glass discharging valve, ¢80 flange mouth | |
| Vacuum display mode | Vacuum meter | |
| Stirring connecting method | Universal joint connecting | |

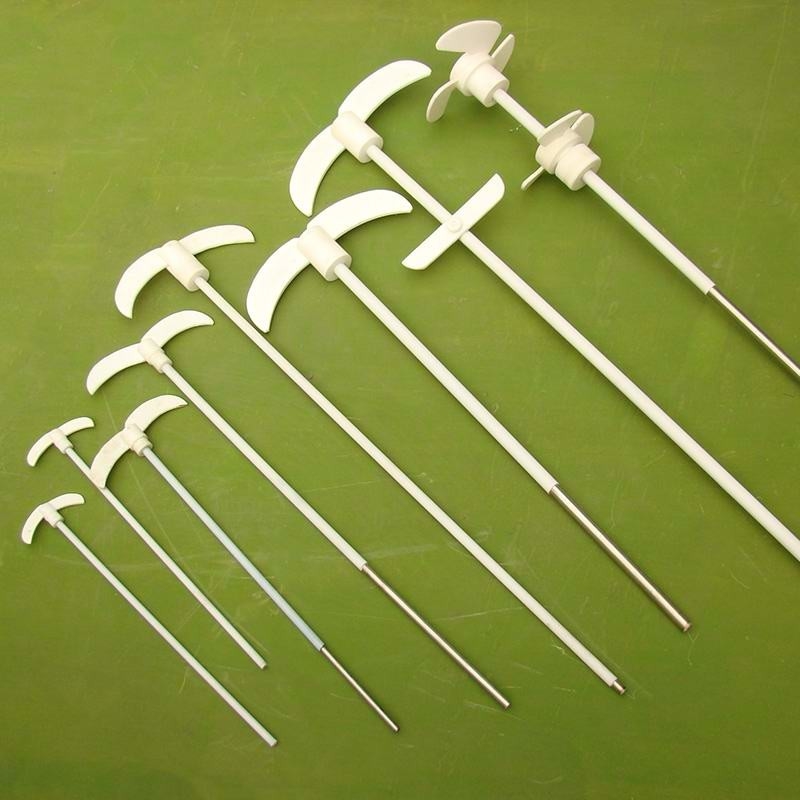

| Stirring bar | Anchor type stainless steel bar, covered with PTFE | |
| Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements. | ||
Packing List of 200L Glass Reactor
| Serial Number | Accessory Name | Quantity | Explanation |
| 1 | Double-layer reactor | 1 pc | Effective volume 200L |
| 2 | Stirring electrical machine | 1 pc | Rotate speed starting -1350 rotate(adjustable) |
| 3 | Speed controller | 1 pc | With digital display function(stepless speed regulation) |
| 4 | 5 mouth reactor cover | 1 pc | Matching use with reactor |
| 5 | Reactor shelf | 1 set | To support rector |
| 6 | Condenser | 1 pc | Distill and condensate |
| 7 | PTFE discharging device | 1 pc | Discharging(detachable) |
| 8 | Thermometer well | 1 pc | To put thermometer |
| 9 | Constant Voltage funnel | 1 pc | Charging in vacuum condition |
| 10 | PTFE stirring bar | 1 set | Inner diameter is made from stainless steel material, covering is made from PTFE anti-corrosion material |
| 11 | Distillation condensate elbow | 1 pc | Connect to reactor cover and condenser, used to separate and concentrate |
| 12 | Vacuum chock plug | 2 pcs | Used to seal |
| 13 | Vacuum tapping | 1 pc | Used to extract air in reactor so as to obtain vacuum |
| 14 | Circulating oil bath | 1 pc | Microcomputer control, providing high temperature heat source(with circulatory system; high temperature 300℃) |
Q: What kind of payment term do you accept?
A: Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
Q: what is the main material of the machine?
A: the main structure is made of stainless steel, aluminum alloy.
Q: what is the minimum quantity?
A:1 set at present.
