Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer

Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer

Solvothermal Lab Glass Reactor

350*410*1250mm Lab Glass Reactor

ISO Lab Glass Reactor

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

S212 - series

Contact Us
Request A Quote
Product Details
Product Name:
Lab Glass Reactor
Automatic:
Yes
Type:
Reaction Kettle, Solvothermal Reactor
Voltage:
220V/50Hz
Reactor Capacity:
10L-200L
Vacuum Degree:
0.098Mpa
Glass Material:
GG-17
Stirring Speed:
0-800rpm
Material:
Glass
Condation:
New
Feature:
High Productivity
Warranty:
1 Year
Highlight:

Solvothermal Lab Glass Reactor

,

350*410*1250mm Lab Glass Reactor

,

ISO Lab Glass Reactor

Payment & Shipping Terms
Minimum Order Quantity
1 - 2 Units
Price
$5625-$15350
Packaging Details
Wooden Box or Customized Packing
Delivery Time
5-8 work days
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 Sets Per Month
Product Description

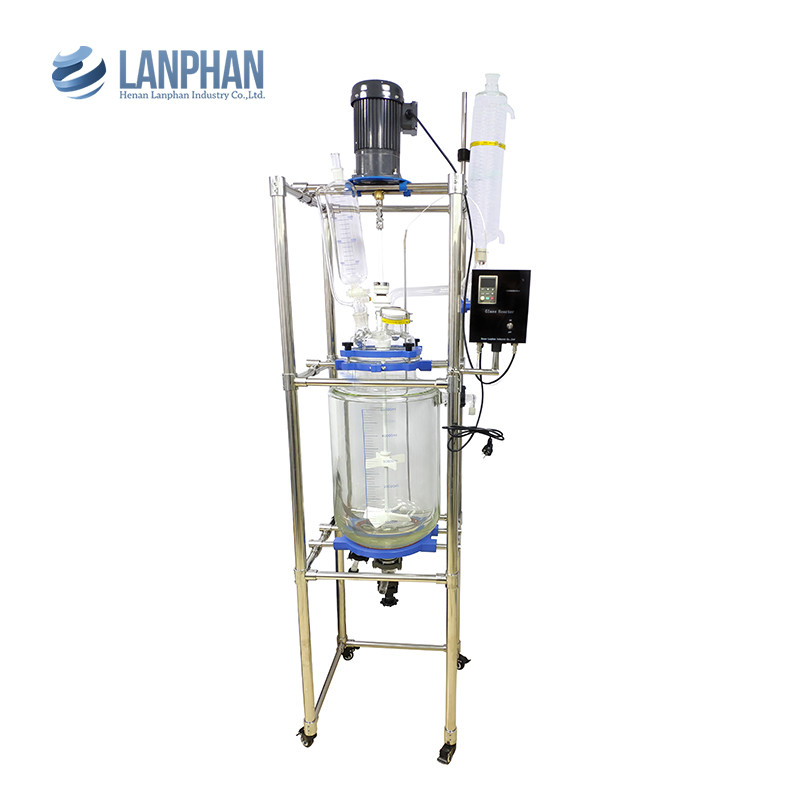

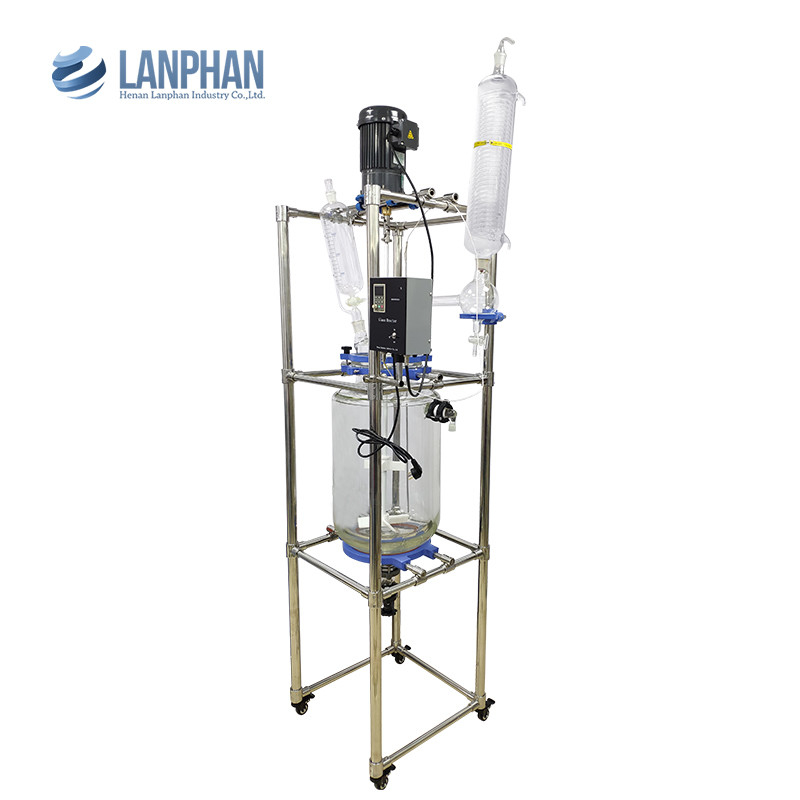

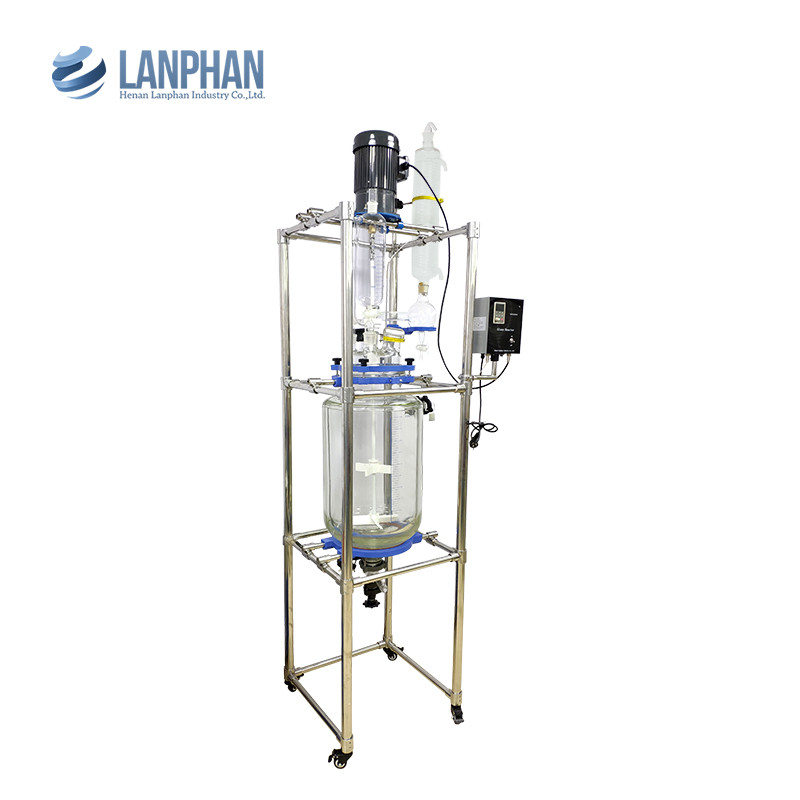

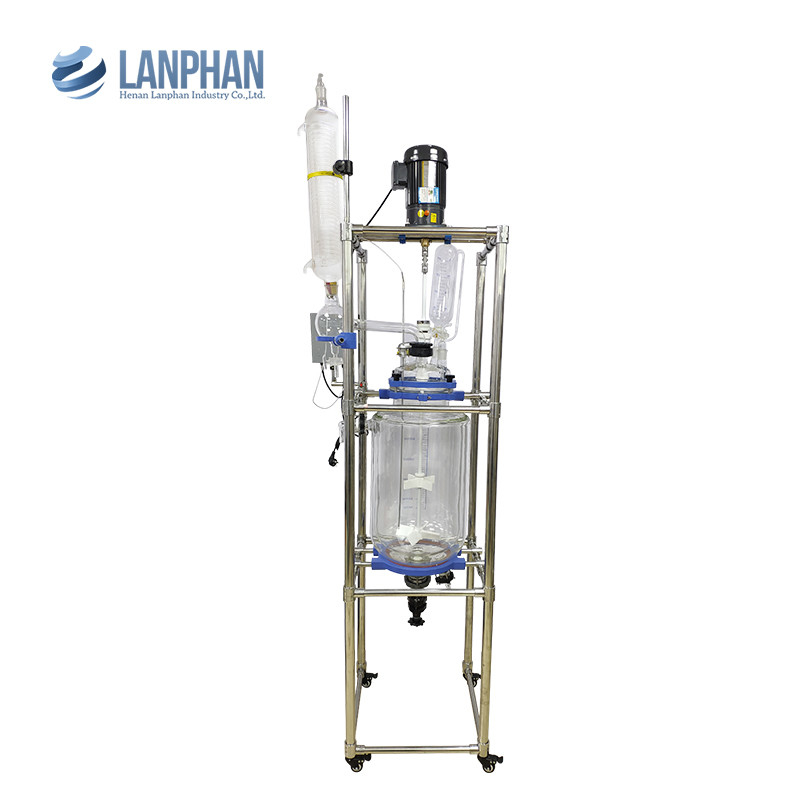

Lab Glass Reactor Solvothermal Kettle Chemical Reaction Double Layer



Description of Glass Reactor



Double-layer glass reactor is designed for the double glazing that enters the inner layer of the reaction for stirring reaction.The sandwich can transfer various cold and hot sources (frozen liquid, hot water or hot oil) for cyclic heating or cooling reaction.

Isothermal conditions can be set in the sealed glass reactor as required. Under normal pressure or negative pressure, the reaction solution of stirring, reflux and distillation is used for modern fine chemical engineering, biological pharmaceutical test, production equipment and ideal synthesis of new materials.

Our company's reactor has a series of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L and 150L, which integrates the advantages of similar domestic products, customers’ suggestions and experience.



Feature of Glass Reactor



1. Adopting Teflon composite seal, which can maintain a high degree of vacuum.
2. Efficient condenser to ensure high recovery.
3. The full set of GG3.3 high borosilicate glass, which has a good chemical and physical performance.

4. Hot oil passes through the loop at the interface between glass layers at high temperature.

5. The reaction can be carried out at low temperature through the coolant.

6. It can also be connected to tap water, which allows rapid heat loss.

7. Dispersing material flange mouth and Teflon valve makes the container has no dead angle, which is convenient for the discharge of solid materials.

8. The mixing motor adopts digital frequency conversion control and is equipped with a torque.

9. Reasonable structure and material stress.The mechanical parts consist of stain- less steel and aluminum parts.

10. The glass is suitable for various high temperature and high chemical properties of borosilicate glass.

11. Electronic components: the main components are imported components.



Installation of Glass Reactor



Stainless steel frame assembly is in accordance with the standard frame, and do not clamp any internal hexagonal stainless steel screws.

Adjust the low position of the stainless steel frame to the standard of the actual ground leveling and tighten all the stable hex screws.

The pulley at the bottom of the locking frame is mounted on the main body of the reactor. This action requires two people to work together.

Mixer motor parts, and do not clamp the hex screw.

Stir the sealing plug and stir bar, unscrew the tetrafluoroethylene card cover, and fix the stirring seal plug on the cover flange stirring port.

Install fixed kettle cover card, increase stir bar depth.

The whole screw and the card are fixed tightly, and the condenser and the constant pressure funnel stainless steel support rod are installed.

The reflux condensation bracket is installed on the condenser with the reflux pipe installed on the kettle cover.The constant pressure funnel cover is installed in the kettle, the thermometer sleeve and the glass vent valve are installed.

Digital converter installation location.



Parameter of Glass Reactor



Product name Double-layer reactor
Glass material Gg-17
Frame material Stainless steal
Pipe material 304stainless steel
Mobile mode Universal wheel with brake
Reaction bottle volume 10L20L 30L 50L 100L
Interlayer capacity 6L 8L 10L 13L 18L
Number of kettle lid ports Six mouths
Discharge port height 450mm
Kettle reaction temperature (-80-250 )degrees
Vacuum degree 0.098mpa
Stirring speed 0-450rpm
Stirring shaft diameter 15mm
Stirring power 90w1/3 120w1/3 250w1/3
Voltage/frequency(v/hz) 220v/50hz



Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer 0Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer 1Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer 2Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer 3Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer 4Lab Glass Reactor Solvothermal Kettle Chemical Reaction double layer 5
