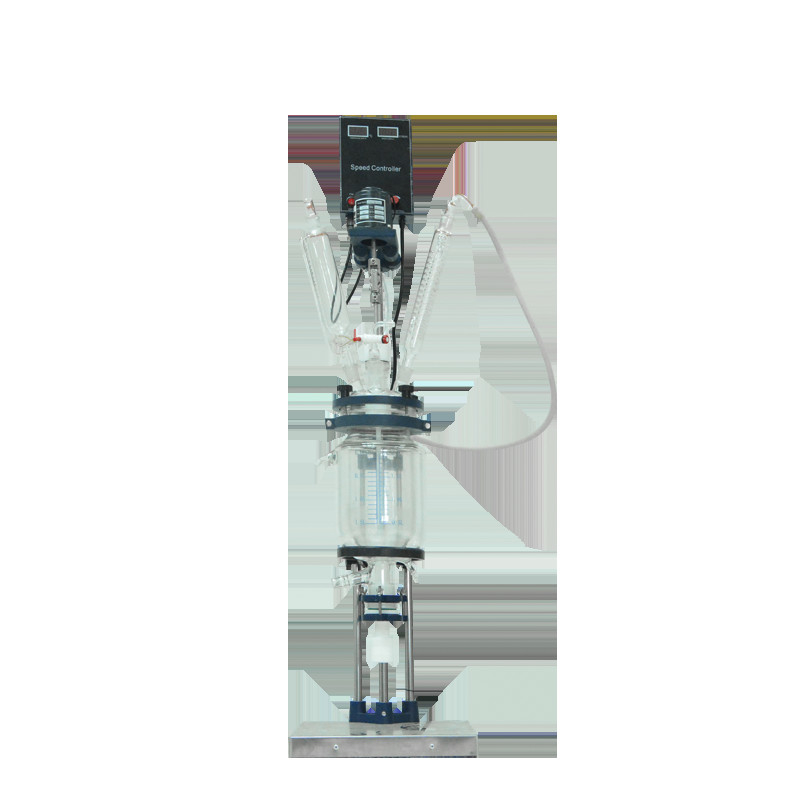

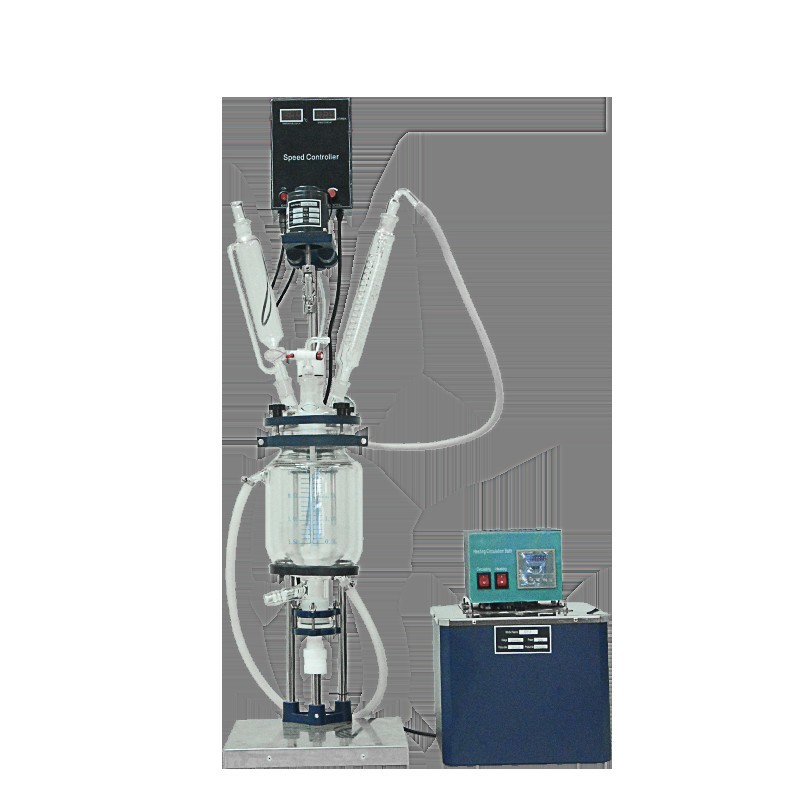

Agitador De Glass Mixing Vessel
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 - 2 Units | Price : | $1,000.00 |
|---|---|---|---|
| Packaging Details : | Packing of Bioreactor: carton or wooden case package, customized package is available. | Supply Ability : | 3000 Set/Sets per Month |
| Place of Origin: | Henan, China | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | CE ISO |
|
Detail Information |
|||
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Type: | Reaction Kettle, Chemical Mixing Reactor | Voltage: | 220V/50Hz |
| Power(W): | 90W | Dimension(L*W*H): | 350*410*1250mm |
| Weight: | 38KG | Warranty: | One Year |
| After-sales Service Provided: | Overseas Third-party Support Available, Video Technical Support, Online Support | Reactor Capacity: | 5L |
| Vacuum Degree: | 0.098Mpa | Glass Material: | GG-17 |
| Main Support: | Stainless Steel | Interlayer Volume: | 0.8L |
| Number Of Reactor Bottle: | 5 | Stirring Speed: | 0-800rpm |
| Port: | Shanghai, Tianjin, Qingdao | ||
| High Light: | Glass Lined Chemical Mixing Reactor,5 Liter Chemical Mixing Reactor,5 Liter Glass Lined Reactor |
||
Product Description
Factory Bioreactor Prices Glass Lined Chemical Mixing Reactor

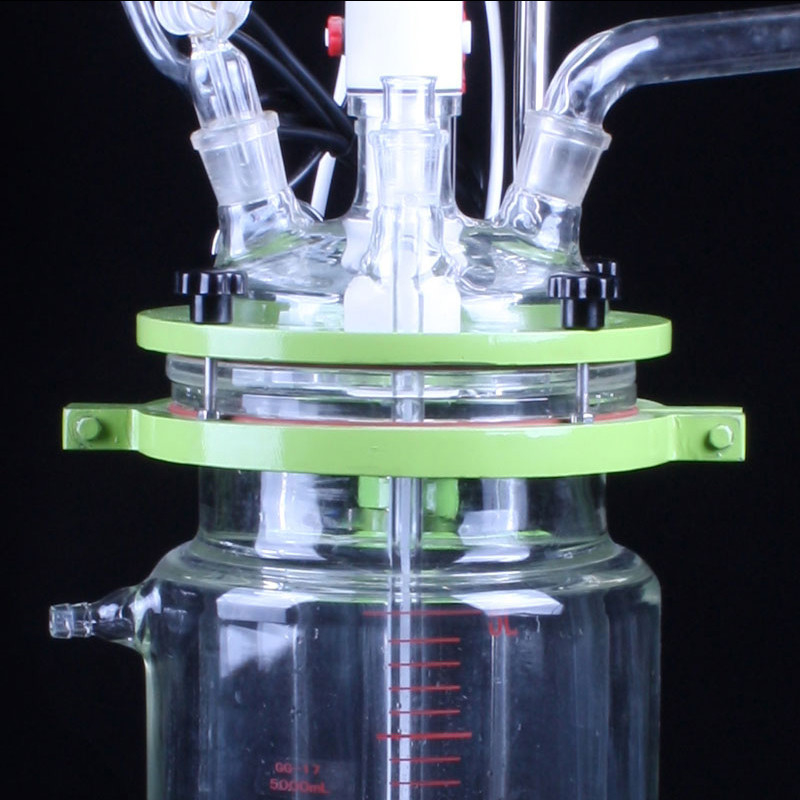

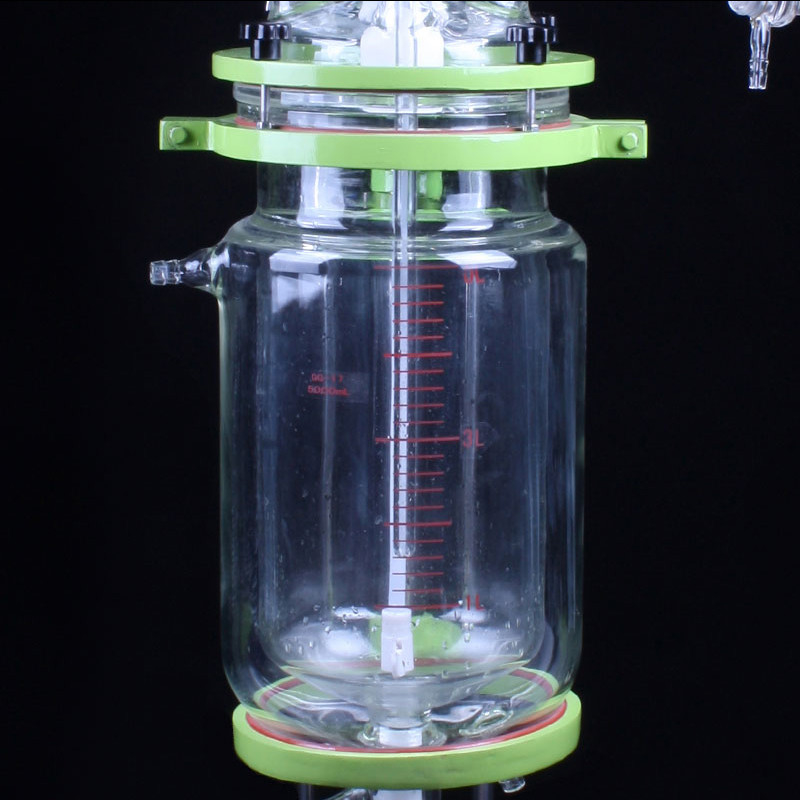

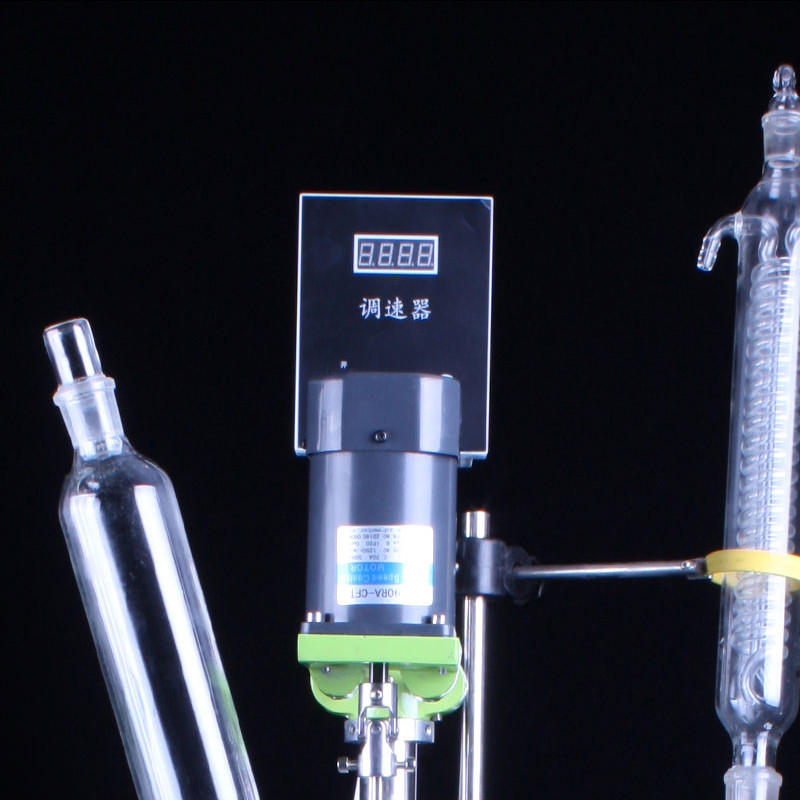

The reactor is especially suitable for the cannabis extraction process. The reactor body is primarily made of the high borosilicate glass(GG-17 material) and PTFE, possessing both excellent chemical and physical properties. The transparent flask makes it easy to observe reaction liquid material. The stainless steel stirring rod is covered with PTFE, applicable for various solvent stirring without corrosion and pollution. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force, no spark and long service life. Sealed by PTFE component and fluorous rubber, it is capable of maintaining higher vacuum degree and longer service life. This equipment has speed controller, and it can set rotary speed by speed governing turn-knob, which is perceptual intuition and convenient. This equipment has vacuum display function, which can select the best working vacuum degree for low boiling point material. And PTFE inclined discharge valve makes it so convenient to recycle solvent.
| Basic Parameter | Type | S212-10L |
| Glass material | GG-17 | |
| Frame material | Stainless Steel | |
| Pipe fitting material | 304 Stainless Steel | |
| Move method | Universal castors with braking | |
| Reaction flask volume | 10L | |
| Interlayer volume | 6L | |
| Flange type oil in and out circulation port | Enter from low port, come out from high port | |
| Number of reactor bottle | 6 | |
| Discharge outlet liftoff height | 450mm | |
| Reactor reaction temperature | -80-250 degree | |
| Vacuum degree | 0.098Mpa | |
| Stirring speed | 0-450rpm | |
| Stirring diameter of axis | 12mm | |
| Stirring power | 90W | |
| Voltage/Frequency(V/Hz) | 220V/50Hz | |
| Boundary dimension (mm*mm*mm) | 520*520*2000 | |
| Package Dimension(mm*mm*mm) | 1370*590*800 0.65m³ | |
| Package weight(KG) | 68 | |
| Functional Configurations | Speed adjustment mode | Electric stepless speed regulation |
| Electrical machine configuration | Low speed reinforcement electrical machine, speed ratio 3:1 | |
| Rotate speed display mode | Liquid crystal digital display | |
| Temperature display mode | PT100 sensor digital display | |
| Sealing mode | PTFE sealing, ¢50 flange stirring mouth | |
| Condenser | Vertical high efficiency double backflow condenser pipe 100*670mm, 40# standard mouth | |

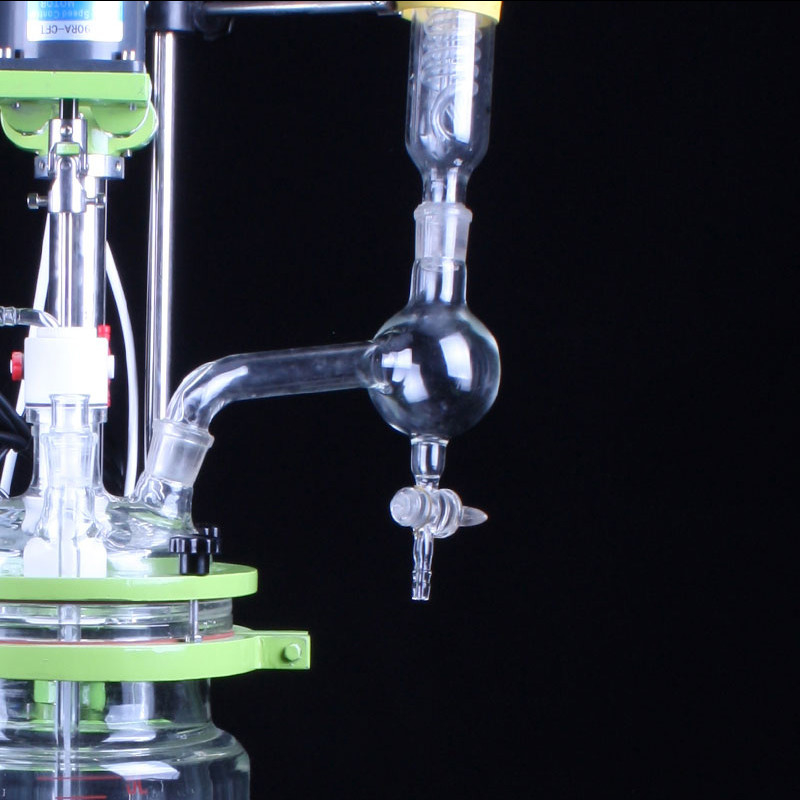

| Backflow (distillation) device | Backflow elbow is equipped with discharge switch, 50# ball milling mouth | |
| Dropwise adding device | 1L constant voltage funnel, 40# standard mouth | |
| Depression device | 34# standard mouth reducing valve | |
| Temperature testing tube | 24# standard mouth | |
| Solid charging | ¢80 flange mouth with PTFE cover | |
| Discharging method | Inclined glass discharging valve, ¢80 flange mouth | |
| Vacuum display mode | Vacuum meter | |
| Stirring connecting method | Universal joint connecting | |
| Stirring bar | Anchor type and push type stainless steel bar, covered with PTFE | |
| Optional Configurations | Main body support | Tray type |
| Collecting device | Collection bottle | |
| Anti-Explosion | Anti-explosive frequency changer, anti-explosive electric machine EX180W 0-1400 rotate | |
| Frame part | Spraying plastics pr PTFE | |
| Heat insulation device | Cotton insulation | |
| Sealing part | Ceramic bearing, mechanical sealing | |
| Condenser | Horizontal type condenser can reduce overall height | |
| Reactor cover | Custom-made PTFE reactor cover | |
| Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements. | ||
Packing List of Cheap Updated 10L Lab Chemical Reactor for Fermentation
| Machine Part | Glass Part | ||||
| Stainless steel frame | 1 set | Vessel body | 1 pc | ||
| Main upright | 1 set | Vessel cover | 1 pc | ||
| Anti-explosion electric machine | 1 set | Condenser | 1 pc | ||
| Anti-explosion electric box | 1 set | Constant voltage funnel | 1 pc | ||
| Cardan joints | 1 pc | Temperature tube | 1 pc | ||
| Bottleneck ring, cover | 1 set | 29# hollow plug | 1 pc | ||
| Stirring rod | 1 pc | 34# reducing valve | 1 pc | ||
| Stirring F4 | 1 set | Backflow bend | 1 pc | ||
| Discharge valve | 1 set | ||||
| Flange plate of discharge valve | 1 set | ||||
| YZ-100 vacuum meter | 1 pc | ||||
| Bottle backing ring | 1 pc | ||||
| Backing ring of condenser | 1 pc | ||||
| Clamp of condenser | 1 set | ||||
| Black nut | 1 set | ||||
| F4 cover of solid feeder mouth | 1 set | ||||
| Clamp to fix F4 cover | 1 pc | ||||
| Spare Accessories | |||||
| Instruction book | 1 pc | ¢4,¢5 allen wrench | 1 pc each | ||
| Warranty card | 1 pc | ¢48 ºring | 1 pc | ||
| Certificate of quality | 1 pc | 8A protective pipe | 1 pc | ||
| Packing list | 1 pc | ||||
| The final explanation right of this instruction book belongs to our company, if product has change, please subject to real products, we will not change the instruction book. | |||||
Q: What kind of payment term do you accept?
A: Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
Q: What’s the loading capacity of double-layer glass reactor?
A: Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.
Q: What’s the difference between single-layer and double-layer glass reactor?
A: Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
