Lab Glass Reactor 50L single Layer

Minimum Order Quantity : 1 set Price : $1800
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: F-50L

Detail Information

Product Name: Single Layer Glass Reactor Glass Material: GG-17
Pot Shell Material: Coating Anticorrosive Vacuum Degree: 0.098Mpa
Stirring Speed: 0-450rpm Stirrng Trunnion: 12mm
Stirring Power/Voltage: 220V/50Hz Heating Power/voltage: 8KW 80V/50Hz
High Light:

Hydrothermal Lab Glass Reactor

,

100 liter Lab Glass Reactor

,

hemical Lab Glass Reactor

Product Description

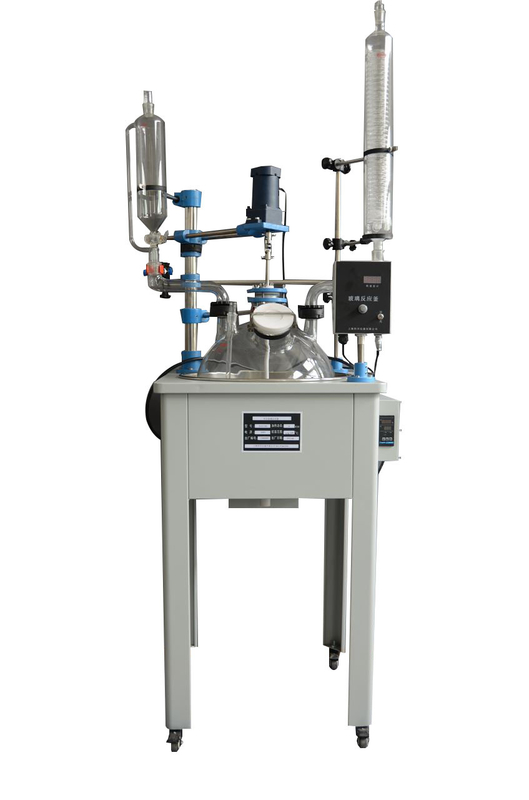

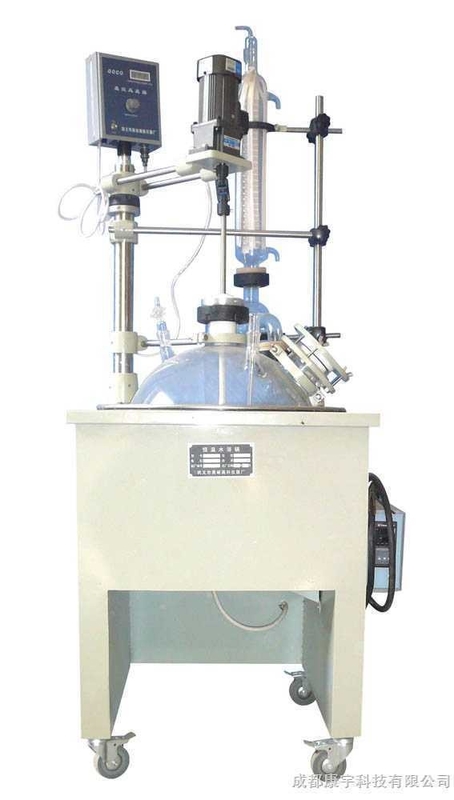

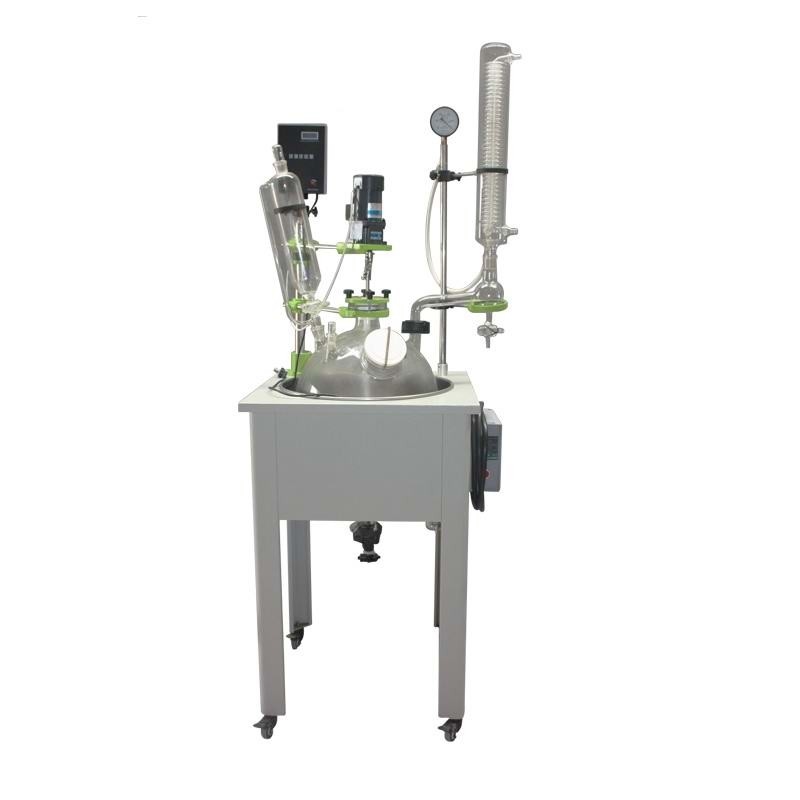

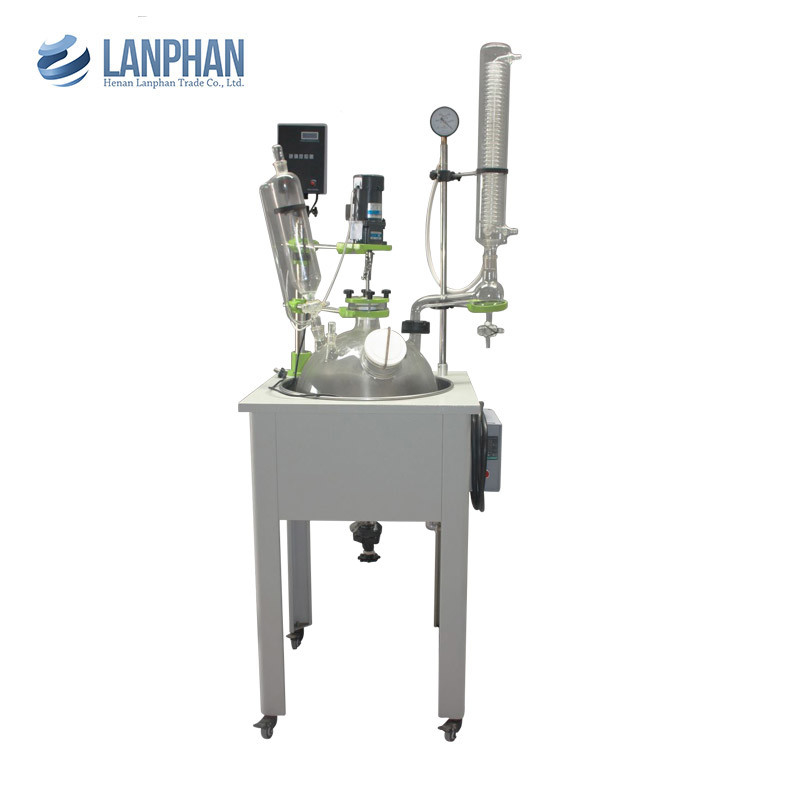

Lab Glass Reactor 50L Single Layer



Single Layer Glass Reactor Parameter



Product Name Single Layer Glass Reactor
Product Model F-50L
Glass Material GG-17
Moving Mode with brake
Reactor Flask Volume 50L
Reactor Temperature ’-80-250℃
Vacuum Degree 0.098Mpa
Stirring Speed 0-450rpm
Stirring Power/voltage 120W1/3 220V/50Hz
Heating Power/voltage 8KW 380V/50Hz
Dimension(mm*mm*mm) 800*640*2200
Gross Weight(KG) 90



Single Layer Glass Reactor Feature



1. Reactor body adopts high-borosilicate glass(GG-17 materials), which has superior physical and chemical performance, and is convenient for user to observe reacting materials.​



2. The shell of the heating pot is sprayed with plastic and anti-corrosion, and the inner liner is made of high quality stainless steel, which is durable.



3. Rod and other accessories adopt stainless steel and aluminium alloy, which are elegant and secure.



4. Stainless stirring rod is coated with PTFE, which applies in multiple solvents stirring and has no pollution and corrosive resistance.



5. Speed reducing and power increasing motor is stirring, which has characteristics of running smoothly, large force moment, no-spark and long life.



6. PTFE components and mechanical seal, proprietary technology, which can ensure good vacuum and long service life.



7. Constant temperature oil(water) bath can control temperature intelligently, and displays oil or water temperature in bath. Temperature control is realized by K sensor, which is accurate. When water temperature reached set temperature, controller will cut heating source automatically. When it is lower, controller will connect heating source automatically so that water temperature is constant in tank.



8. Speed controller can digitally display rotary speed and temperature. Rotary speed can be set through speed regulation knob, which is convenient, and assembled with temperature measurement probe in reactor(PT100).



9. The whole structure is compact and reasonable. Universal wheels can be moved bodily and operated conveniently.



10. Glass discharging valve can reduce dead angle in stirring and is convenient for discharging.



Lab Glass Reactor 50L single Layer 0Lab Glass Reactor 50L single Layer 1Lab Glass Reactor 50L single Layer 2Lab Glass Reactor 50L single Layer 3

Lab Glass Reactor 50L single Layer 4

Lab Glass Reactor 50L single Layer 5

Lab Glass Reactor 50L single Layer 6

Lab Glass Reactor 50L single Layer 7Lab Glass Reactor 50L single Layer 8

Lab Glass Reactor 50L single Layer 9Lab Glass Reactor 50L single Layer 10
