5L Lab Glass Reactor

Minimum Order Quantity : 1 - 2 Units Price : $1,005.00
Packaging Details : Packing of 5L Science Glass Reactor: carton or wooden case package, customized package is available. Supply Ability : 3000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO

Detail Information

Condition: New Automatic Grade: Automatic
Type: Reaction Kettle, Double Jacketed Vessel Voltage: 220V/50Hz
Power(W): 90W Dimension(L*W*H): 350*410*1250mm
Weight: 38KG Warranty: One Year
After-sales Service Provided: Overseas Third-party Support Available, Video Technical Support, Online Support Reactor Capacity: 5L
Vacuum Degree: 0.098Mpa Glass Material: GG-17
Main Support: Stainless Steel Interlayer Volume: 0.8L
Number Of Reactor Bottle: 5 Stirring Speed: 0-800rpm
Port: Shanghai, Tianjin, Qingdao
High Light:

5L Lab Glass Reactor

,

5L Jacketed Glass Reactor

,

90W Lab Glass Reactor

Product Description

Type S212-5L
Glass material GG-17
Frame material Stainless Steel
Pipe fitting material 304 Stainless Steel
Move method Universal castors with braking
Number of reactor bottle 6
Discharge outlet liftoff height 450mm
Reactor reaction temperature -80-250 degree
Vacuum degree 0.098Mpa
Stirring speed 0-450rpm
Stirring diameter of axis 12mm
Stirring power 90W
Voltage/Frequency(V/Hz) 220V/50Hz
Boundary dimension (mm*mm*mm) 520*520*2000
Package Dimension(mm*mm*mm) 1370*590*800 0.65m³
Package weight(KG) 68





The glass reactor is generally used in the modern fine chemicals, biopharmaceuticals, scientific research experiments and other industries, especially applicable for the cannabis extraction process.  It can be used together with a vacuum pump, a chiller and a water or oil bath to form a complete vacuum constant temperature experimental environment. The glass reactor has a great number of advantages, as follows.



1. The reactor body adopts high borosilicate glass(GG-17 material), possessing excellent chemical and physical properties. And the transparent flask makes it easy to observe the reaction liquid material.


2. The stainless steel stirring rod is covered with PTFE, applicable for various solvent stirring without corrosion and pollution.


3. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force, no spark and long service life.


4. Sealed by PTFE component and fluorous rubber, it is able to maintain higher vacuum degree and longer service life.


5. This equipment has speed controller, and it can set rotary speed by speed governing turn-knob, which is perceptual intuition and convenient.


6. This equipment has vacuum display function, meaning that the best working vacuum degree for low boiling point material can be selected.


7. The PTFE inclined discharge valve makes it so convenient to recycle solvent.

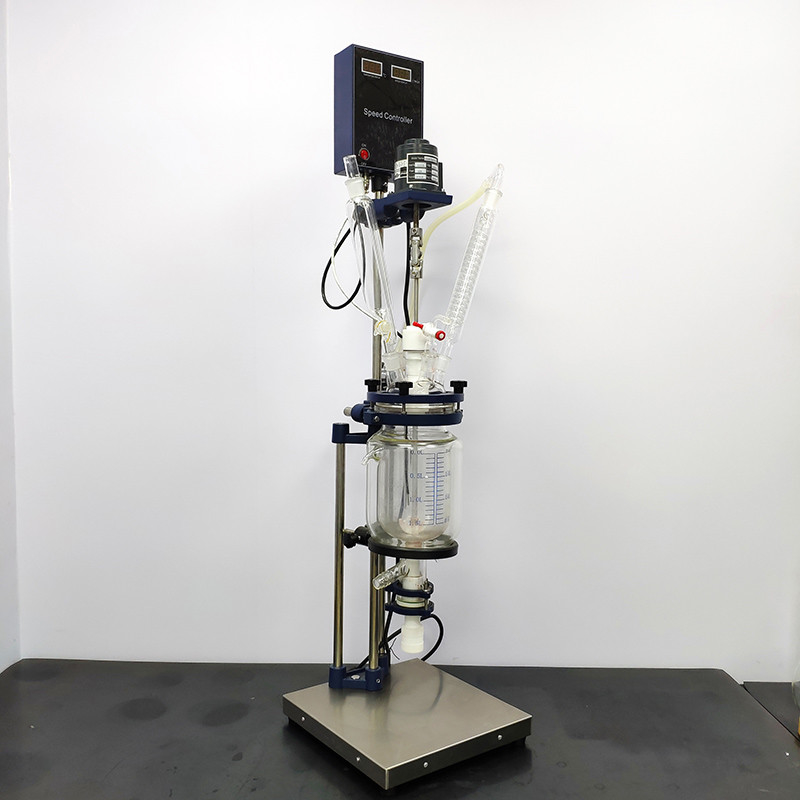

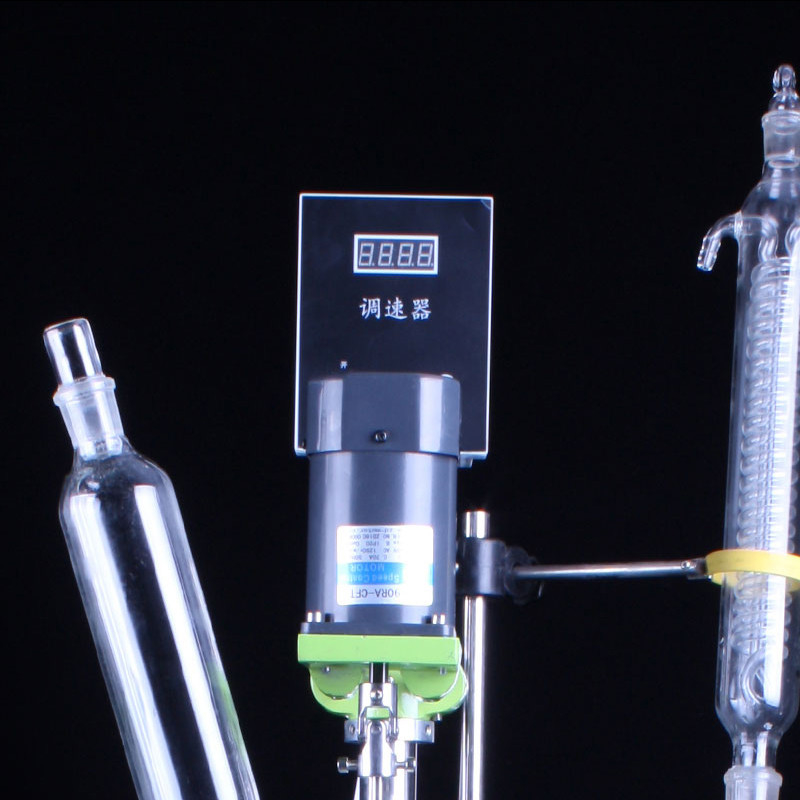

5L Lab Glass Reactor 05L Lab Glass Reactor 15L Lab Glass Reactor 2

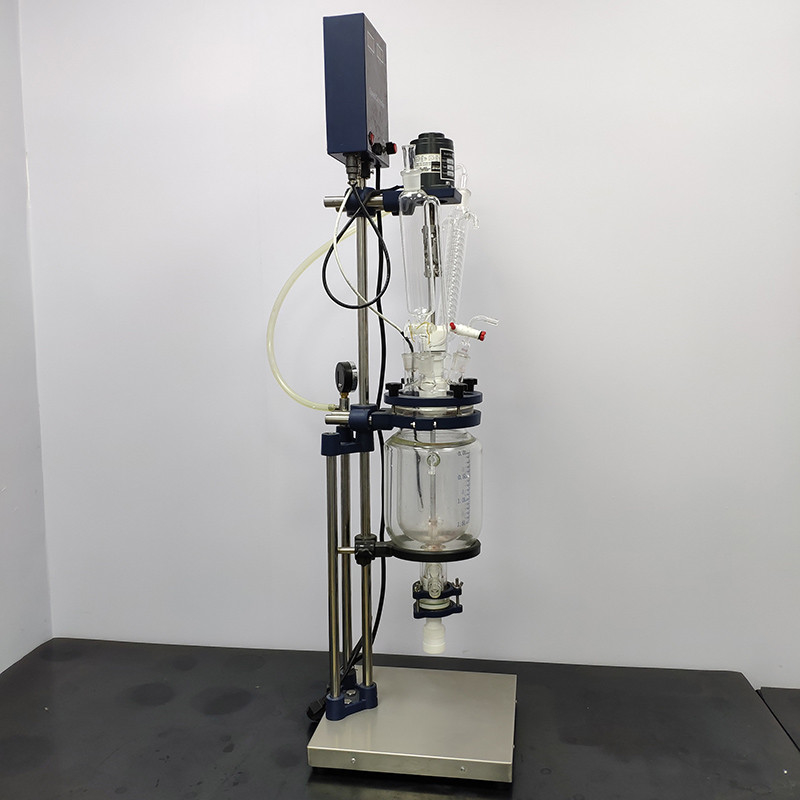

5L Lab Glass Reactor 3

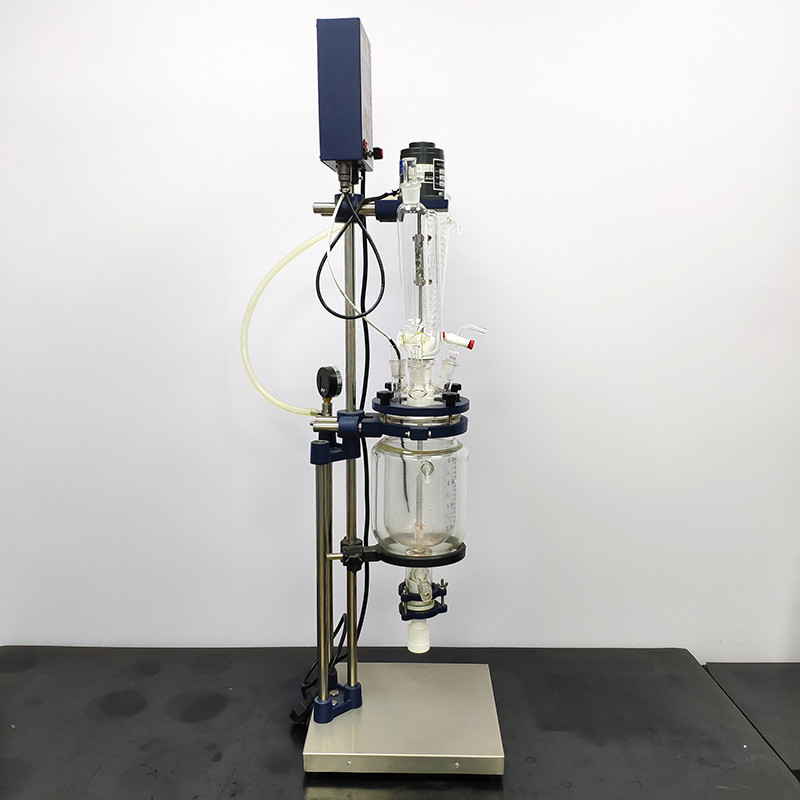

5L Lab Glass Reactor 4

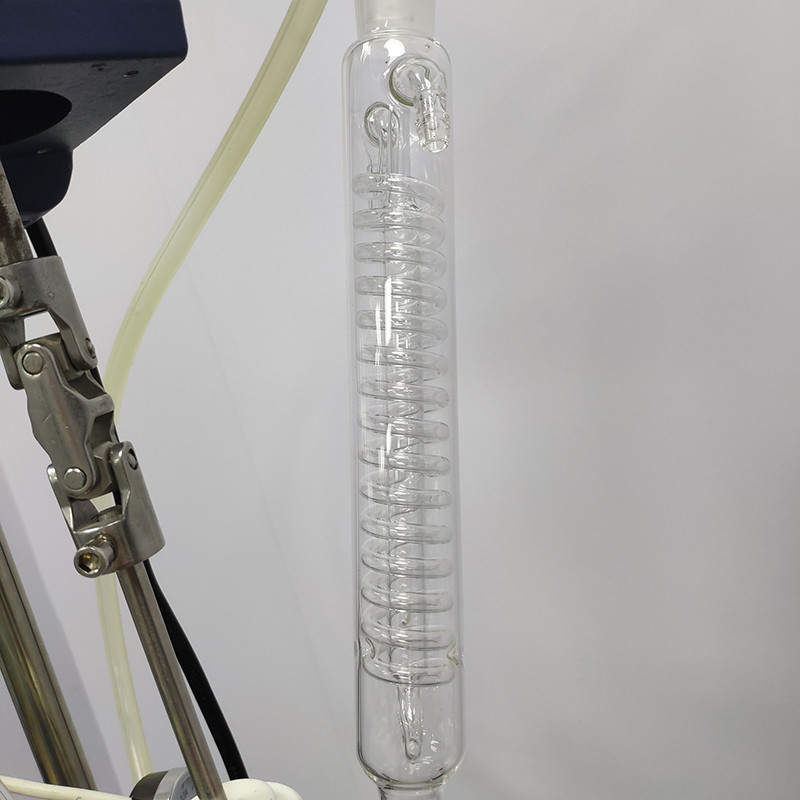

5L Lab Glass Reactor 5

For more information, please contact us

Contact Supplier

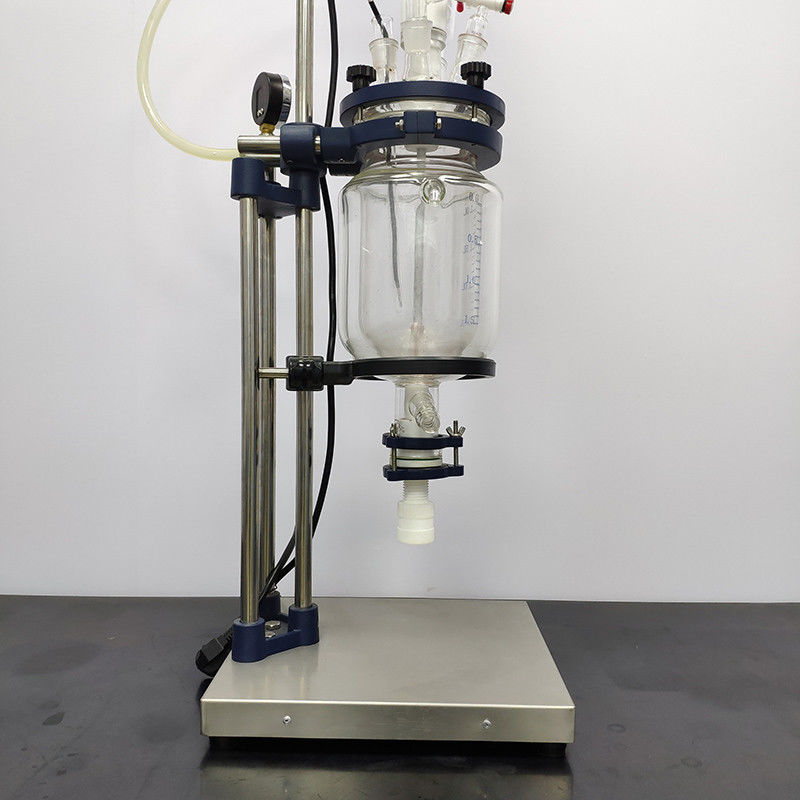

5L Lab Glass Reactor 65L Lab Glass Reactor 7
