Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE

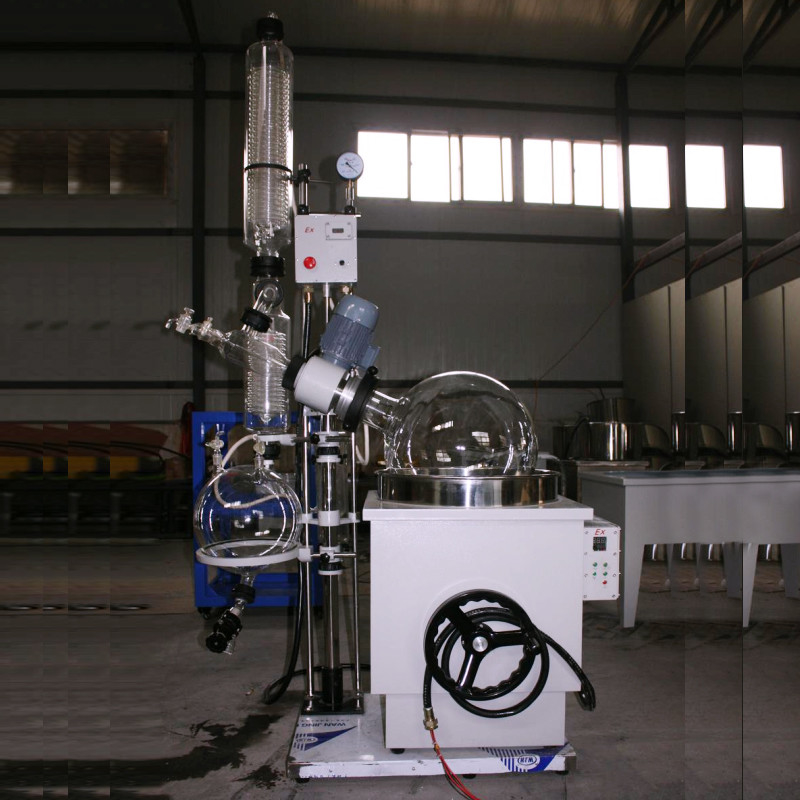

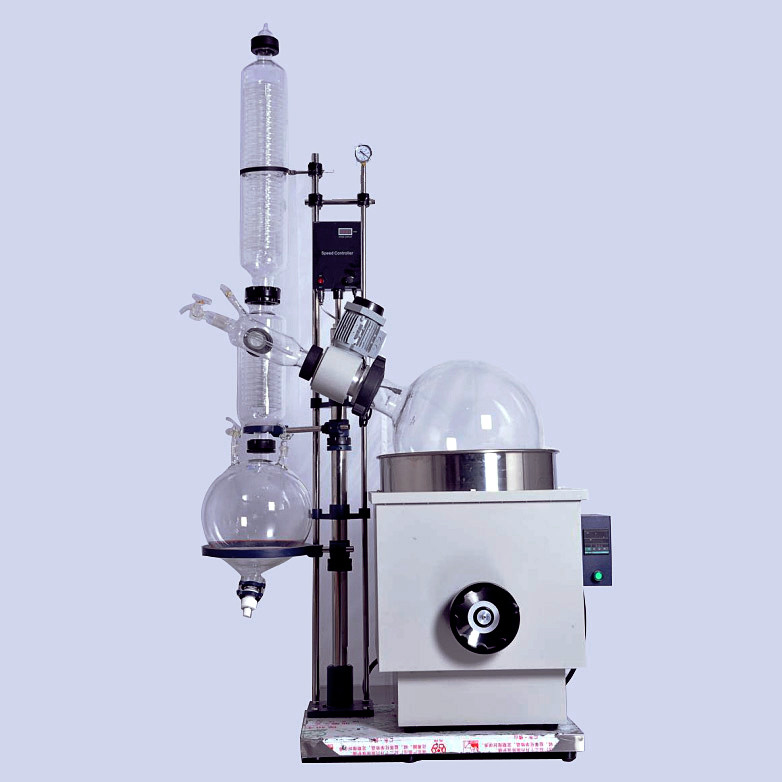

The rotary evaporator is regarded as the essential equipment for the processes of evaporation, concentration, crystallization, drying, separation, and solvent recovery in many fields, and it is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure.
Basic Parameter | Type | RE-5003 |
Glass Material | GG-17 | |
Support Material | stainless steel | |
Shell Material | Antisepsis Plastic Spraying 710*620*700 mm | |
Inner Container Material | stainless steel 500*220 mm | |
Baseboard Size | 804*574 mm | |
Volume of Rotary Flask | 50L ¢125 flange aperture | |
Volume of Receivling Flask | 20L ¢60 flange aperture | |
Vacuum Degree | 0.098Mpa | |
Rotating Power | 180W | |
Rotating Speed | 0-110rpm | |
Heating Power | 8KW | |
Temperature Control Range of Bath Kettle | 400℃ | |
Temperature Accuracy | ±1℃ | |
Voltage/Frequency (V/Hz) | 220V/50Hz | |
Up and Down Distance | 180mm | |
Shape Size(mm*mm*mm) | 1520*620*2470 mm | |
Package Weight (KG) | 170 | |
Function Allocation | Speed Adjustment Mode | Electrodeless Speed Regulation |
Rotating Speed Display Mode | Digital Display | |
Temperature Display Mode | Digital Display K Type Sensor | |
Temperature Control Mode | Smart Temperature Control | |
Sealing Mode | PTFE Sealing | |
Condenser | Vertical efficient condenser, main condenser 160*840, assistant condenser 160*530 | |
Up and Down Mode | Manual Up and Down of Bath Kettle | |
Continuous Charging | 40# Standard Aperture Feeding Valve | |
Vacuum Display Mode | Vacuum Meter | |
Continuous Collecting | Check valve control | |
Charging Mode | PTFE Charging valve, ¢60 flange aperture | |
Optional Equipping | Up and Down Mode | Automatic Up and Down |
Collecting Device | Double Recycling bottle | |
Anti-explosion | Anti-explosion Frequency Changer, Anti-explosion Dynamo EX120W | |
Frame Part | Plastic Spraying or PTFE Spraying | |
Bath Kettle Material | whole 304 stainless steel | |
Main Characteristics:
1.The main support is made of stainless steel and aluminum alloy, with a reasonable structure and exquisite material.
8. The inner pot adopts high quality stainless steel 304, which is anti-corrosion and durable. The outer layer of the pot is covered with silicone layer, which is safer to use at high temperature.

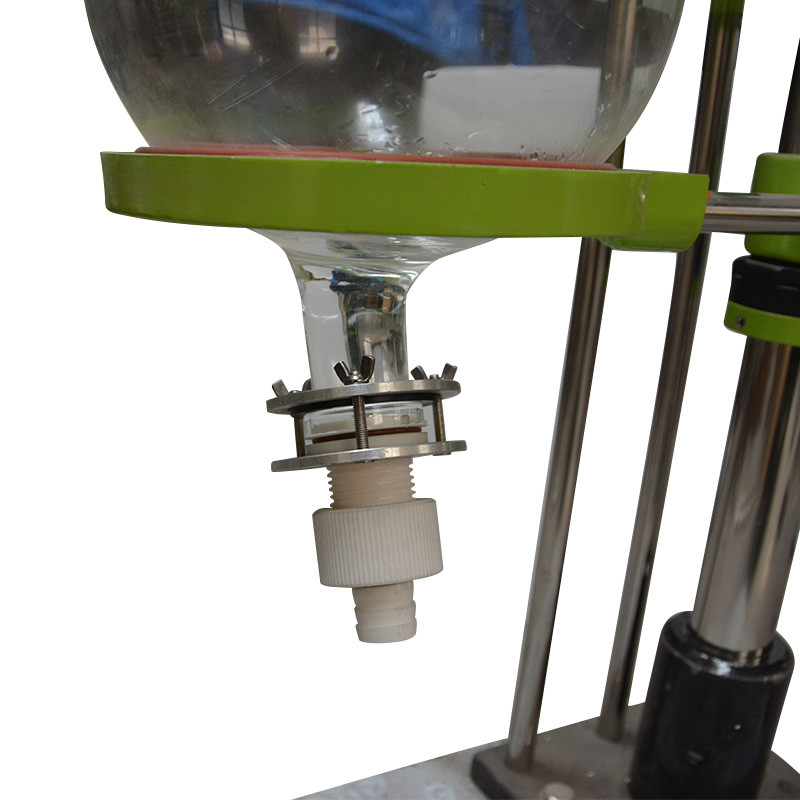

9. The receiving flask has a lower discharge port, which can recycle and discharge evaporated extract easily.
10. The check valve for controlling can realize the continuous feeding. The vacuum can be switched when the equipment is operating.
Q: What’s the difference between vertical and inclined condenser?
A: There is no difference in essential. But the vertical condenser is gradually popular due to its small occupation and convenience for transportation and use. Most high-capacity equipment adopts the vertical condenser.
Q: What factor decides the working efficiency of rotary evaporator price?
A: Generally, the steam temperature, vacuum degree and cooling water temperature are three factors that may decides the working efficiency. Restricted by some material's thermolability, The steam temperature may have certain limitations when working. As a result, the high vacuum degree and low cooling water temperature are two main factors influencing the working efficiency.
Q: How to select all kinds of Thermal Rotary Evaporator?
A: The R series rotary evaporators all possess excellent corrosion resistance and leakproofness. Based on the solvent volume, the 2L, 3L and 5L machine is suitable for
lab and sample test; 5L, 10L and 20L machine is suitable for medium experiment; 20L and 50L machine is suitable for medium experiment and production,
A: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L’s machine is fit for lab and sample test; 5L, 10L, 20L’s machine is fit for medium experiment; 20L, 50L’s machine is fit for medium experiment and production.
