Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE

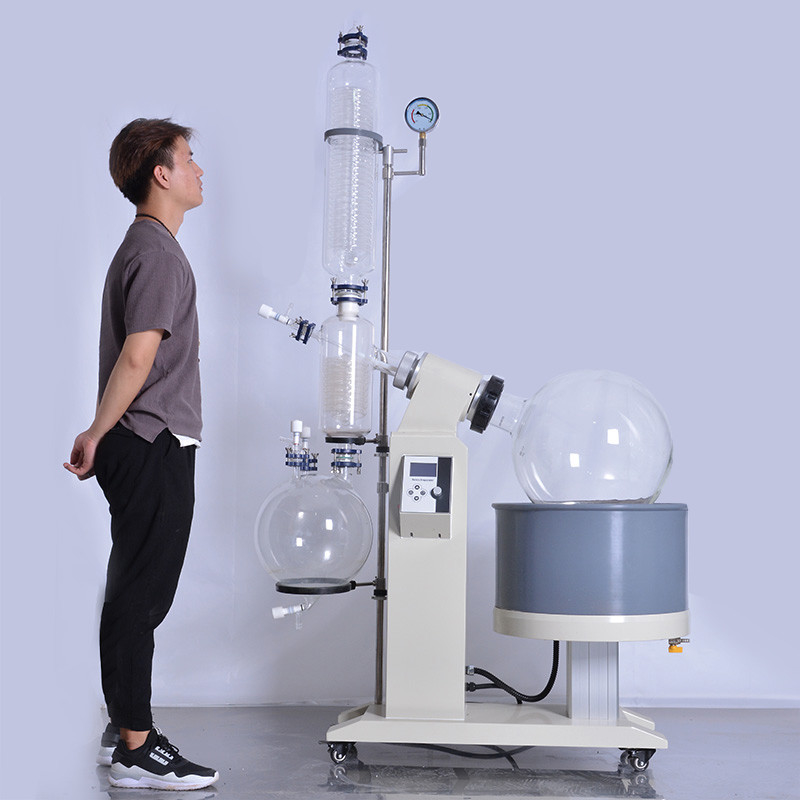

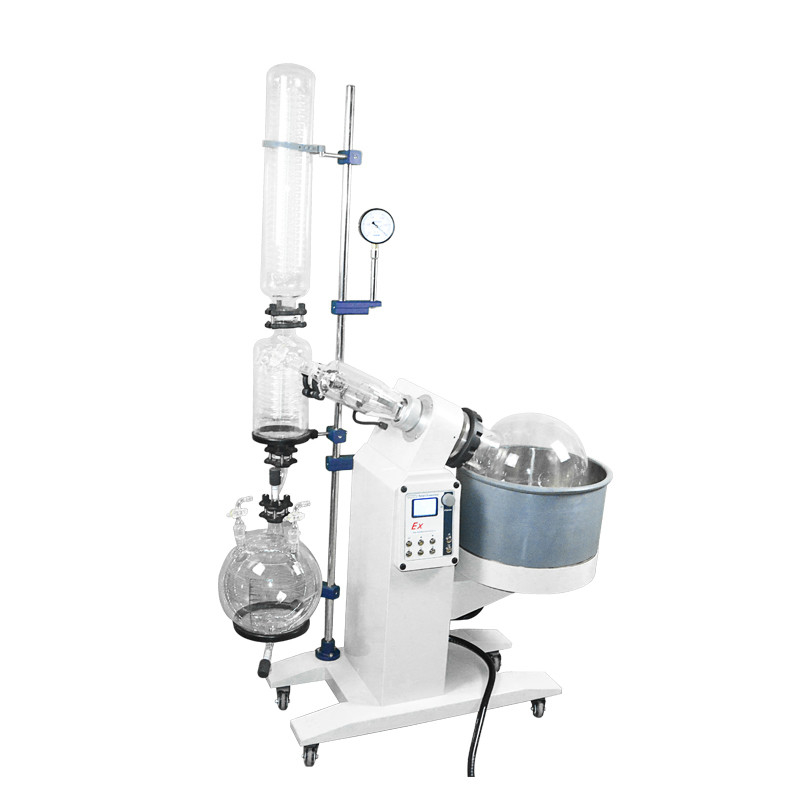

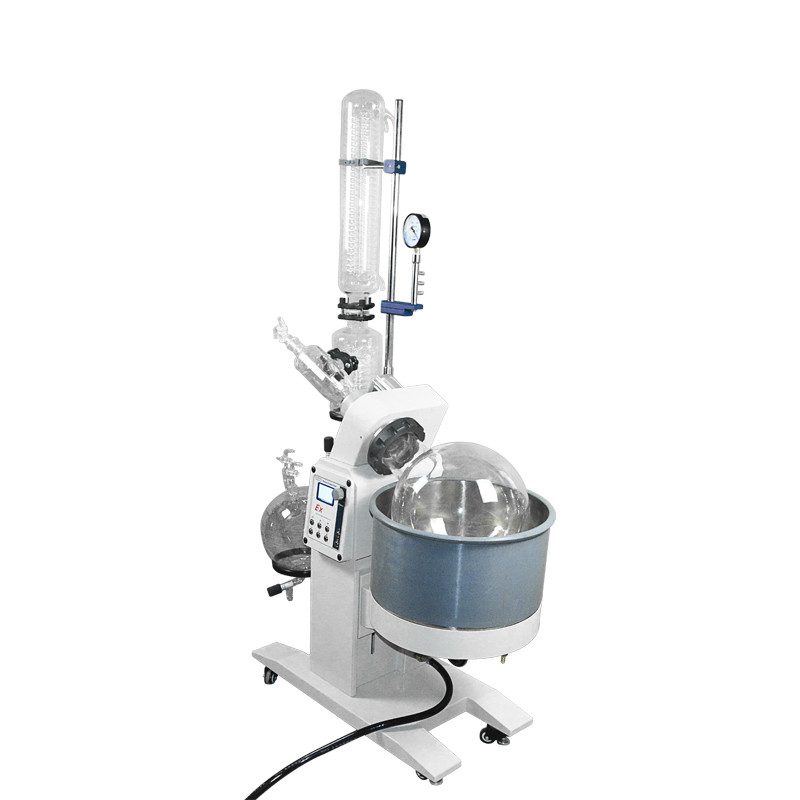

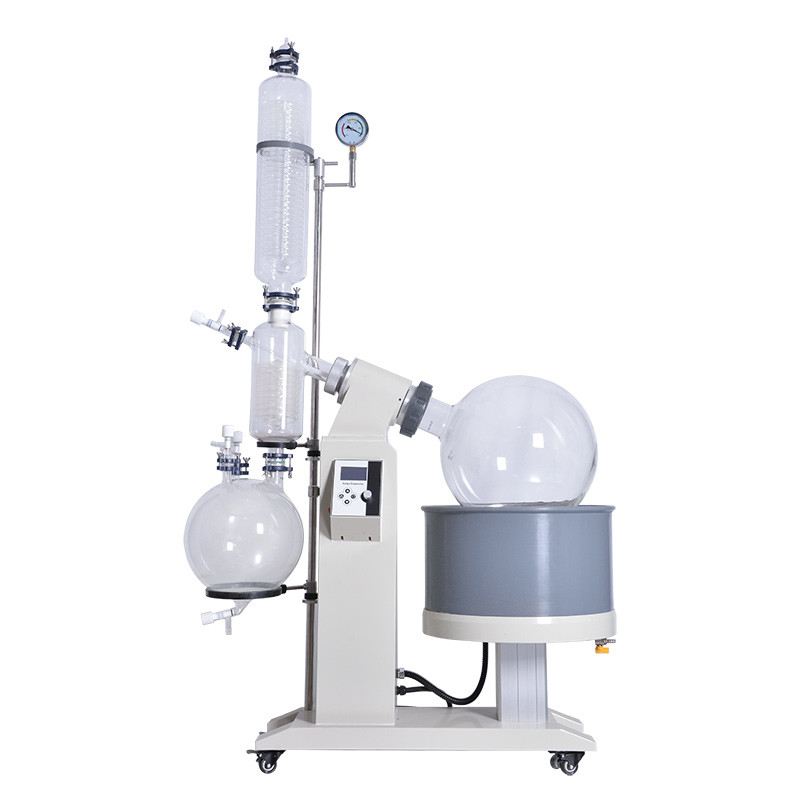

Large capacity vacuum distillation equipment auto lifting 50l alcohol rotary evaporator
A rotary evaporator, known as rotavap as well, is an essential equipment widely used in many fields such as industrial field, chemical labratories and other fields.
The basic structure of a rotary evaporator

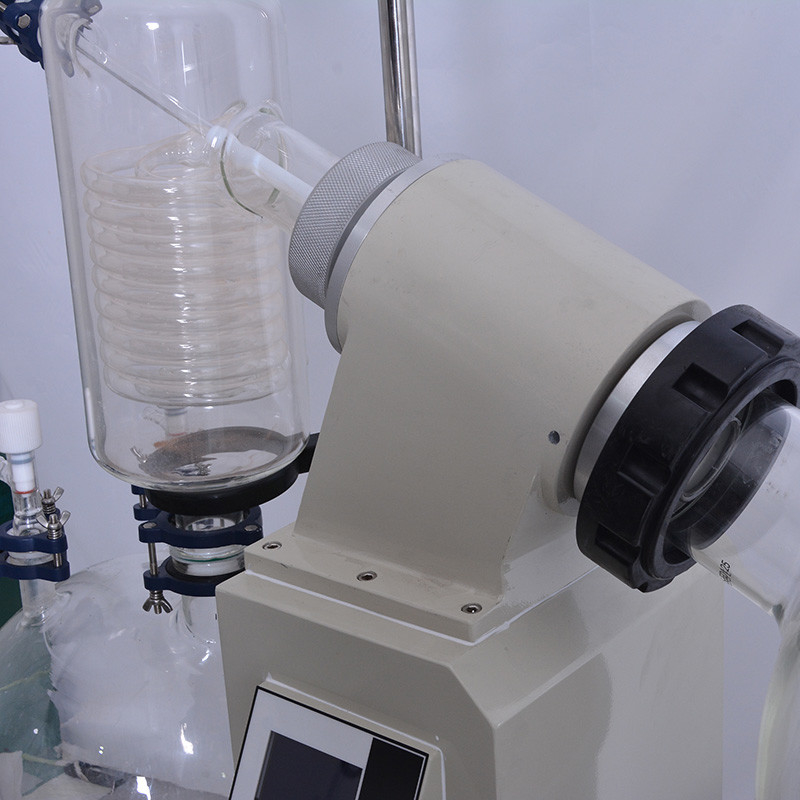

A rotary evaporator usually consists of several parts, including a motor unit, a vacuum system, a water or oil bath, a rotating flask, a receiving flask, condenser pipes and other components.
The functions of a rotary evaporator
A rotary evaporator is an essential separation equipment, which can remove a valtile solvent from a liquid mixture through evaporation and condensation. For example, a rotary evaporator can be used to remove ethanol from the mixture of ethanol and cbd oil in order to improve the purity of cbd oil. Also, it can be used to remove water within fruit juice, in order to make the fruit juice have a higher concentration. It can be seen that a rotary evaporator has a great number of functions.
Model
|
R- 5L
|
R- 10L
|
R- 20L
|
R-50L
|
Ambient temperature (℃)
|
5~25
|
|||
Rotating speed (rpm)
|
5-120
|
|||
Rotary motor (W)
|
30
|
60
|
60
|
100
|
Heating Temperature (℃)
|
Digital temperature control, constant temperature -250℃
|
|||
Maximum vacuum degree (Pa)
|
399.9Pa(under 3mmHg)
|
|||
Rotary flask (L)
|
5
|
10
|
20
|
50
|
Receiving flask (L)
|
3
|
5
|
10
|
20
|
Evaporative capacity (L/H)
|
2-water
|
3-water
|
5-water
|
9-water
|
5.4-Ethanol
|
8-Ethanol
|
14.3-Ethanol
|
25-Ethanol
|
|
Water bath material
|
Stainless steel
|
|||
Water bath size (mm)
|
Φ280×170
|
Φ350×220
|
Φ450×250
|
Φ550×320
|
Lifting (mm)
|
0-140
|
0-180
|
0-180
|
0-180
|
Power (KW)
|
2
|
3
|
5
|
6.5
|
Voltage(V/Hz)
|
Single-phase 220V/60HZ (Voltage can be customized)
|
|||
Dimension (mm)
|
765×400×1070
|
920×550×1700
|
1250×600×2100
|
1320×770×2340
|
