Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE

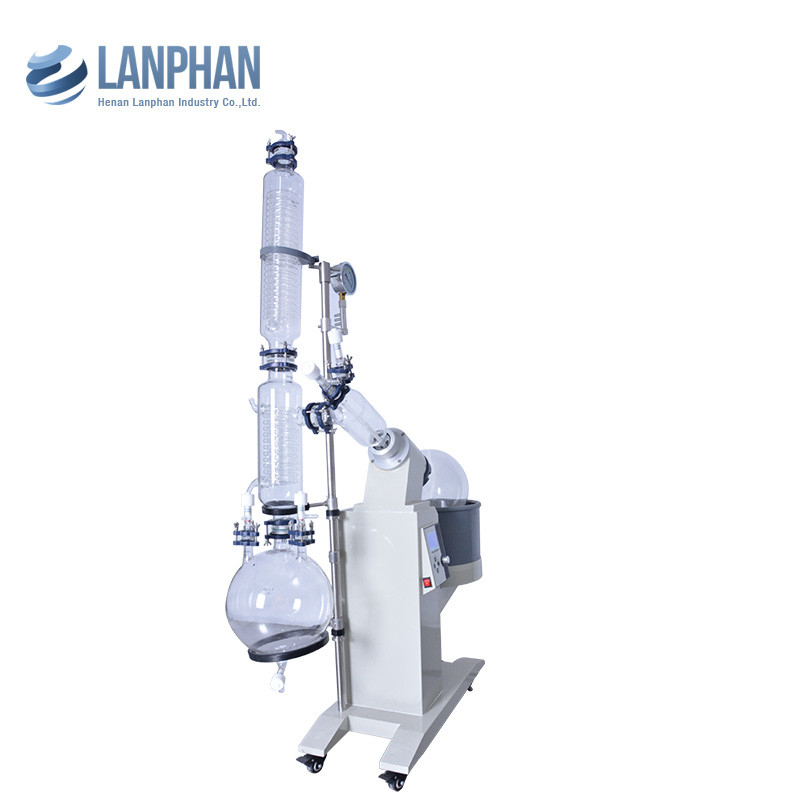

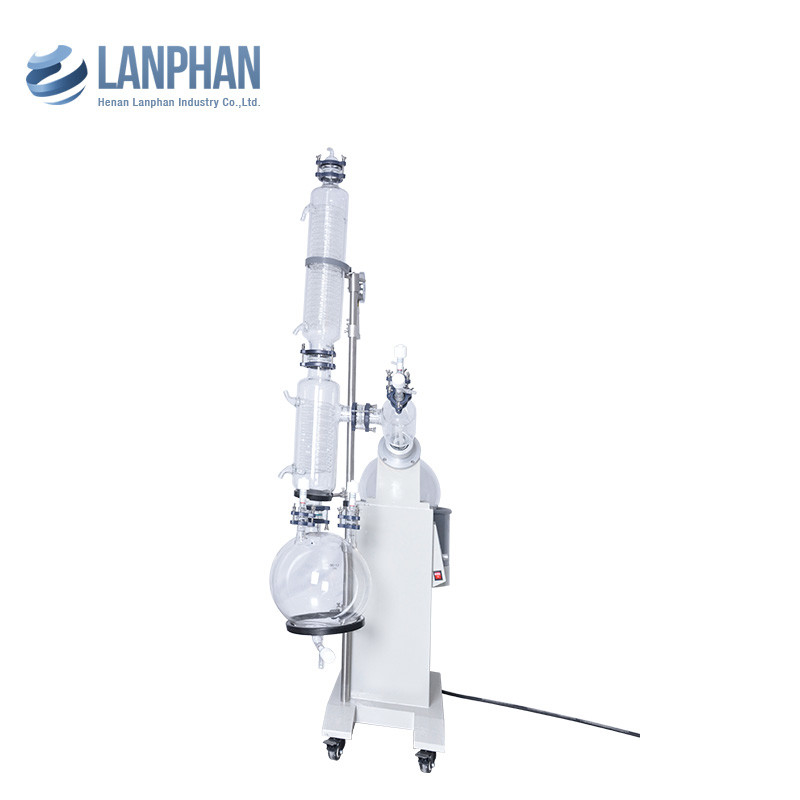

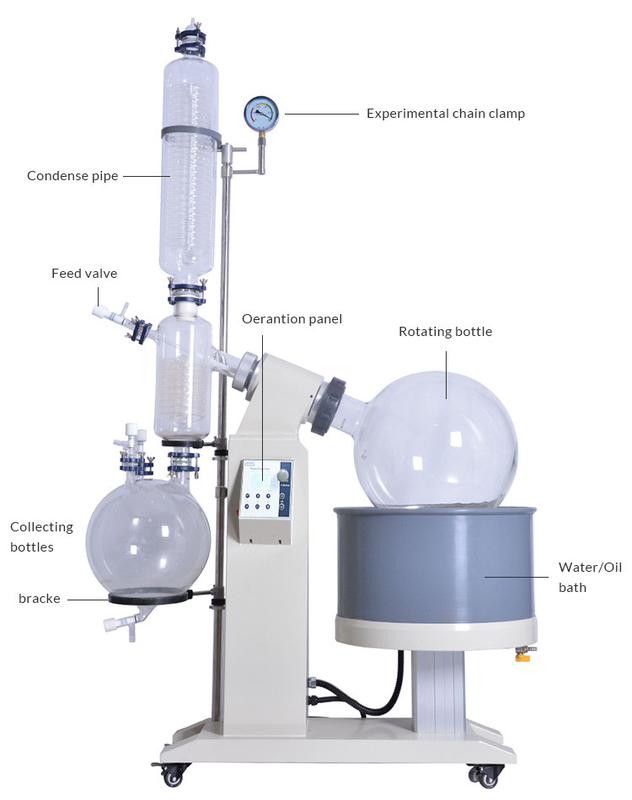

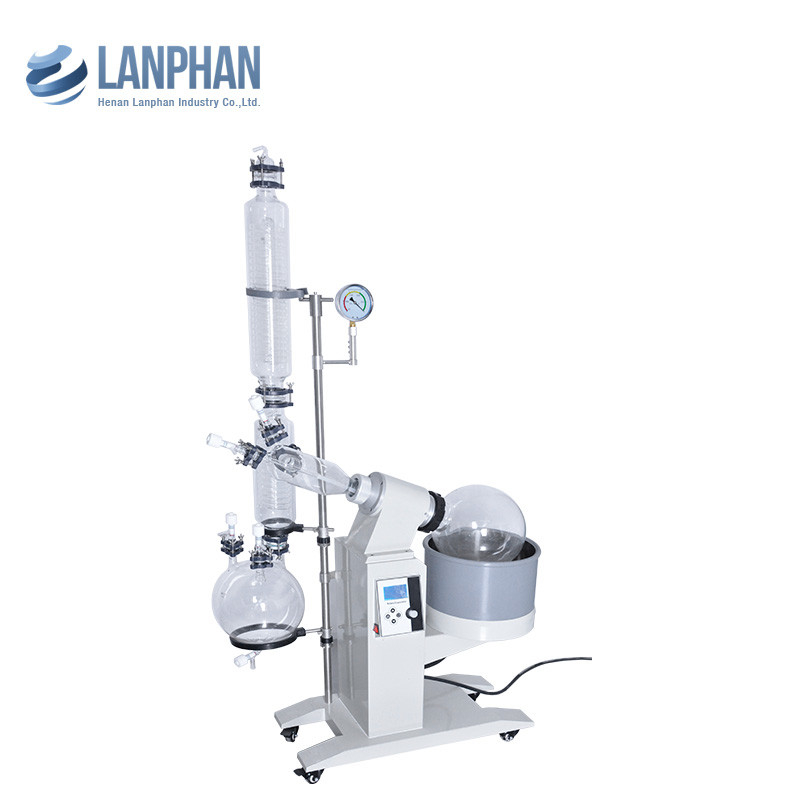

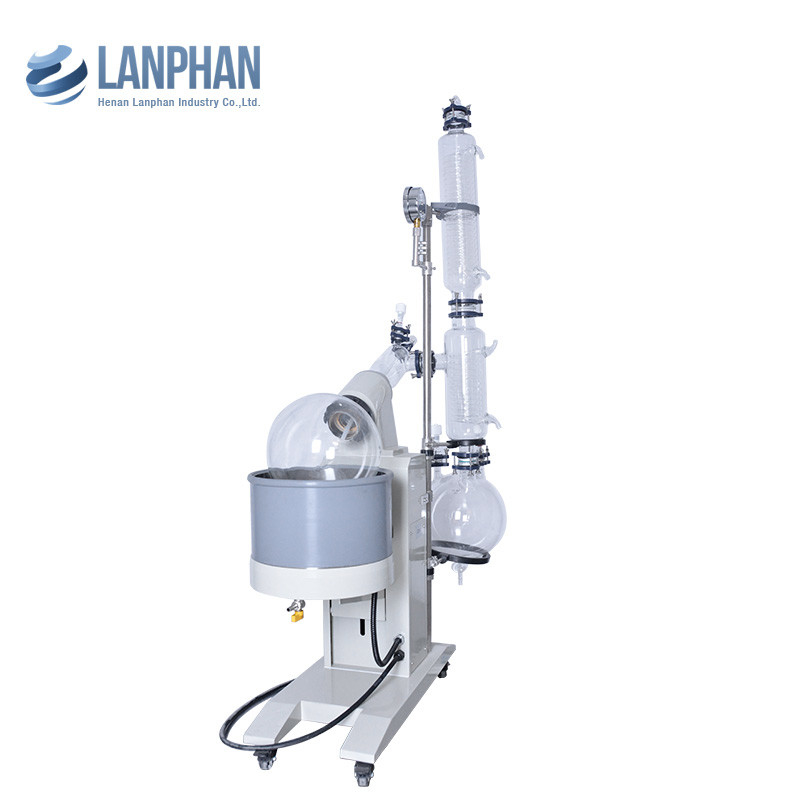

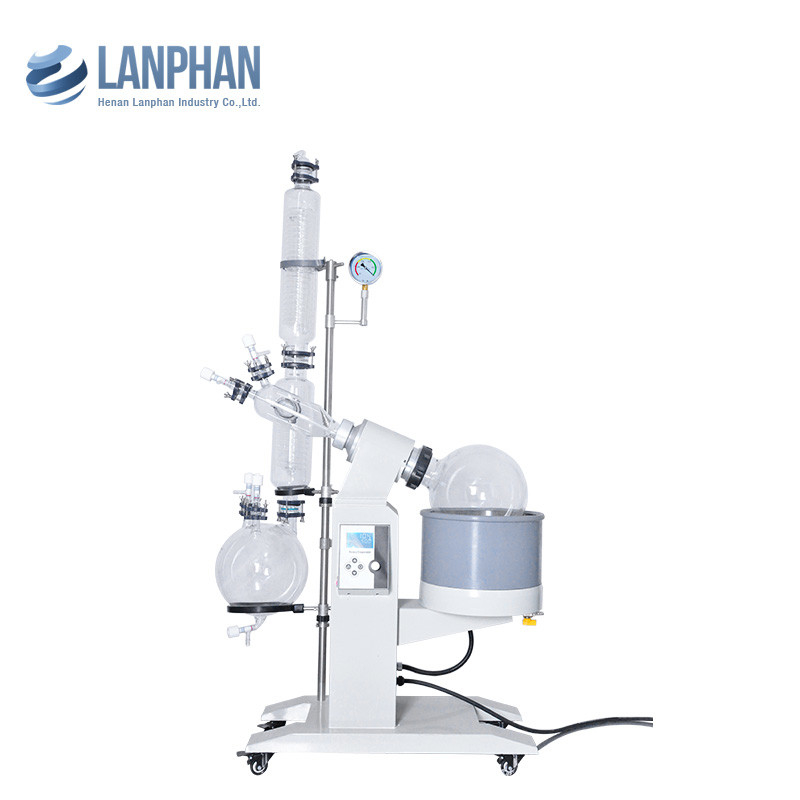

Automatic Lifting 10L Vacuum Rotary Effect Evaporator Suppliers With Cooling Condenser
Model
|
R- 5L
|
R- 10L
|
R- 20L
|
R-50L
|
Ambient temperature (℃)
|
5~25
|
|||
Rotating speed (rpm)
|
5-120
|
|||
Rotary motor (W)
|
30
|
60
|
60
|
100
|
Heating Temperature (℃)
|
Digital temperature control, constant temperature -250℃
|
|||
Maximum vacuum degree (Pa)
|
399.9Pa(under 3mmHg)
|
|||
Rotary flask (L)
|
5
|
10
|
20
|
50
|
Receiving flask (L)
|
3
|
5
|
10
|
20
|
Evaporative capacity (L/H)
|
2-water
5.4-Ethanol
|
3-water
8-Ethanol
|
5-water
14.3-Ethanol
|
9-water
25-Ethanol
|
Water bath material
|
Stainless steel
|
|||
Water bath size (mm)
|
Φ280×170
|
Φ350×220
|
Φ450×250
|
Φ550×320
|
Lifting (mm)
|
0-140
|
0-180
|
0-180
|
0-180
|
Power (KW)
|
2
|
3
|
5
|
6.5
|
Voltage(V/Hz)
|
Single-phase 220V/60HZ (Voltage can be customized)
|
|||
Dimension (mm)
|
765×400×1070
|
920×550×1700
|
1250×600×2100
|
1320×770×2340
|
