Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L

Minimum Order Quantity : 1 set Price : $799
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: RE-501

Detail Information

Product Model: RE-501 Glass Material: GG-17
Frame Material: Stainless Steel Rotary Flask Volume: 5 L¢50 Flange
Collection Flask Volume: 3L 35# Ball-milling Vacuum Degree: 0.098Mpa
Rotary Power: 40W Rotary Speed: 0-120rpm
High Light:

Smart Labtech Rotary Evaporator

,

Double Row Labtech Rotary Evaporator

,

Digital Labtech Rotary Evaporator

Product Description

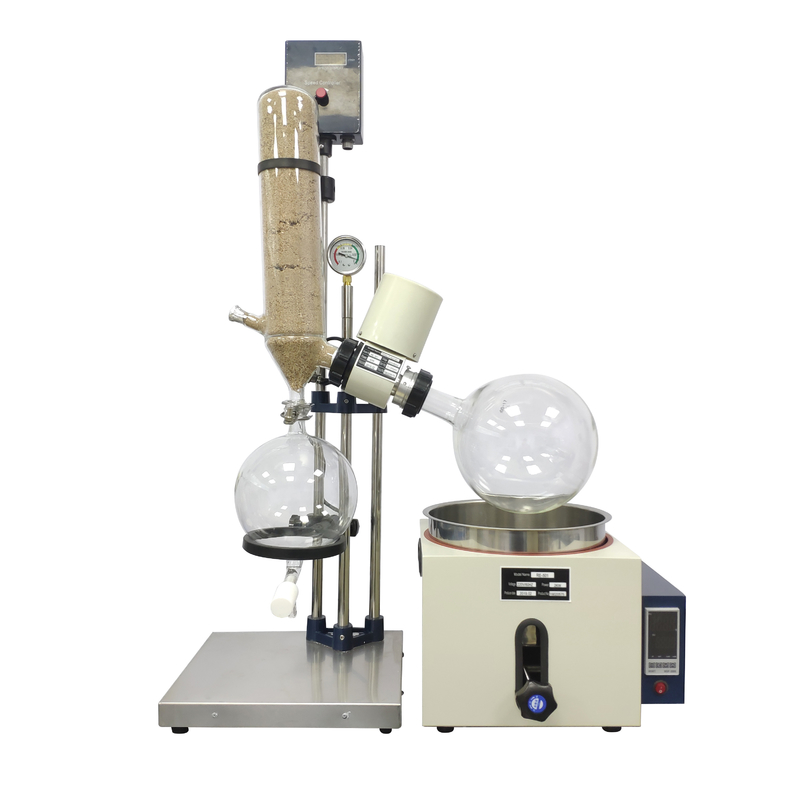

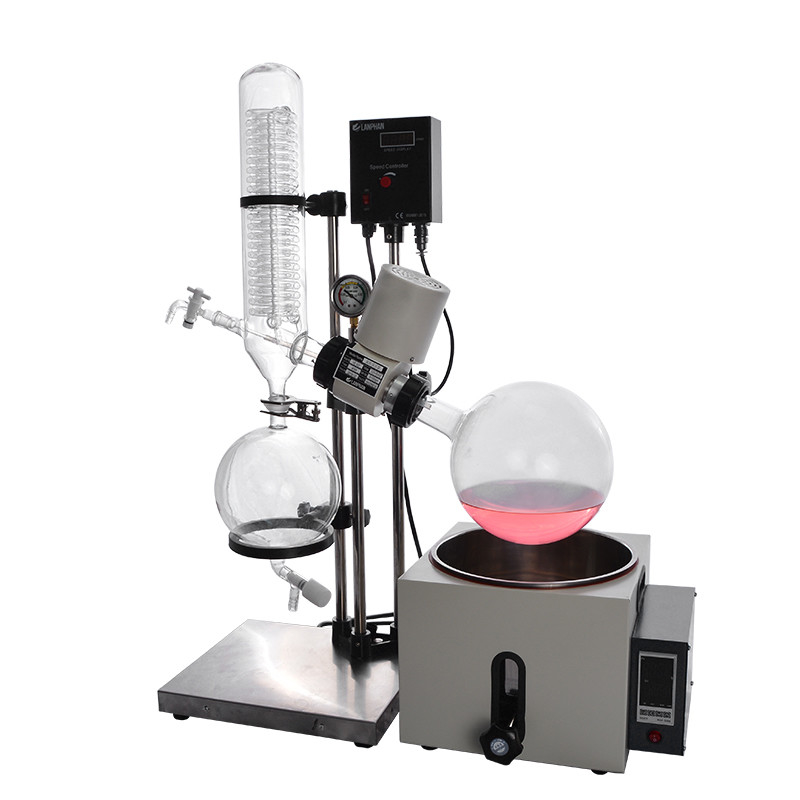

Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L

Product Parameter


product modelRE-501
glass materialGG-17
frame materialstainless steel
Base plate dimension350*330mm
rotary flask volume5 L¢50 Flange
collection flask volume3L 35# ball-milling
vacuum degree0.098Mpa
rotary power40W
rotary speed0-120rpm
heating power2KW
Temperature control range0-400℃
temperature control accuracy±1℃
voltage / frequency(V/Hz)220V/50Hz
Movements itinerary120mm



Product Description



RE-501 rotary evaporator is a newly designed new generation smart rotary evaporator, it adopts double row high-capacity blue backlight LCD as the human-computer interface, control part use high-performance single chip as main control chip, adopt special control program according to controlled member, beauty in appearance and stable in property. Besides, it has reserved updating connector, which can update software to meet client requirements.




Product Features


1. Use PTFE water bath kettle, which is heat preservation, energy-saving, anti-explosion, splash-proof, rust protection and anti-pollution;
2. Primary member use rust protected aluminum alloy and special engineering plastic, that is durable in use and beauty in appearance;
3. Has the function of temperature and rotating speed, double display of temperature and rotating speed;
4. Components use new-type interface design, easy to assemble;
5. Double sealed by PTFE and fluorine rubber sealing ring to keep high vacuum degree;
6. Use advanced PID temperature control to control temperature accurately;
7. Whole body adopts building block design, that is strong in expand ability;
8. It can smoothly up and down, easy to handle and latch position;

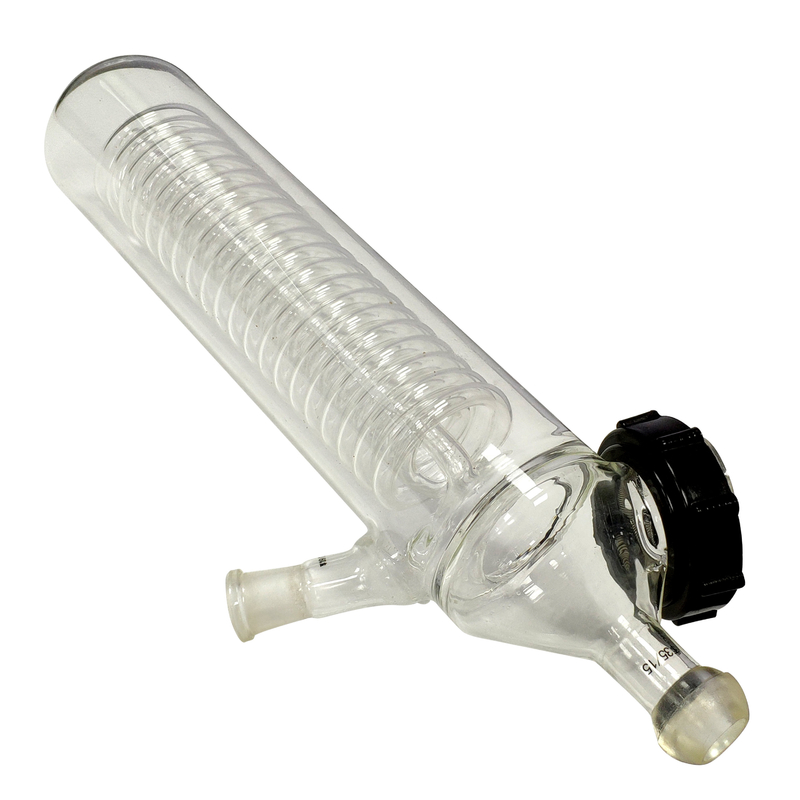

9. Equipped with efficient vertical condensate glass component, condensation area can reach up to 1500cm², fast condensation speed, recovery rate almost 100%;
10. Has the function of dry burning resistant protection and safe temperature loop;
11. Has a wide speed regulation range, can set temperature freely within 0-180rpm;
12. Durable design, can choose plate bursting disk glass component as needed.


Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 0
Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 1Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 2

Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 3Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 4Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 5Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 6

Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 7
Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 8Lab Vacuum Rotary Evaporator Evaporation Equipment 5L 10L 20L 50L 9
