Ex Proof 220V 50Hz 50 Liter Rotary Evaporator

Ex Proof 220V 50Hz 50 Liter Rotary Evaporator

Ex Proof 50 liter rotary evaporator

220V 50Hz 50 liter rotary evaporator

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE

Contact Us
Request A Quote
Product Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops
After Warranty Service:
Video Technical Support, Online Support
Local Service Location:
United States
Showroom Location:
United States
Condition:
New
Power Source:
Electric
Process:
Vacuum Distillation
Voltage:
220V/110V
Power(W):
8kw
Dimension(L*W*H):
1520*620*2470 Mm
Weight:
170 Kg
Warranty:
1 YEAR
After-sales Service Provided:
Online Support, Overseas Third-party Support Available
Key Selling Points:
High Productivity
Name:
50l Rotovap
Glass Material:
GG-17
Temperature Control Range:
0-99℃
Vacuum Degree:
0.098Mpa
Port:
Shanghai, Tianjin, Qingdao
Highlight:

Ex Proof 50 liter rotary evaporator

,

220V 50Hz 50 liter rotary evaporator

Payment & Shipping Terms
Minimum Order Quantity
1 - 4 Units
Price
$3,935.00
Packaging Details
mini evaporator: carton or wooden case package, customized package is available.
Supply Ability
1000 Set/Sets per Month
Product Description

Product Description

Ex Proof 220V 50Hz 50 Liter Rotary Evaporator 0Ex Proof 220V 50Hz 50 Liter Rotary Evaporator 1


Ex Proof 220V 50Hz 50 Liter Rotary Evaporator 2Ex Proof 220V 50Hz 50 Liter Rotary Evaporator 3



Features of 50l rotovap:

1.Rotating body is composed of a reliable three-phase asynchronous motor and a transducer control device;

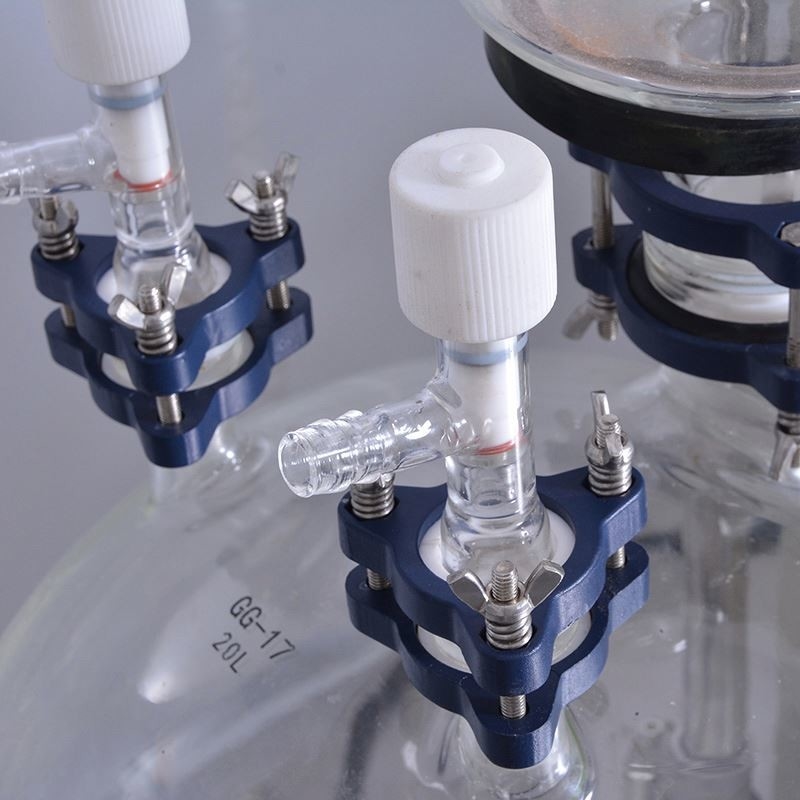

2.Double sealed by PTFE and fluorine rubber sealing ring to keep high vacuum degree, separate gas and liquid and maintain no backflow;
3.Adopt main and vice efficient condenser, there has automatic switching device between vice condenser and receiving bottle. Below receiving bottle, equipping with tapping valve, which makes it convenient to recycle solvent and the recovery rate approach to 100%;
4.Rotary bottle is connected by nut, that is easy to install and dismount;
5.Continuously charging and recycling material;
6.Vacuum system is equipped with vacuum meter, choose best working vacuum degree to low boiling point materials;
7.Heating kettle is applicable for both water and oil, digital thermostat control and manual up and down, closed resistance wire heater, temperature control by K type transducer. Besides, heating groove can move left and right;
8.Has the function of dry burning resistant protection and safe temperature loop;
9.Smooth starting, can positive and negative inversion operate;
10.Durable design, can choose plate bursting disk glass component as needed.

Corollary Equipment

Ex Proof 220V 50Hz 50 Liter Rotary Evaporator 4

1. Rotary vacuum evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
2. Rotary vacuum evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
3. Rotary vacuum evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.

Related Products
FAQ

Q: What’s the difference between vertical and inclined condenser?

A: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.



Q: What factor decides the working efficiency of  glass distillation apparatus?

A: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving.



Q: How to select all kinds of  Thermal Rotary Evaporator?

答:就结构而言,我们的R系列产品均具有出色的抗腐蚀能力和防漏能力.根据溶剂量,适用于实验室和样品测试的2L,3L,5L机器;5L,10L,20L的机器适合中等实验;20L,50L的机器适用于中等规模的实验和生产,特别适合提取金属离​​子污染物质.
