ISO LCD Control Panel 2KW Lab Rotary Evaporator

Minimum Order Quantity : 1-4 Units Price : $1,846.00
Place of Origin: Henan, China Brand Name: Lanphan
Certification: ISO

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear Power(W): 2KW
Dimension(L*W*H): 765*400*1070 Mm Warranty: 1 YEAR
After-sales Service Provided: Online Support Key Selling Points: High Productivity
Name: Glassware Rotary Evaporator Ambient Temperature: 5~25
Rotating Speed: 5-120 Rpm Rotary Motor: 30W
Maximum Vacuum Degree: 399.9Pa Rotary Flask: 5L
Receiving Flask: 3L Water Bath Material: Stainless Steel
Type: 5l Rotary Evaporator Lifting: 0-140 Mm
Condition: New Power Source: Electric
Process: Rotary Voltage: 220V/60HZ
Weight: 70KG Selling Units: Single Item
Single Package Size : 80X40X60 Cm Single Gross Weight: 59.000 Kg
Package Type: Rotary Evaporator 200l: Carton Or Wooden Case Package, Customized Package Is Available.
High Light:

2KW Lab Rotary Evaporator

,

LCD Control Panel Lab Rotary Evaporator

,

ISO Lab Rotary Evaporator

Product Description

Top Grade distillation equipment Industrial rotavapor laboratorio

1. Explosion proof is optional for 5L,10L,20L,30L and 50L
2. One year warranty 3.Customized styles,Meet different needs
4. Turnkey project to equip you with the best solution
Product Paramenters
Model
R- 5L
R- 10L
R- 20L
R-50L
Ambient temperature (℃)
5~25
Rotating speed (rpm)
5-120
Rotary motor (W)
30
60
60
100
Heating Temperature (℃)
Digital temperature control, constant temperature -250℃
Maximum vacuum degree (Pa)
399.9Pa(under 3mmHg)
Rotary flask (L)
5
10
20
50
Receiving flask (L)
3
5
10
20
Evaporative capacity (L/H)
2-water
5.4-Ethanol
3-water
8-Ethanol
5-water
14.3-Ethanol
9-water
25-Ethanol
Water bath material
Stainless steel
Water bath size (mm)
Φ280×170
Φ350×220
Φ450×250
Φ550×320
Lifting (mm)
0-140
0-180
0-180
0-180
Power (KW)
2
3
5
6.5
Voltage(V/Hz)
Single-phase 220V/60HZ (Voltage can be customized)
Dimension (mm)
765×400×1070
920×550×1700
1250×600×2100
1320×770×2340




Products Description

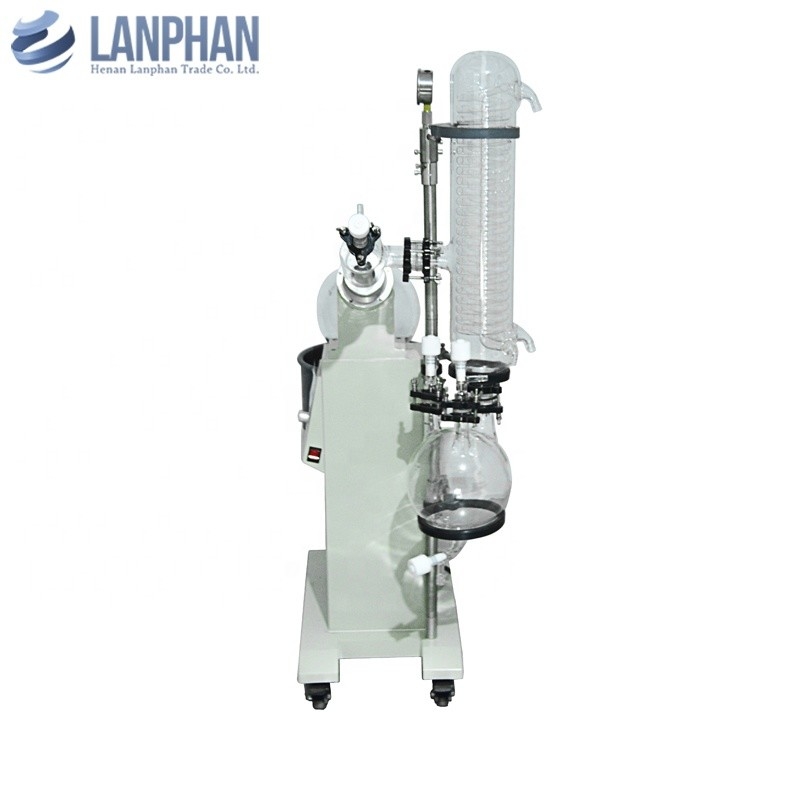

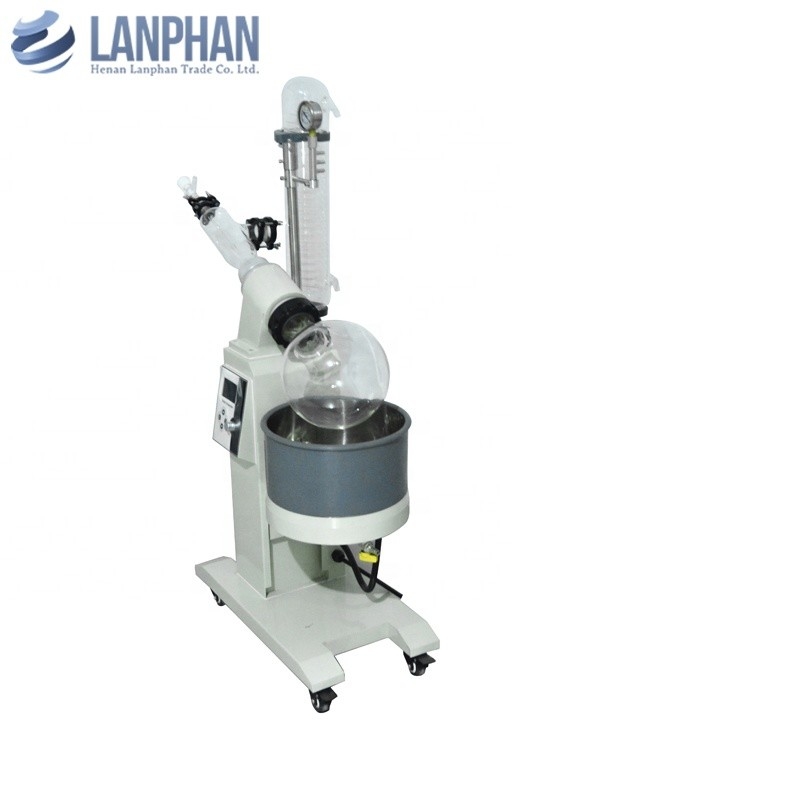

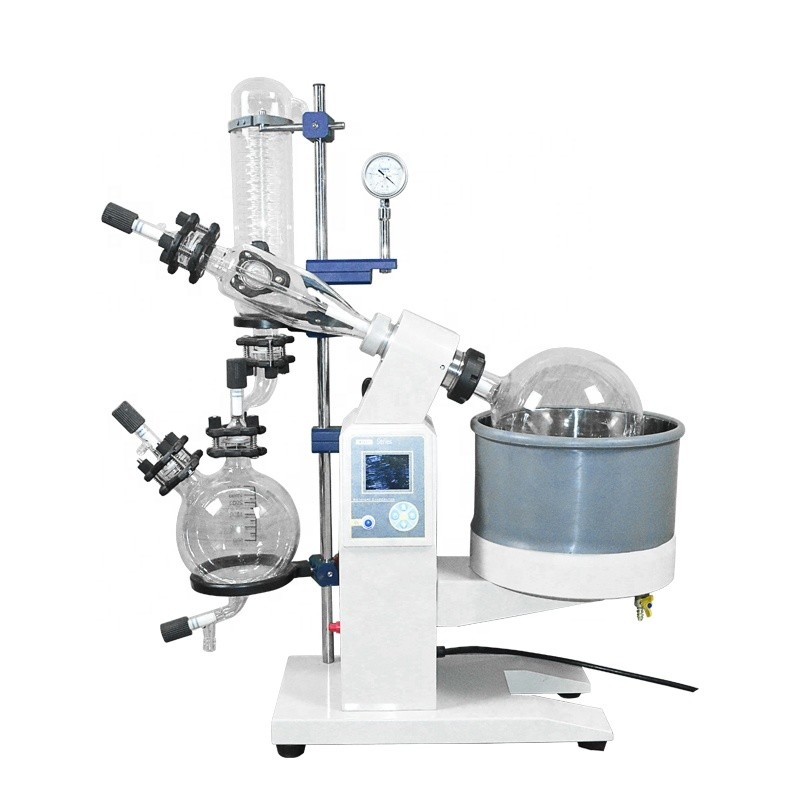

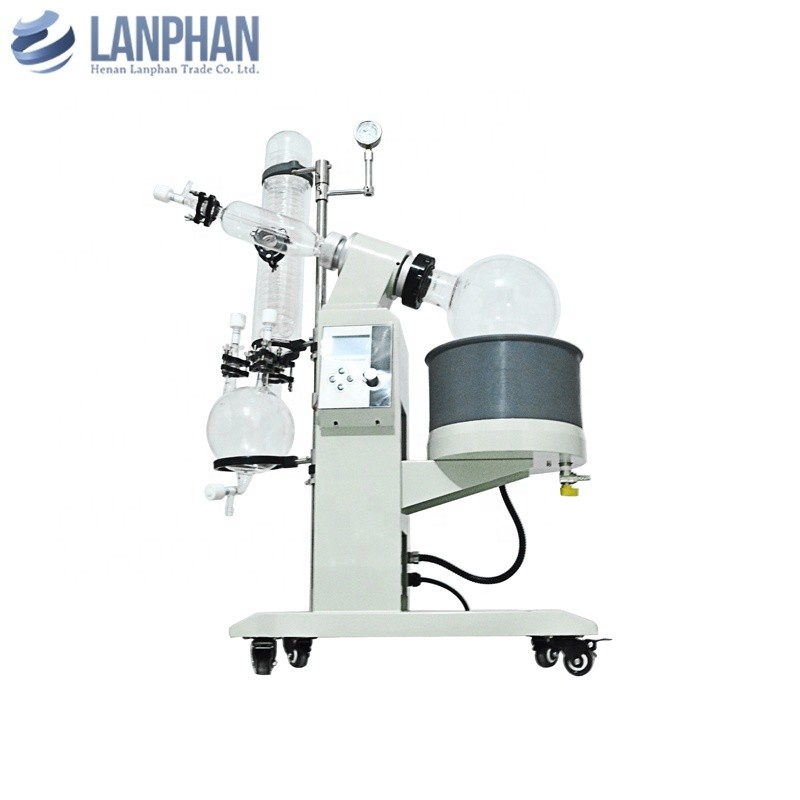

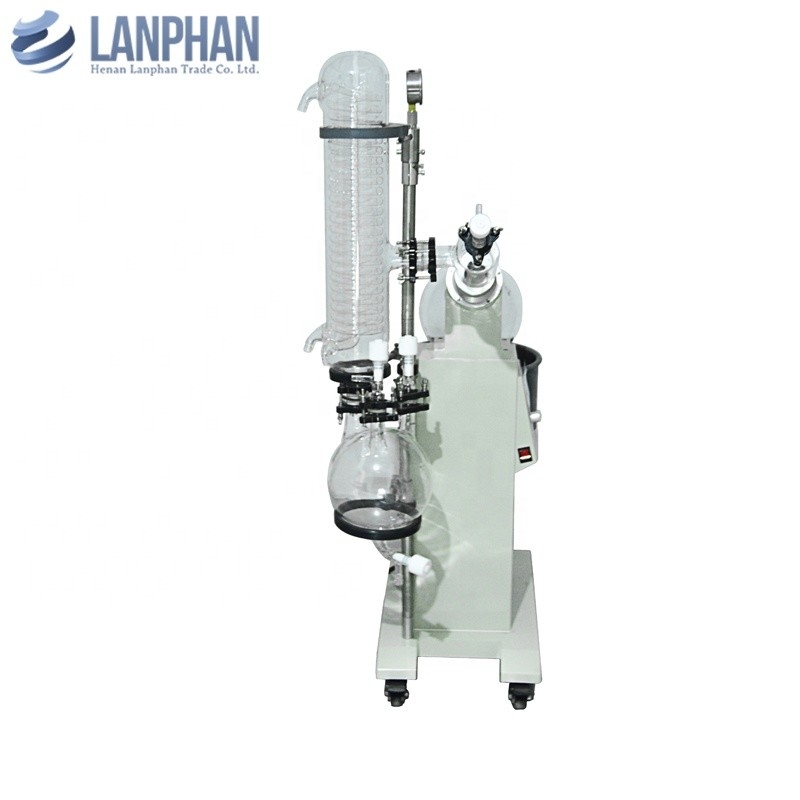

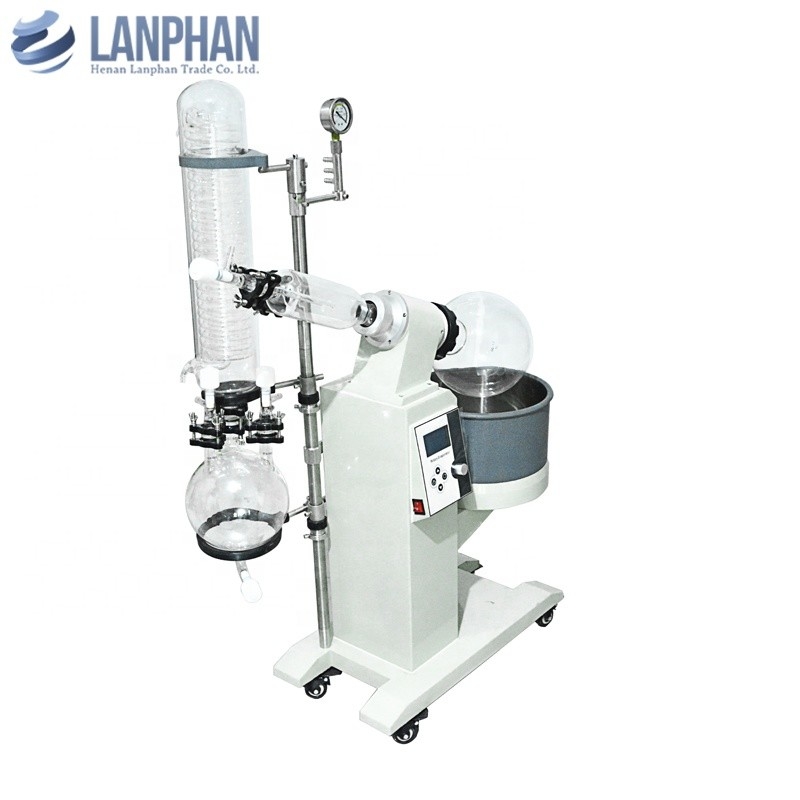

ISO LCD Control Panel 2KW Lab Rotary Evaporator 0
ISO LCD Control Panel 2KW Lab Rotary Evaporator 1
ISO LCD Control Panel 2KW Lab Rotary Evaporator 2
ISO LCD Control Panel 2KW Lab Rotary Evaporator 3
ISO LCD Control Panel 2KW Lab Rotary Evaporator 4
ISO LCD Control Panel 2KW Lab Rotary Evaporator 5
ISO LCD Control Panel 2KW Lab Rotary Evaporator 6
ISO LCD Control Panel 2KW Lab Rotary Evaporator 7
