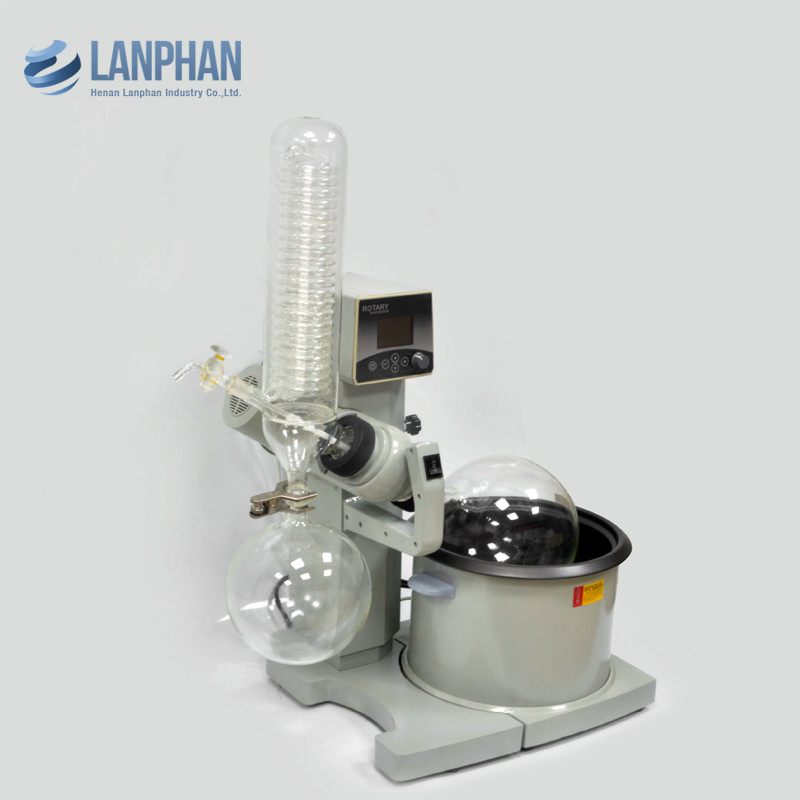

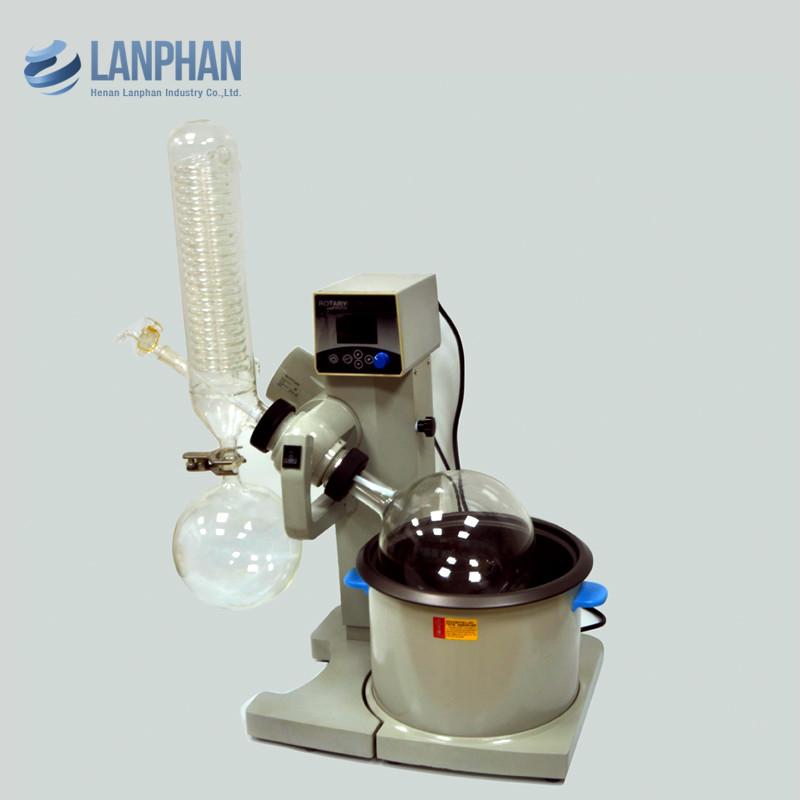

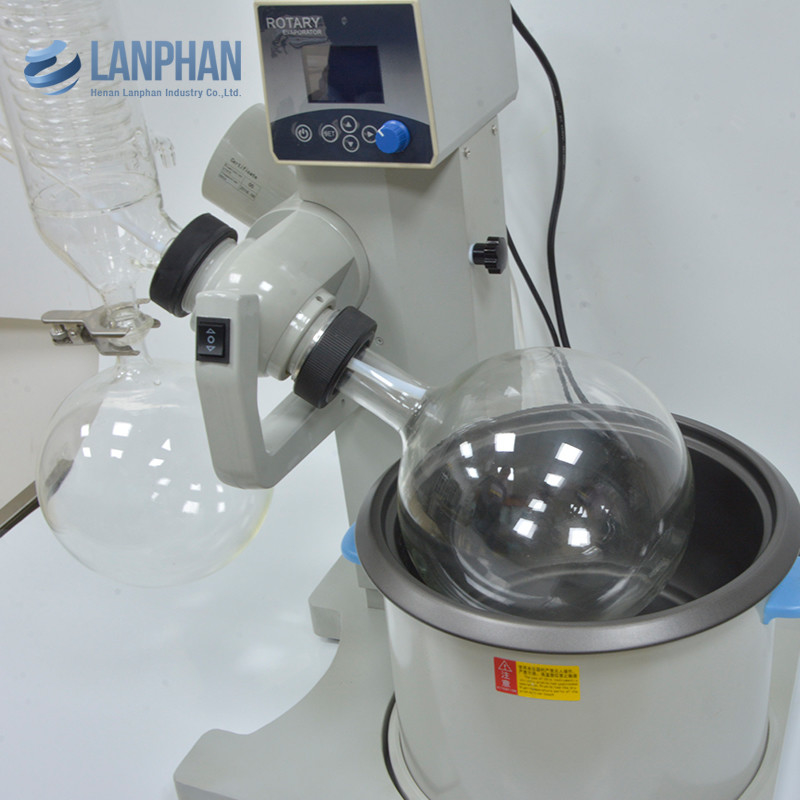

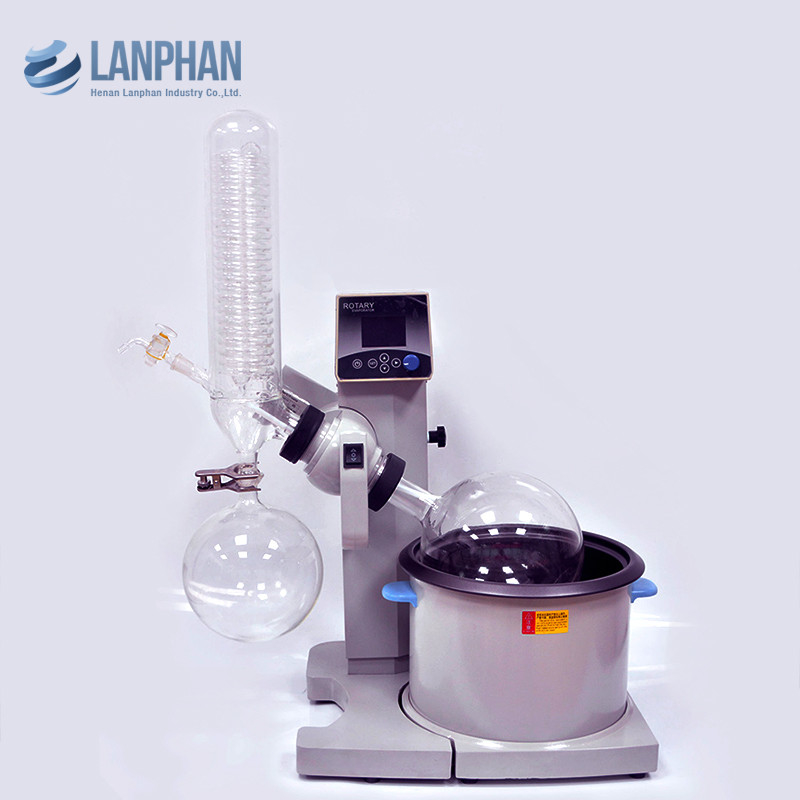

RE 5000E Glass Distillation Lab Rotary Evaporator

Minimum Order Quantity : 1 - 2 Units Price : $1,431.00
Packaging Details : Thermal Rotary Evaporator: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: ISO

Detail Information

Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: Bearing, Gearbox, Motor, Gear Condition: New
Power Source: Electric Process: ROTARY
Voltage: 220V/50HZ Power(W): 1.5KW
Dimension(L*W*H): 700*410*880mm Weight: 42.5KG
Warranty: 1 YEAR After-sales Service Provided: Online Support
Key Selling Points: High Safety Level Name: Lab Concentration Liquid Evaporator
Receiving Flask Volume: 3L Manual Up And Down Of: Manual Up And Down Of Bath Kettle
Lifting Stoke: 120mm Rotary Bottle Volume: 5L
Glass Material: GG-17 Rotary Speed: 0-180rpm
Lifting Power: 20W Color: Customized
Port: Shanghai, Tianjin, Qingdao
High Light:

Glass Distillation Lab Rotary Evaporator


RE 5000E Lab Rotary Evaporator

Product Description

Double Effect Evaporator Vacuum Glass Distillation Equipment

Product Description .

 Description of Glass Distillation Equipment

               RE-5000E glass distillation equipment mainly used for continuous distillation of a large amount of volatile solvent under negative pressure. Especially for the concentration of extract liquor and distillation of receive liquid when chromatograph, it can isolate and purify reaction product. In reduced pressure condition, when solvent distillation, distillation flask in continuous rotation, the distillation flask is a pyriform or round-bottom flask who is connected to vacuum pump by a snakelike condenser pipe, the other open mouth of condenser pipe is connected to receiving flask to receive evaporated organic solvent. There is a three-way valve between condenser pipe and vacuum pump, when system connect to air, take down distillation flask and receiving flask to transfer solvent. Please reduce pressure first before rotate distillation flask; and please power off first before connect to air, to prevent the rotating distillation flask from falling off. Thermostatic water bath is the heat source for distillation. RE-5000E rotary evaporator mainly used in medicine, chemical engineering, biopharmacy industries for the concentration, crystallization, drying, separation and solvent recovery, especially suitable for concentrate and purify high temperature easily decomposed material.



RE 5000E Glass Distillation Lab Rotary Evaporator 0

Product Display .

RE 5000E Glass Distillation Lab Rotary Evaporator 1RE 5000E Glass Distillation Lab Rotary Evaporator 2RE 5000E Glass Distillation Lab Rotary Evaporator 3

If you are interested in this product, pls send me inquiry Contact Supplier


Technical Parameter of Glass Distillation Equipment

Basic Parameter Model RE-5000E
Glass Material GG-17
Support Material Aluminium Alloy
Inner Container Material Aluminium Alloy+PTFE recombination pot, whole sealing heating   280*170mm 10L
Rotary Bottle Volume 5L  50# flange port
Receiving Flask Volume 3L  35# ball milling port
Rotary Power 40W
Rotary Speed 0-180rpm
Heating Power 1.5KW
Bath Kettle Temp. Control Range 0-99℃
Temp. Control Accuracy ±1℃
Lifting Power 20W
Lifting Stroke 120mm
Voltage/Frequency (V/Hz) 220V/50Hz
Overall Dimension (mm*mm*mm) 700*410*880
Package Dimension (mm*mm*mm) 640*540*690   wooden case
Package Weight (KG) 42.5

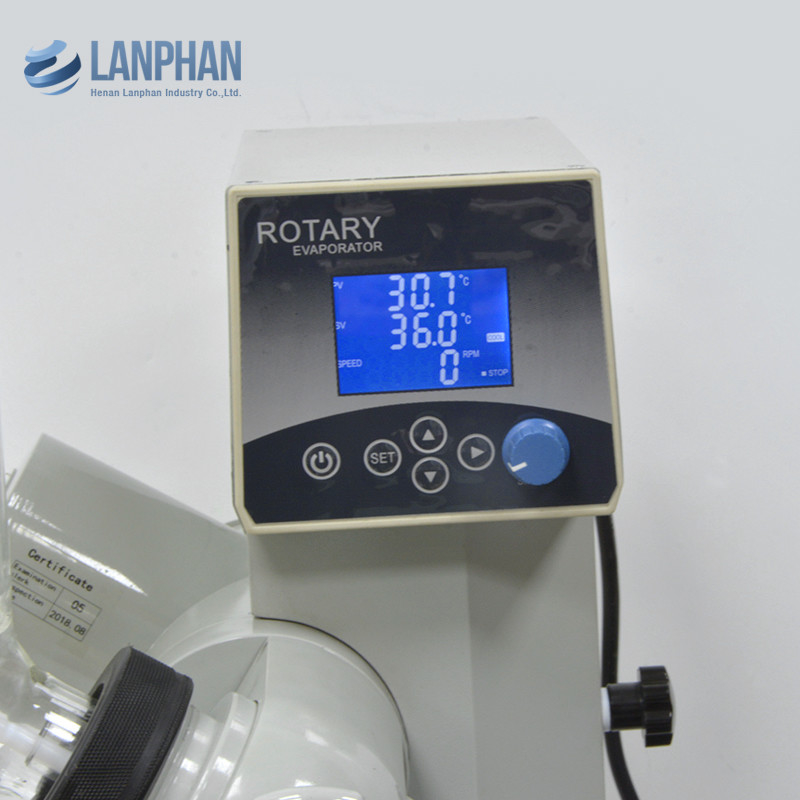

      Functional Configuration Rotary Speed Display Mode Liquid Crystal Display
Temperature Display Mode PT100 Sensor Digital Display
Temperature Control Mode Intelligent Temperature Control
Sealing Mode Bothway sealing by PTFE + Fluorine Rubber
Lifting Mode Automatic lifting of main engine

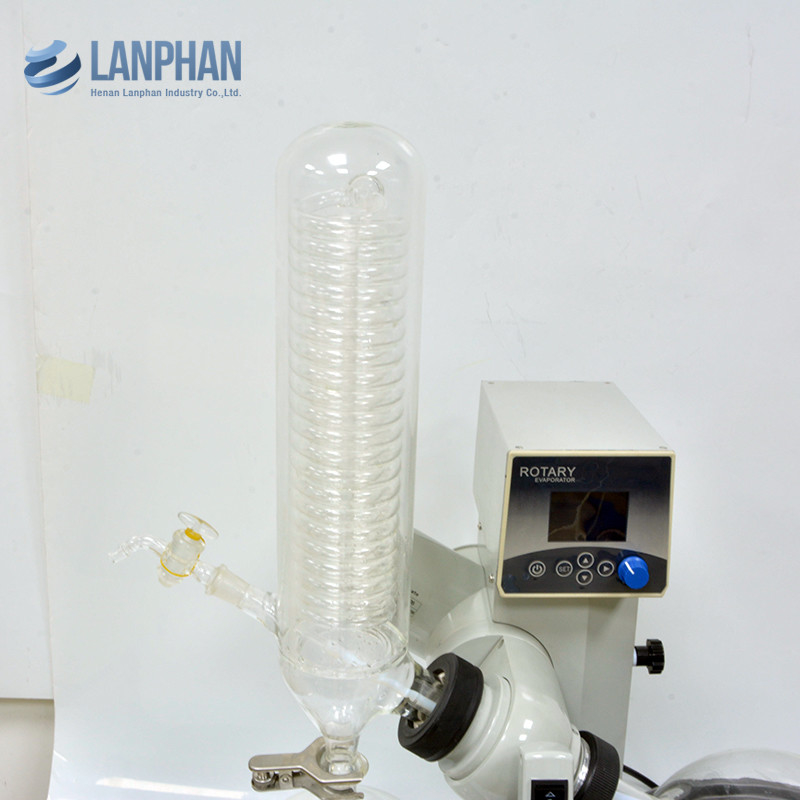

Condenser Vertical type condenser 100*590mm
Continuous Charging 19# charging valve
Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Packing List of Glass Distillation Equipment

Machine Part Glass Part
Head with the motor 1 set Rotary Bottle 1 pc
Host 1 unit Recycling bottle 1 pc
Control box 1 pc Condenser 1 pc
Bath pot 1 unit 19# feeding valve 1 pc
Recycling bottle clamp 1 pc Adapter 1 pc
PTFE Tube 1 pc Glass Shaft 1 pc
Heating wire 1 pc
Fasten Screw 1 pc
PTFE Flask remover 1 pc
Nut with pad 2 sets
Spare Parts
Operation Manual 1 pc 10A fuse 2 pcs
Warranty Card 1 pc Sealing gasket 1 pc
Quality Certificate 1 pc Packing List 1 pc


Corollary Equipment .

RE 5000E Glass Distillation Lab Rotary Evaporator 4

1. Rotary vacuum evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..

2. Rotary vacuum evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.

3. Rotary vacuum evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.


Workshop .

RE 5000E Glass Distillation Lab Rotary Evaporator 5

RE 5000E Glass Distillation Lab Rotary Evaporator 6RE 5000E Glass Distillation Lab Rotary Evaporator 7

For more information, please contact us

Contact Supplier

RE 5000E Glass Distillation Lab Rotary Evaporator 8RE 5000E Glass Distillation Lab Rotary Evaporator 9

Contact us

for more details about price, packing, shipping and discount.

Tel: 86-371-67447999
Address: Jianshe Road, Zhongyuan District, Zhengzhou,
Henan, China

Q: What’s the difference between vertical and inclined condenser?

A: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.

Q: What factor decides the working efficiency of  Thermal Rotary Evaporator?

A: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving.

Q: How to select all kinds of  Thermal Rotary Evaporator?

A: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L’s machine is fit for lab and sample test; 5L, 10L, 20L’s machine is fit for medium experiment; 20L, 50L’s machine is fit for medium experiment and production, especially suitable for the extraction of metal ionavoiding polluted material.
