50 L Vacuum Distillation Factory Price Of Industrial Evaporator

Minimum Order Quantity : 1 - 2 Units Price : $5,578.00
Packaging Details : Packaging: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear Condition: New
Power Source: Electric Process: ROTARY
Voltage: 380V/110V Power(W): 250W
Dimension(L*W*H): 1300*800*2200MM Weight: 20KG
Warranty: 1 YEAR After-sales Service Provided: Online Support, Overseas Third-party Support Available
Key Selling Points: High Productivity Name: Vacuum Distillation Equipment
Temperature Control(℃): Digital Temperature Contrd-180 Max Vacuum Degree(Pa): 399.9Pa(<3mmHg)
Rotary Flask (L): 50L Receiving Flask(L): 20L
Lifting Distance(mm): 0-180 Main Engine Rotary Speed (rpm): 20-110
Glass Rotary Axis Size: 50mm Power: 250W
Port: Shanghai, Tianjin, Qingdao

Product Description

Vacuum Distillation Factory Price Of Industrial Evaporator

Explosion proof is optional for 5L,10L,20L,30L and 50L

The rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation

Product Description

50 L Vacuum Distillation Factory Price Of Industrial Evaporator 050 L Vacuum Distillation Factory Price Of Industrial Evaporator 1



Basic Parameter Type RE-5003
Glass Material GG-17
Support Material stainless steel
Shell Material Antisepsis Plastic Spraying 710*620*700 mm
Inner Container Material stainless steel 500*220 mm
Baseboard Size 804*574 mm
Volume of Rotary Bottle 50L ¢125 flange aperture
Volume of Recycling Bottle 20L ¢60 flange aperture
Vacuum Degree 0.098Mpa
Rotating Power 180W
Rotating Speed 0-110rpm
Heating Power 8KW
Temperature Control Range of Bath Kettle 400℃
Temperature Accuracy ±1℃
Voltage/Frequency (V/Hz) 220V/50Hz
Up and Down Distance 180mm
Shape Size(mm*mm*mm) 1520*620*2470 mm
Package Weight (KG) 170
Function Allocation Speed Adjustment Mode Electrodeless Speed Regulation

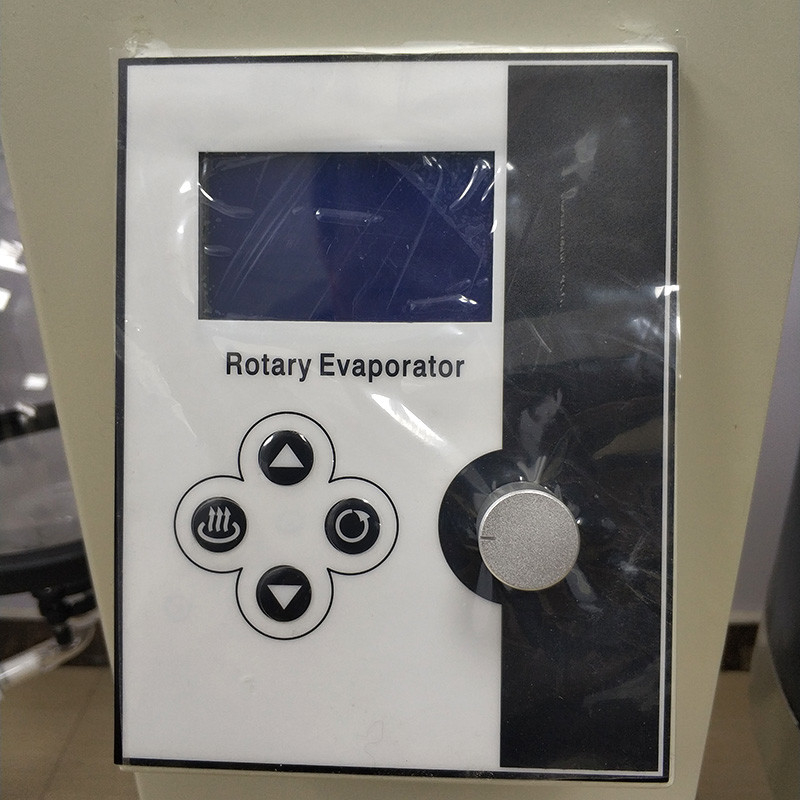

Rotating Speed Display Mode Digital Display
Temperature Display Mode Digital Display K Type Sensor
Temperature Control Mode Smart Temperature Control
Sealing Mode PTFE Sealing

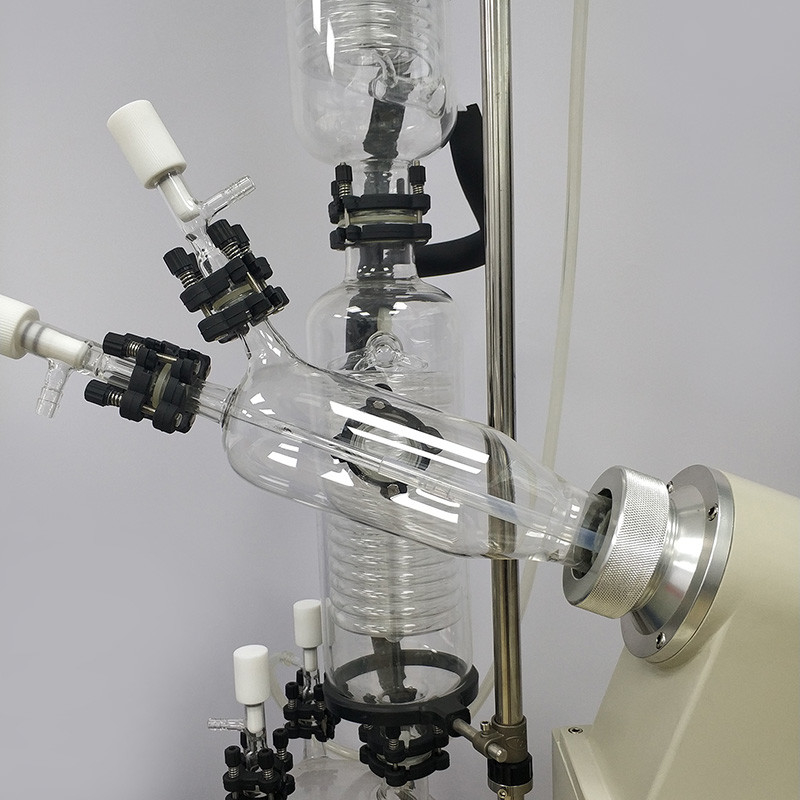

Condenser Vertical efficient condenser, main condenser 160*840, assistant condenser 160*530
Up and Down Mode Manual Up and Down of Bath Kettle
Continuous Charging 40# Standard Aperture Feeding Valve

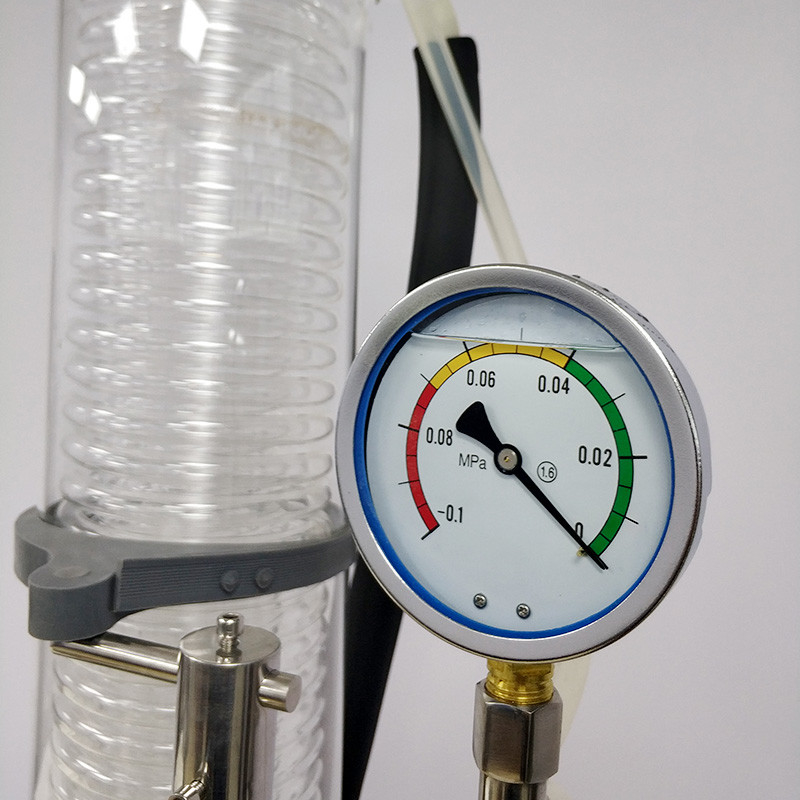

Vacuum Display Mode Vacuum Meter
Continuous Collecting Check valve control
Charging Mode PTFE Charging valve, ¢60 flange aperture
Optional Equipping Up and Down Mode Automatic Up and Down
Collecting Device Double Recycling bottle
Anti-explosion Anti-explosion Frequency Changer, Anti-explosion Dynamo EX120W
Frame Part Plastic Spraying or PTFE Spraying
Bath Kettle Material whole 304 stainless steel




50 L Vacuum Distillation Factory Price Of Industrial Evaporator 250 L Vacuum Distillation Factory Price Of Industrial Evaporator 3



Features of 50L Rotary Evaporator:

1.Rotating body is composed of a reliable three-phase asynchronous motor and a transducer control device;
2.Double sealed by PTFE and fluorine rubber sealing ring to keep high vacuum degree, separate gas and liquid and maintain no backflow;
3.Adopt main and vice efficient condenser, there has automatic switching device between vice condenser and receiving bottle. Below receiving bottle, equipping with tapping valve, which makes it convenient to recycle solvent and the recovery rate approach to 100%;
4.Rotary bottle is connected by nut, that is easy to install and dismount;
5.Continuously charging and recycling material;
6.Vacuum system is equipped with vacuum meter, choose best working vacuum degree to low boiling point materials;
7.Heating kettle is applicable for both water and oil, digital thermostat control and manual up and down, closed resistance wire heater, temperature control by K type transducer. Besides, heating groove can move left and right;
8.Has the function of dry burning resistant protection and safe temperature loop;
9.Smooth starting, can positive and negative inversion operate;
10.Durable design, can choose plate bursting disk glass component as needed.

Corollary Equipment

50 L Vacuum Distillation Factory Price Of Industrial Evaporator 4

1. Rotary vacuum evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
2. Rotary vacuum evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
3. Rotary vacuum evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.

Related Products
FAQ

Q: What’s the difference between vertical and inclined condenser?

A: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.



Q: What factor decides the working efficiency of  rotary evaporator price?

A: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving.



Q: How to select all kinds of  Thermal Rotary Evaporator?

A: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L’s machine is fit for lab and sample test; 5L, 10L, 20L’s machine is fit for medium experiment; 20L, 50L’s machine is fit for medium experiment and production, especially suitable for the extraction of metal ionavoiding polluted material.
