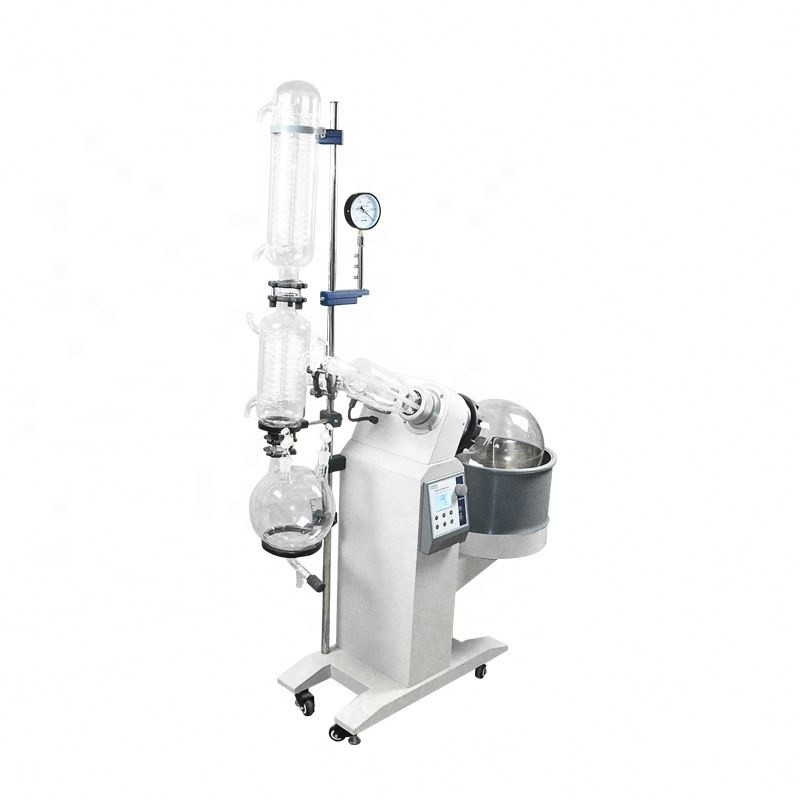

Most Advanced Chemical Distillation Equipment 10L With Chiller

Minimum Order Quantity : 1 - 2 Units Price : $2,580.00
Packaging Details : most advanced rotary evaporator manufacturer: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: ISO

Detail Information

Applicable Industries: Manufacturing Plant, Home Use, Energy & Mining After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: Bearing, Gearbox, Motor, Gear Condition: New
Power Source: Electric Process: ROTARY
Voltage: 220V/50HZ Power(W): 4.8KW
Dimension(L*W*H): 990*530*1145mm Weight: 92KG
Warranty: 1 YEAR After-sales Service Provided: Online Support
Key Selling Points: High Productivity Temperature Control(℃): Digital Temperature Contrd-180
Max Vacuum Degree(Pa): 399.9Pa(<3mmHg) Rotary Flask (L): 10L
Receiving Flask(L): 5L Name: Most Advanced Rotary Evaporator Manufacturer
Lifting Distance(mm): 0-190mm Main Engine Rotary Speed (rpm): 20-130rpm
Rotary Flask Bottleneck Size: 120mm Water Bath Size: 350*220mm
Port: Shanghai, Tianjin, Qingdao

Product Description

Product Description

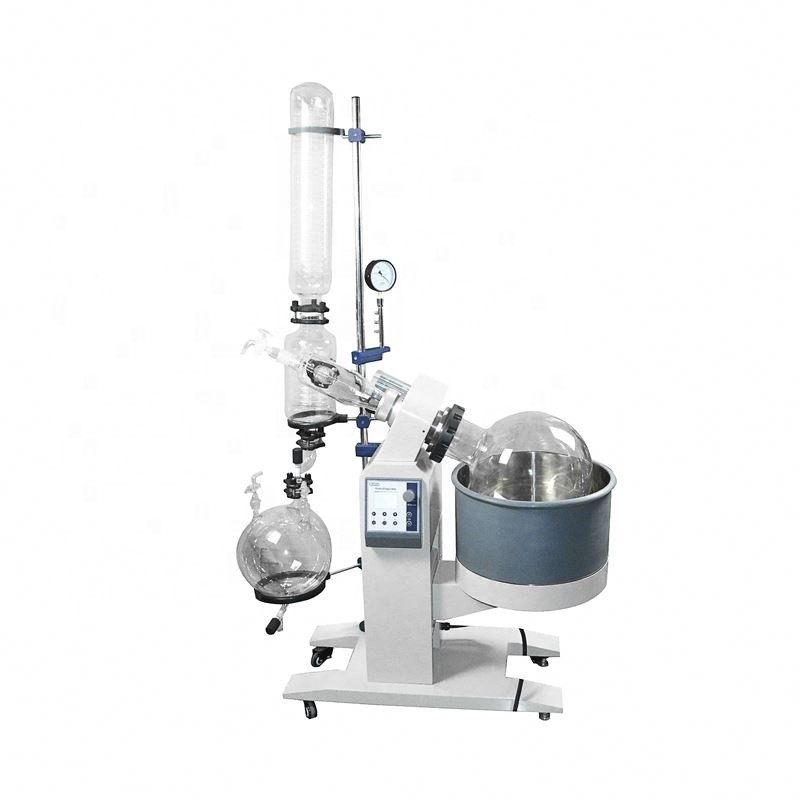

Most Advanced Chemical Distillation Equipment 10L With Chiller 0

R-1010A rotary evaporator is a newly designed rotary evaporator of our company, this series has 5L, 6L, 10L, 20L, 50L for selection.

R-1010A has new breakthroughs based on RE-1002 rotary evaporator:

1. Equip PTFE valve between condenser and receiving flask, easy operation and good sealing.
2. Check valve control, continuous charging, available for vacuum switch in working condition. The check valve also could be replaced with hand-operated valve to convenient for operation, better sealing performance.
3. The discharging valve is made from PTFE, consider of thermal expansion, other valves use glass valve element.
4. The water bath is electric lifting, lifting part use deceleration reinforcement motor, lifting process is more stable.
5. Use thicken rotary bottleneck to enhance loading bearing strength.
6. Use thicken rotary axis to enhance evaporation efficiency.
7. If the rotary evaporator sudden power lost during operation, when reconnect the power, it will automatic stop heating.

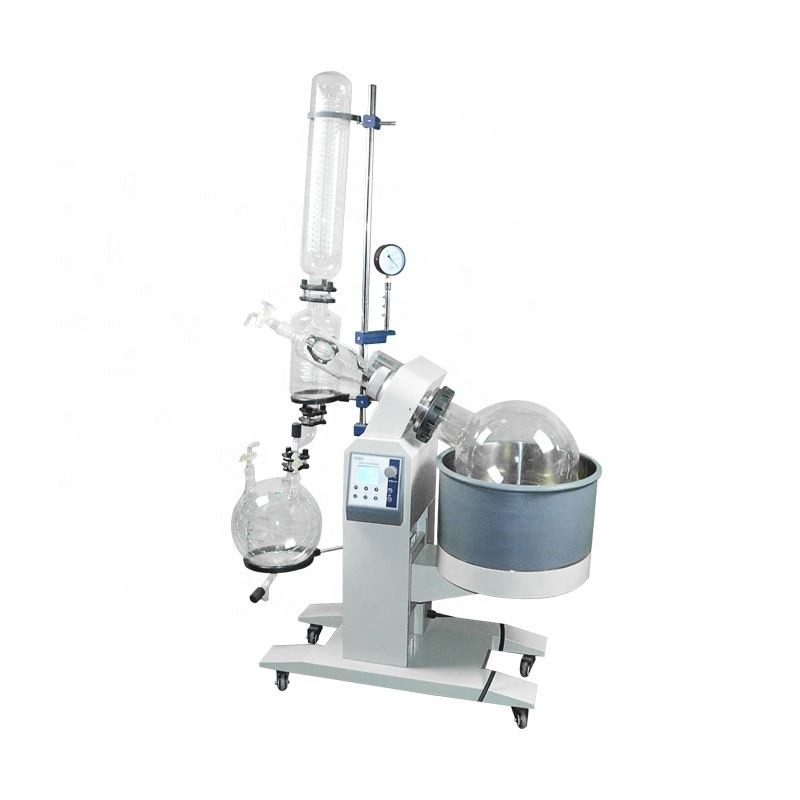

Most Advanced Chemical Distillation Equipment 10L With Chiller 1

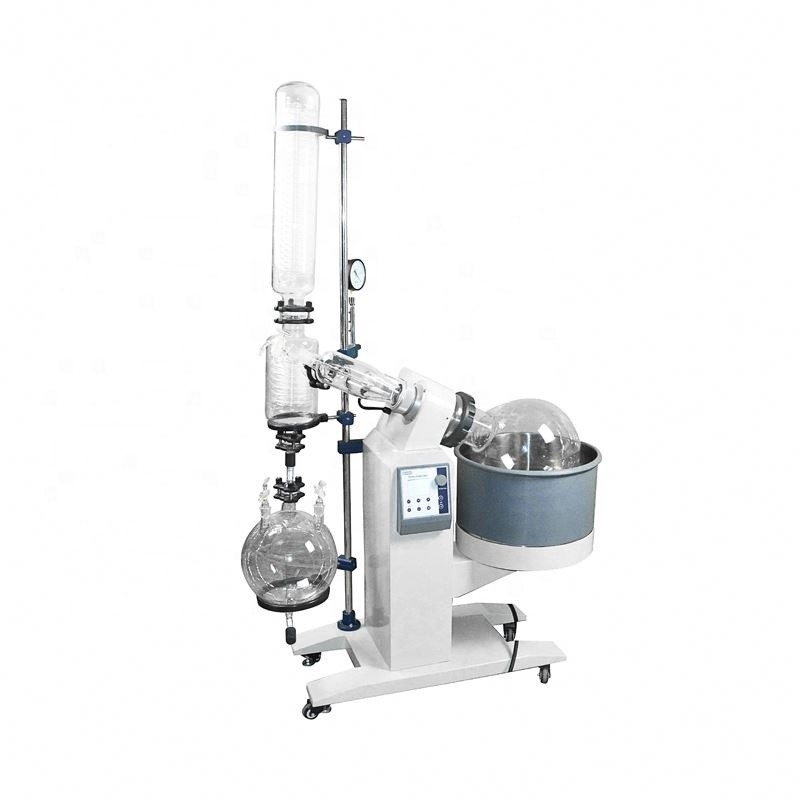

Most Advanced Chemical Distillation Equipment 10L With Chiller 2


Model R-1005A/R-1006A  R-1010A R-1020A R-1050A



Power(V/Hz) Single Phase 220V/50Hz(water bath&motor)
Single Phase 220V/60Hz(water bath&motor)
Single Phase 110V/50Hz(water bath &motor)

Single Phase 220V/50Hz
Single Phase 220V/60Hz
Three Phase 220V/50Hz(water bath),

single phase motor
Three Phase 380V/50Hz(water bath),

single phase motor

Main Engine

Speed Regulation

Digital Display Frequency conversion stepless speedregulationDigital

Display DC stepless speed regulation

Main Engine

Rotary Speed (rpm)

20 -140 20 -130 20 -110

Rotary Motor


100 250


Control (°C)

Digital display temperature control, normal temperature-180

Max vacuum

degree (Pa)

399.9(under 3mmHg)
Rotary Flask (L) 5/6 Flange 050 10 Flange 0125 20Flange 0125 50Flange 0125

Rotary Flask

Bottleneck Size (mm)

40 120

Glass Rotary

AxisSize (mm)

28 50
Receiving Flask (L) 3 5 10 20
Condenser Tube

main condenser,

double badcflow condenser

Main condenser +

subordinate condenser,

double backflow


Main condenser +

subordinate condenser,

three backflow condenser

Condensation Area 27

Main 0.42

Subordinate 0.22

Main 0.8

Subordinate 0.39

Main 0.91 Subordinate0.52


Capacity (L/h)

water≥2ethyl alcdid≥5.4


ethyl alcohd≥8.6



ethyl alcohol≥24.5
Water Bath Material Stainless Steel (Covered with Silicone Rubber Case)
Water Bath Size (mm) Φ300xl70 Φ350x220 Φ450^260 Φ550x320
Lifting Function Electric Lifting
Lifting Distance (mm) 0-150 0-160 0-190 0-180
Total Power(kW) 2.2 4.8 6.3 8.3


Dimension (mm)

950*450*1030 1100*500*1750 1200*600*1900 1400*700*2200

1. Special designed vacuum meter, high precision and good quality.
2. Main condenser and auxiliary condenser structure, double backflow snakelike condenser increased cooling area and promote cooling efficiency.
3. LCD screen display both temperature and rotating speed, operation is simple and convenient.
4. Flange connection make it easy to dismount, high fastening strength.
5. Rotary bottleneck and flange are thicken manufactured to improve loading bearing strength.
6. Equip with wrench to convenient for rotary flask dismantling.
7. The check valve between auxiliary condenser and receiving flask could be replaced with hand-operated valve to convenient for use, better sealing efficiency.
8. Use belt brake universal wheel, convenient and efficient.

Related Products

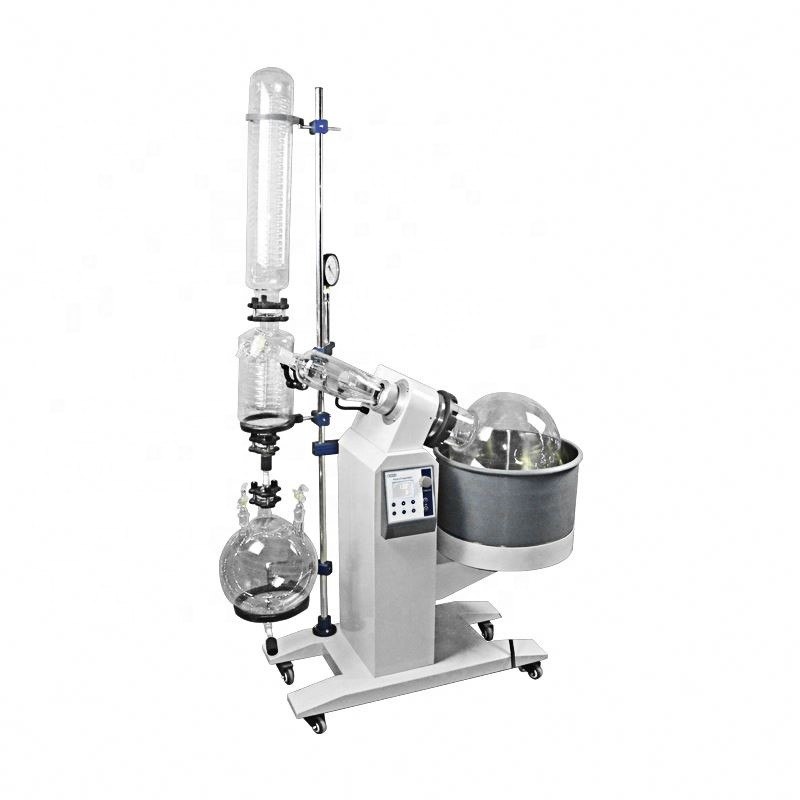

Most Advanced Chemical Distillation Equipment 10L With Chiller 3

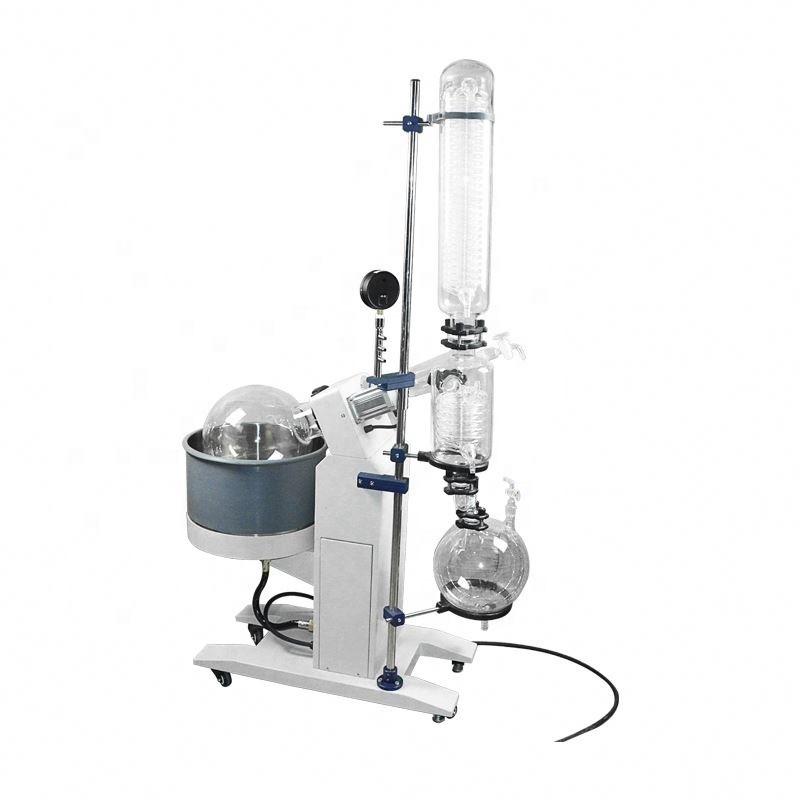

Most Advanced Chemical Distillation Equipment 10L With Chiller 4

Most Advanced Chemical Distillation Equipment 10L With Chiller 5

Corollary Equipment

Most Advanced Chemical Distillation Equipment 10L With Chiller 6

1. Rotary vacuum evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..

2. Rotary vacuum evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.

3. Rotary vacuum evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.

Company Information

Most Advanced Chemical Distillation Equipment 10L With Chiller 7


Most Advanced Chemical Distillation Equipment 10L With Chiller 8Most Advanced Chemical Distillation Equipment 10L With Chiller 9

Most Advanced Chemical Distillation Equipment 10L With Chiller 10

Most Advanced Chemical Distillation Equipment 10L With Chiller 11


1. Ask: What’s the operating principle of most advanced rotary evaporator manufacturer?
Answer: Under the condition of negative pressure, evaporating flask rotating in the thermostat water bath, which makes solution form a thin film in bottle wall, so as to increase the evaporation area. Evaporating efficiently under low temperature, then condensate recycling through condenser pipe and concentrate to isolate the material to reach experiment requirements.

2. Ask: What’s the core technology of most advanced rotary evaporator manufacturer?
Answer: The key is system’s gas tightness, that is whether system can keep high vacuum degree under all sorts of solvent’s corrosion and movement state. Henan Lanphan’ s R series instrument, which is sealed by composite material four fluorine rubber and glass, can stand all sorts of solvent, has reliable gas tightness and can maintain a high vacuum degree above -0.096MPa.

3. Ask: What factor decides the working efficiency of 10l rotary evaporator with chiller and vacuum?
Answer: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving (can select cryopump to lower the temperature)
4. Ask: What’s the difference between vertical and inclined condenser?
Answer: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.

5. Ask: What’s the design basis of AAA?
Answer: It’s mainly from the consideration of convenience, safe and economical. Generally, small-size rotary evaporators below 5L use main engine rising and falling and evaporators which are above 5L use water bath kettle rising and falling.
