Commercial Centrifugal Spray Dryer Machine 10000m/H 380v

Minimum Order Quantity : 1 set Price : $11299
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-12 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: HF-10

Detail Information

Product Name: Large Spray Dryer Centrifugal Nozzle Speed: 22000rpm
Water Evaporation (ml/h): 10kg/h Maximum Feeding Capacity (ml/h): 10000
Minimum Feeding Amount (ml/h): 200 Total Power: 28kw/380v
High Light:

Commercial Centrifugal Spray Dryer Machine

,

10000m/H Centrifugal Spray Dryer

,

380v Centrifugal Spray Dryer Machine

Product Description

10000m/H Commercial Spray Dryer Machine



Product Application


Various fields where the production of a free powder sample is required.
HF-10L has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.



Product Parameter



Product Name Large Spray Dryer
Inlet air temperature control (℃) 180~250
Air outlet temperature control (℃) 80~90
Centrifugal nozzle speed 22000rpm
Water evaporation (ml/h) 10kg/H
Maximum feeding capacity (ml/h) 10000
Minimum feeding amount (ml/h) 200
Mode of feed Peristaltic pump regulation
Temperature control accuracy (℃) ±1
Mean drying time (s) 1~1.5
Total Power 28kw/380v
Stainless steel drying tower size (mm) Diameter1400 height 2700
Product Dimension(mm) 2500x1500x2600
Package Dimension(mm) 2600x1600x2800





Spray Drying Operation:



Before power on this spray dryer, please check with below steps:

  • Whether have installed well sealing material, and then connect tubes, in order to guarantee not let the without heating air enter into the drying chamber.
  • Lock all doors and observation hole, and check whether have leakage.
  • At the bottom of the machine body and the bottom of the cyclone separator has a pollination device, before installation should check whether the seal ring is off, must not loose and then tighten pollination. Pollination device must be clean and dry.
  • Check the centrifugal fan rotation direction is correct.
  • The regulation butterfly valve of the centrifugal fan outlet whether is open. Don't put the butterfly valve closing, otherwise will damage the electric heater and air inlet pipes, this must cause enough attention.
  • Feed pump connecting pipe is connected well, the motor and pump rotation direction whether is correct.
  • The spray head at drying chamber top position, whether cover well, in order to avoid air leakage.

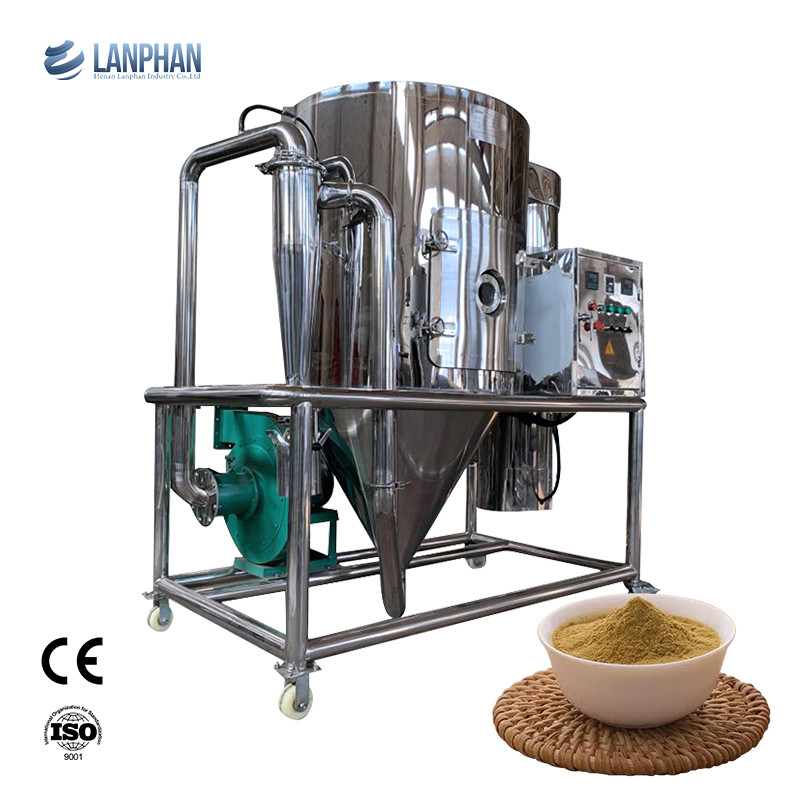

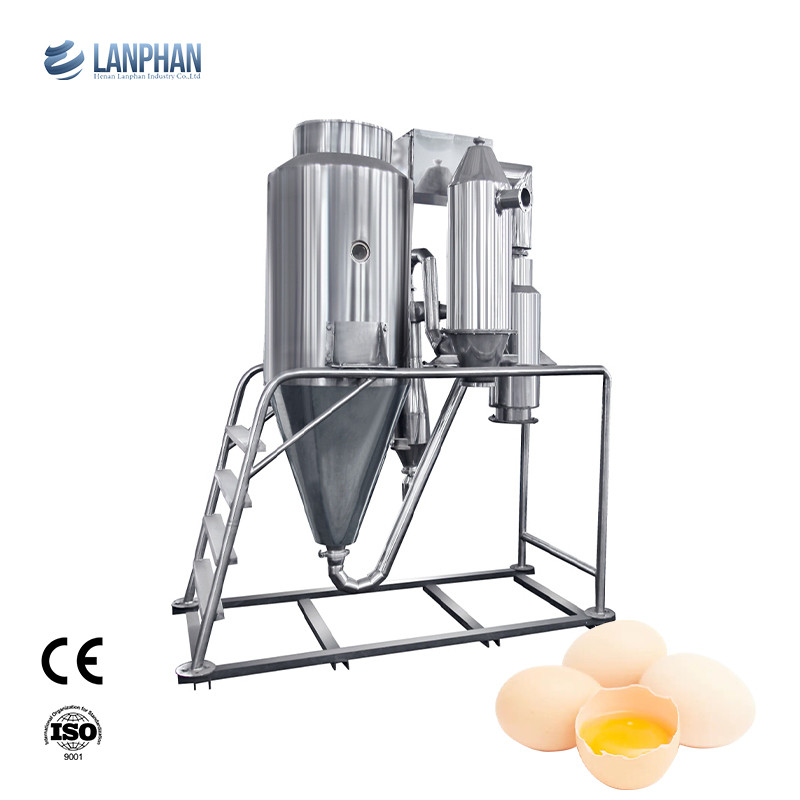

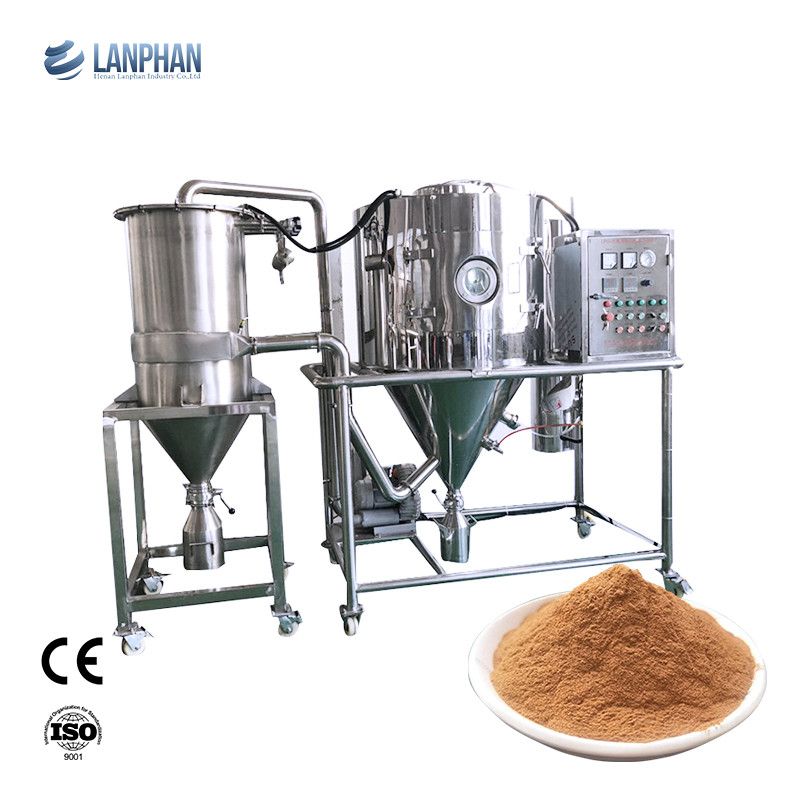

Commercial Centrifugal Spray Dryer Machine 10000m/H 380v 0Commercial Centrifugal Spray Dryer Machine 10000m/H 380v 1Commercial Centrifugal Spray Dryer Machine 10000m/H 380v 2Commercial Centrifugal Spray Dryer Machine 10000m/H 380v 3
