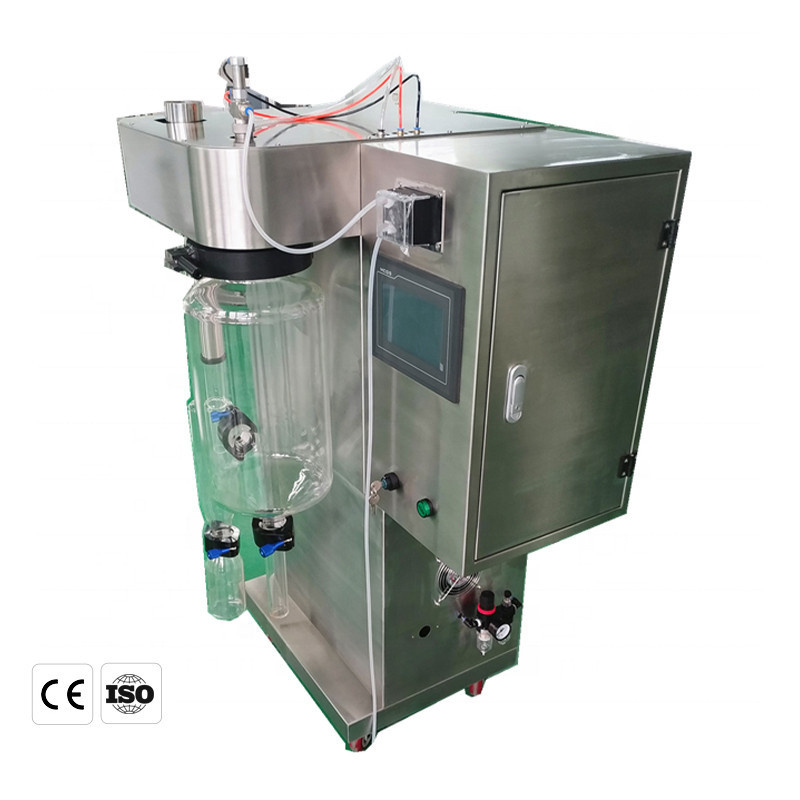

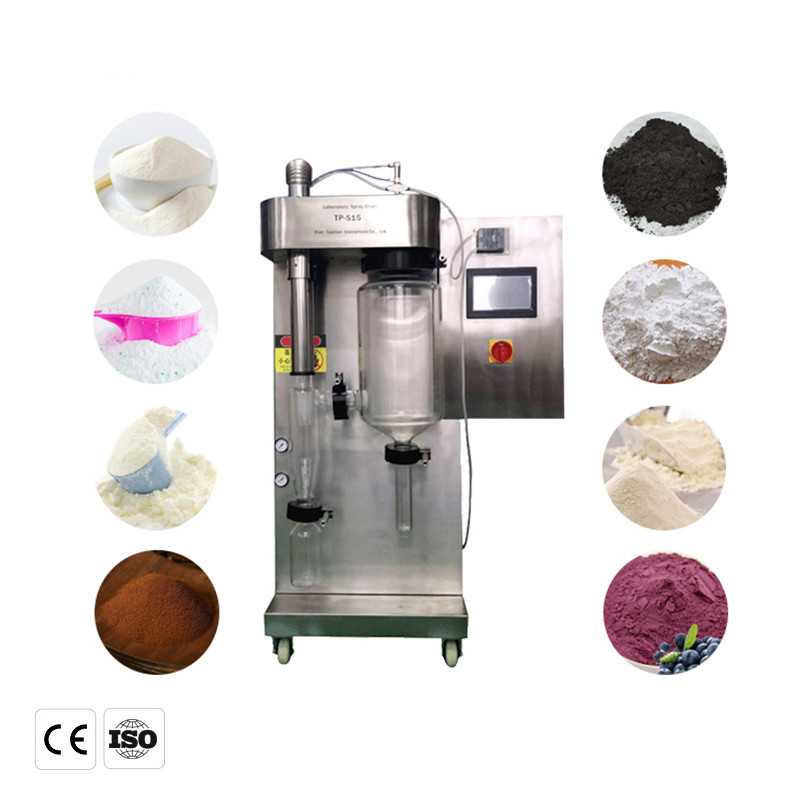

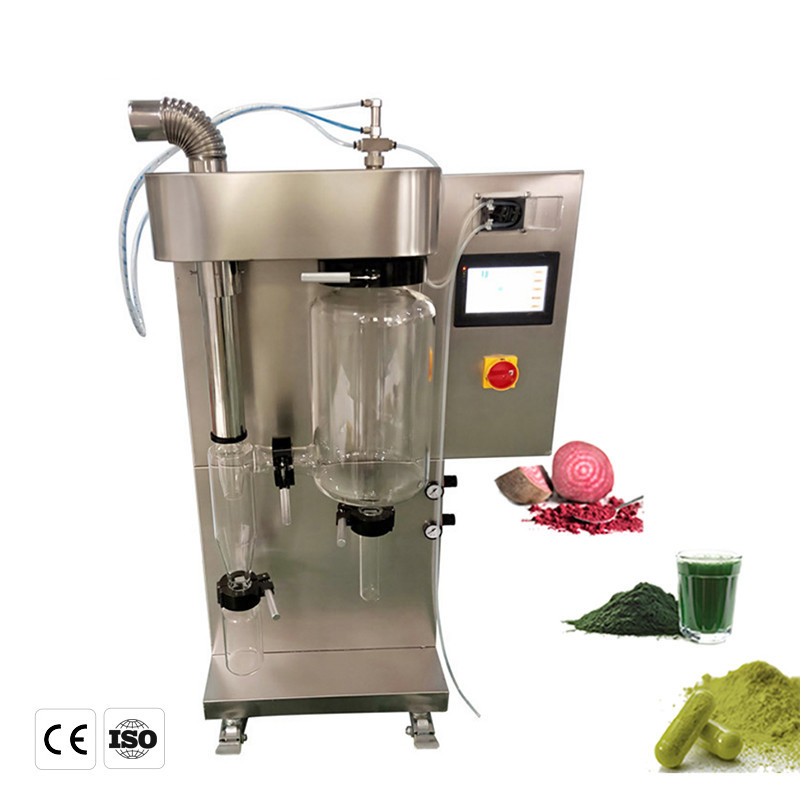

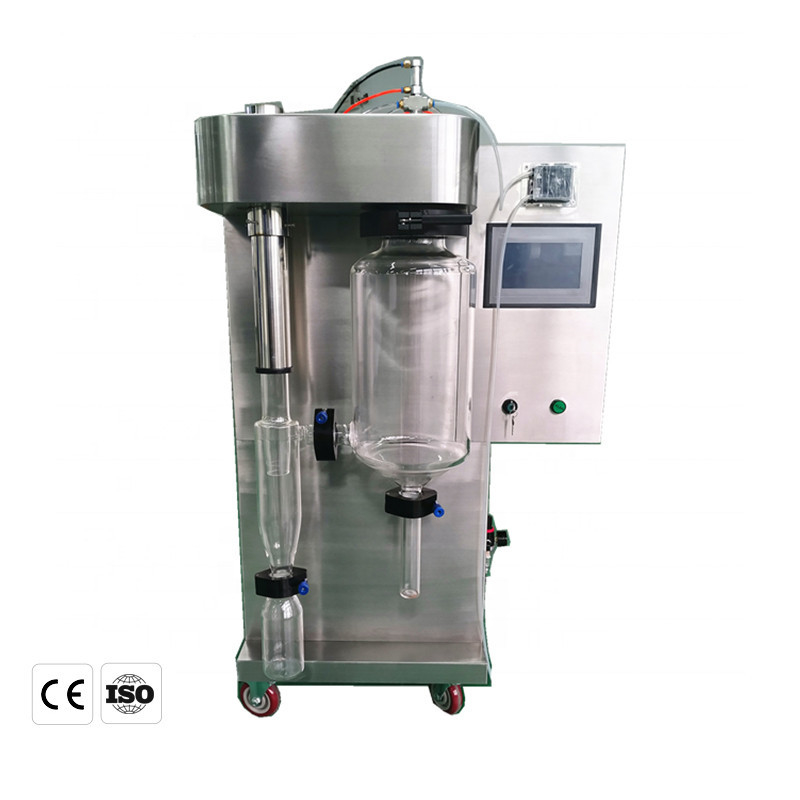

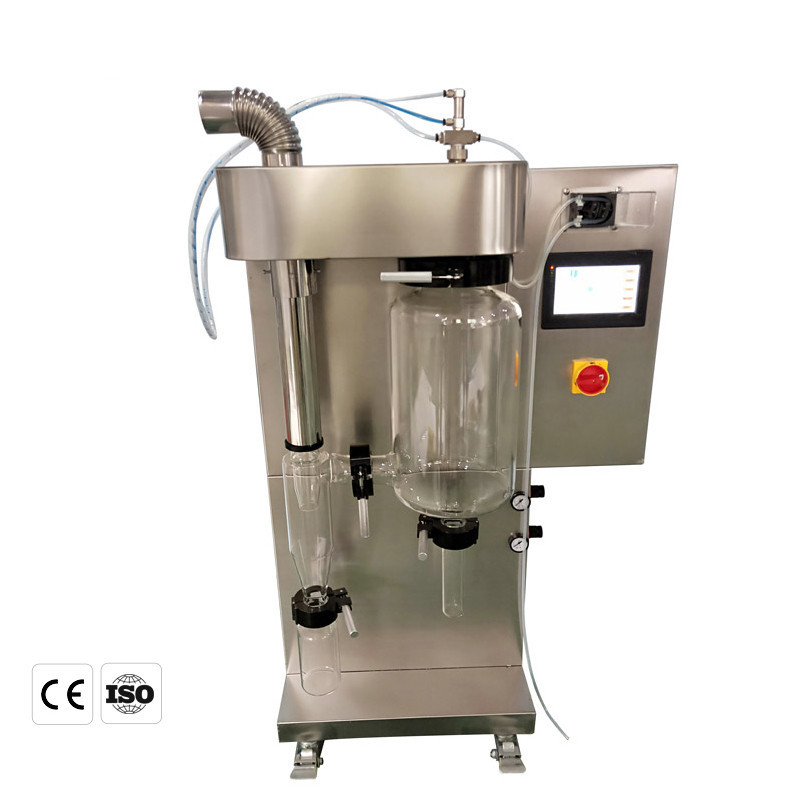

Lab Scale Atomizer Centrifugal Small Spray Dryer Mini For Milk Powder

Minimum Order Quantity : 1 set Packaging Details : Wooden Box or Customized Packing
Delivery Time : 7-15 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: 2L

Detail Information

Product Name: Small Spray Dryer Evaporation: 2000mL/H
Maximum Feeding Capacity: 2000mL/H Fan Power: 0.55kw
Maximum Air Pressure: 1020pa Air Compressor Power: 0.2kw
Nozzle Diameter: 1mm Operating Temperature: 10~40℃
High Light:

Atomizer Centrifugal Small Spray Dryer


Lab Scale Centrifugal Spray Dryer


2000mL/H Centrifugal Spray Dryer

Product Description

Spray Dryer Description


Spray dryer is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.


Spray Dryer Parameter


Air inlet temperature 30~300℃
Air outlet temperature 30~150℃
Electric heater power 3KW AC220V
Evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight 125KG


Spray dryer Features


1, fast drying speed. After centrifugal spray, the surface area of the material liquid is greatly increased. In the high temperature air stream, 95% to 98% of the moisture can be evaporated instantly, and the drying time only needs a few seconds.


2, the use of parallel flow type spray drying can make the droplet flow in the same direction with the hot air, although the temperature of the hot air is higher, but because the hot air enters the drying room immediately contact with the spray droplet, the indoor temperature drops sharply, and the wet bulb temperature of the material is basically unchanged, so it is also suitable for the drying of heat-sensitive materials.


3, a wide range of use. According to the characteristics of the material, it can be used for hot air drying, centrifugal granulation and cold air granulation. Most products with very different characteristics can be produced by this machine.


4. Because the drying process is completed in an instant, the particles of the finished product can basically maintain the spherical shape of the droplet, and the product has good dispersion, fluidity and solubility.


5. the production process is simplified, the operation and control is convenient. Spray drying is usually used for solution with solid content below 60%. After drying, there is no need for grinding and screening, which reduces the production process and simplifies the production process.


6. In order to protect the material from pollution and prolong the service life of the equipment, all parts in contact with the material are made of glass or stainless steel.


7. the feed liquid after spray, atomized into dispersed particles, surface area greatly increased, and hot air contact in a very short time can complete the drying process.


Lab Scale Atomizer Centrifugal Small Spray Dryer Mini For Milk Powder 0Lab Scale Atomizer Centrifugal Small Spray Dryer Mini For Milk Powder 1Lab Scale Atomizer Centrifugal Small Spray Dryer Mini For Milk Powder 2
