Chemical Laboratory Small Centrifugal Spray Dryer For Dry Milk Powder Herbs Fruit Juice

Minimum Order Quantity : 1 set Price : $2800

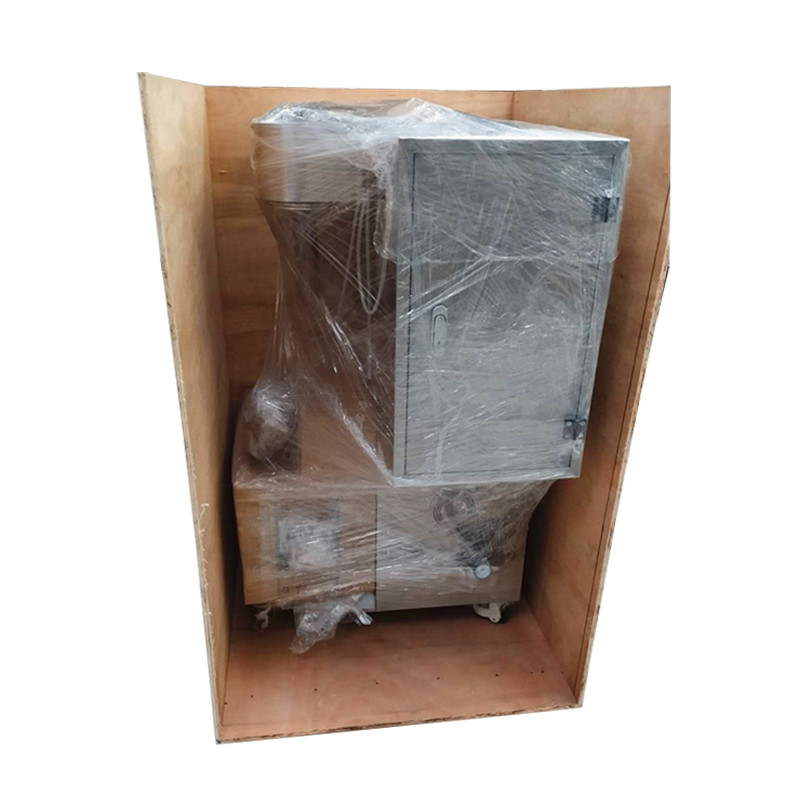

Packaging Details : Carton, wooden cases or customizable package Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: HF-2

Detail Information

Product Name: Small Spray Dryer Evaporation: 20000ml/h
Maximum Feeding Capacity: 20000ml/h Fan Power: 0.55kw
Maximum Air Pressure: 1020Pa Air Compressor Power: 0.2kw
High Light:

Laboratory Small Centrifugal Spray Dryer

,

1020 Pa Centrifugal Spray Dryer

,

Fruit Juice Centrifugal Spray Dryer

Product Description

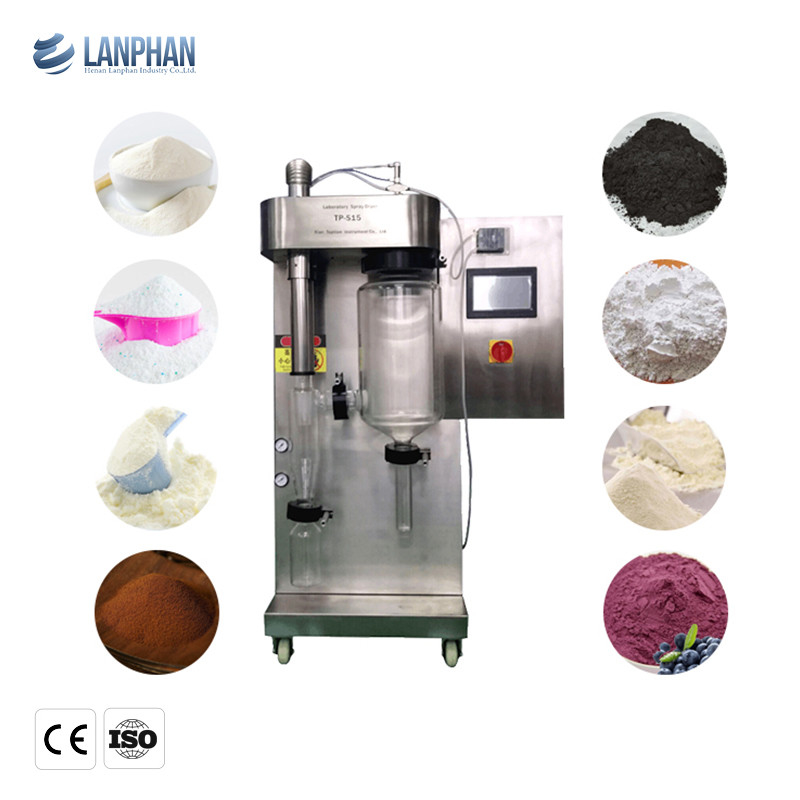

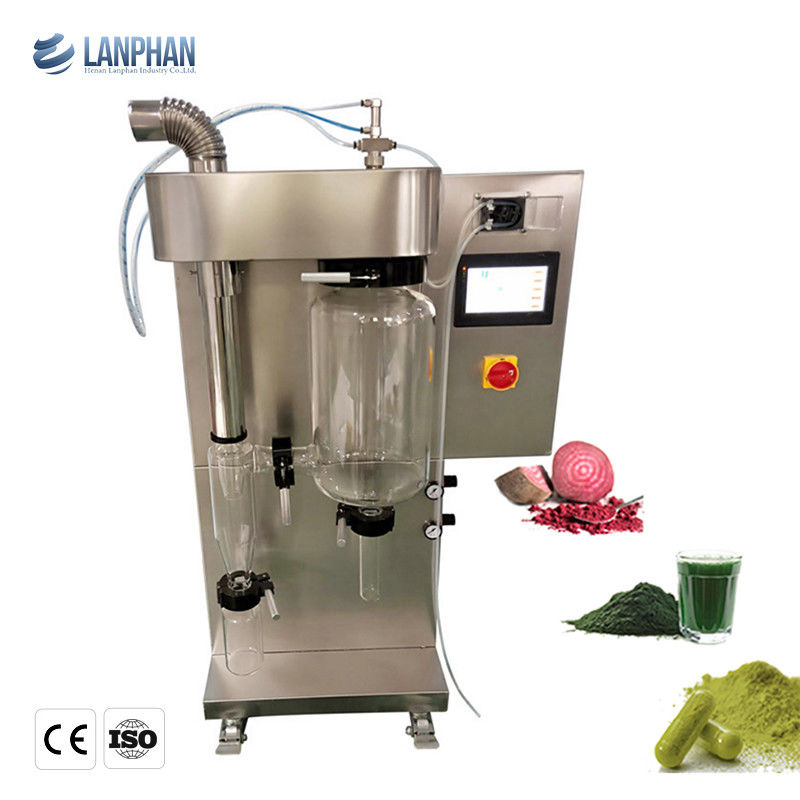

Chemical Laboratory Small Centrifugal Drying Machine Spray Dryer



Product Parameter



Air inlet temperature control 30~300℃
Air outlet temperature control 30~150℃
Electric heater power 3KW AC220V
evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight 125KG



Product Features



1. fast drying speed. After centrifugal spray, the surface area of the material liquid is greatly increased. In the high temperature air stream, 95% to 98% of the moisture can be evaporated instantly, and the drying time only needs a few seconds.



2. the use of parallel flow type spray drying can make the droplet flow in the same direction with the hot air, although the temperature of the hot air is higher, but because the hot air enters the drying room immediately contact with the spray droplet, the indoor temperature drops sharply, and the wet bulb temperature of the material is basically unchanged, so it is also suitable for the drying of heat-sensitive materials.



3. a wide range of use. According to the characteristics of the material, it can be used for hot air drying, centrifugal granulation and cold air granulation. Most products with very different characteristics can be produced by this machine.



4. Because the drying process is completed in an instant, the particles of the finished product can basically maintain the spherical shape of the droplet, and the product has good dispersion, fluidity and solubility.



5. the production process is simplified, the operation and control is convenient. Spray drying is usually used for solution with solid content below 60%. After drying, there is no need for grinding and screening, which reduces the production process and simplifies the production process.



6. In order to protect the material from pollution and prolong the service life of the equipment, all parts in contact with the material are made of glass or stainless steel.



7. the feed liquid after spray, atomized into dispersed particles, surface area greatly increased, and hot air contact in a very short time can complete the drying process.



Chemical Laboratory Small Centrifugal Spray Dryer For Dry Milk Powder Herbs Fruit Juice 0Chemical Laboratory Small Centrifugal Spray Dryer For Dry Milk Powder Herbs Fruit Juice 1Chemical Laboratory Small Centrifugal Spray Dryer For Dry Milk Powder Herbs Fruit Juice 2Chemical Laboratory Small Centrifugal Spray Dryer For Dry Milk Powder Herbs Fruit Juice 3Chemical Laboratory Small Centrifugal Spray Dryer For Dry Milk Powder Herbs Fruit Juice 4
