Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Small Lab 3kw

Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Small Lab 3kw

Electric Atomizer Centrifugal Spray Dryer

Centrifugal Atomizer Spray Dryer For Fruit

3kw Atomizer Centrifugal Spray Dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

2L

Contact Us
Request A Quote
Product Details
Product Name:
Centrifugal Spray Dryer
Electric Heater Power:
3kw
Air Inlet Temperature:
30~300℃
Air Outlet Temperature:
30~150℃
Evaporation:
2000ml/h
Maximum Feeding Capacity:
2000ml/h
Fan Power:
0.55kw
Air Compressor Power:
0.2kw
Highlight:

Electric Atomizer Centrifugal Spray Dryer

,

Centrifugal Atomizer Spray Dryer For Fruit

,

3kw Atomizer Centrifugal Spray Dryer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$3250
Packaging Details
Wooden Box or Customized Packing
Delivery Time
7-12 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Sets per Month
Product Description

Small Lab Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Juice Milk



Product Parameter



Air inlet temperature 30~300℃
Air outlet temperature 30~150℃
Electric heater power 3KW AC220V
Evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight 125KG



Spray dryer Description





Spray dryer is a drying equipment for dealing with solution, suspension or slurry material. It is used to spray the material into droplets dispersed in hot air. The material and the hot air are parallel flow, countercurrent or mixed flow of the way to contact each other, so that the moisture evaporates quickly to achieve the purpose of drying.



This drying method can eliminate the concentration, filtration, grinding and other operations, and can obtain 30~500μm granular product. The drying time is very short, generally 5~30s. Suitable for drying of high heat sensitive materials and easily dispersed materials in the process of liquid concentration.



Experimental spray dryer, compact design, self-contained, no other facilities can be run.

One-click startup, color large LCD touch screen operation.

Fully automatic or manual monitoring two modes of operation.

It is the smallest volume, the least noise, drying effect is very excellent a spray dryer.



Spray dryer Features



1, fast drying speed. After centrifugal spray, the surface area of the material liquid is greatly increased. In the high temperature air stream, 95% to 98% of the moisture can be evaporated instantly, and the drying time only needs a few seconds.



2, the use of parallel flow type spray drying can make the droplet flow in the same direction with the hot air, although the temperature of the hot air is higher, but because the hot air enters the drying room immediately contact with the spray droplet, the indoor temperature drops sharply, and the wet bulb temperature of the material is basically unchanged, so it is also suitable for the drying of heat-sensitive materials.



3, a wide range of use. According to the characteristics of the material, it can be used for hot air drying, centrifugal granulation and cold air granulation. Most products with very different characteristics can be produced by this machine.



4. Because the drying process is completed in an instant, the particles of the finished product can basically maintain the spherical shape of the droplet, and the product has good dispersion, fluidity and solubility.



5. the production process is simplified, the operation and control is convenient. Spray drying is usually used for solution with solid content below 60%. After drying, there is no need for grinding and screening, which reduces the production process and simplifies the production process.



6. In order to protect the material from pollution and prolong the service life of the equipment, all parts in contact with the material are made of glass or stainless steel.



7. the feed liquid after spray, atomized into dispersed particles, surface area greatly increased, and hot air contact in a very short time can complete the drying process.

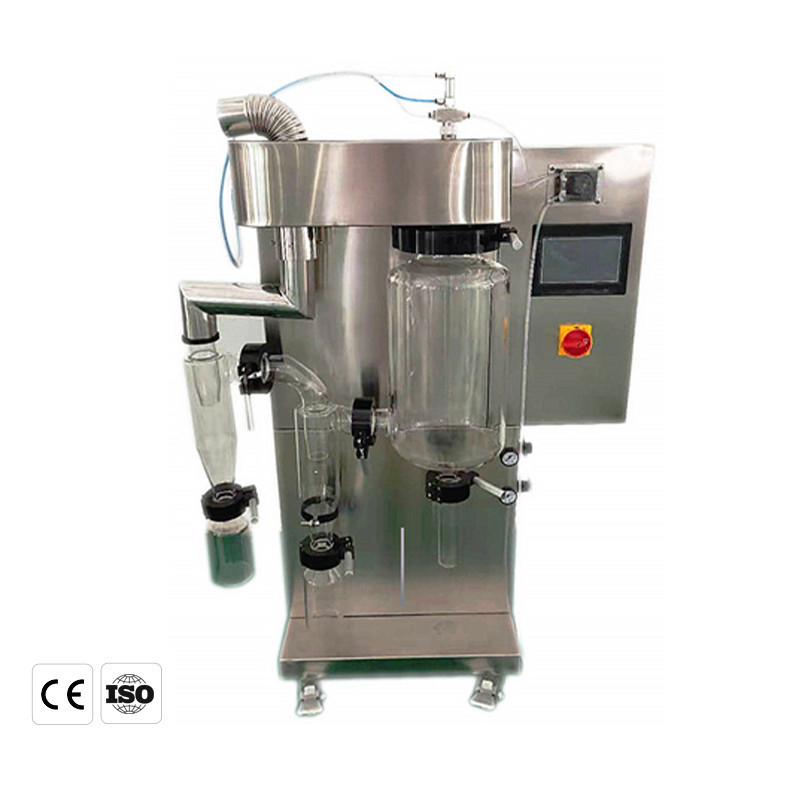

Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Small Lab 3kw 0

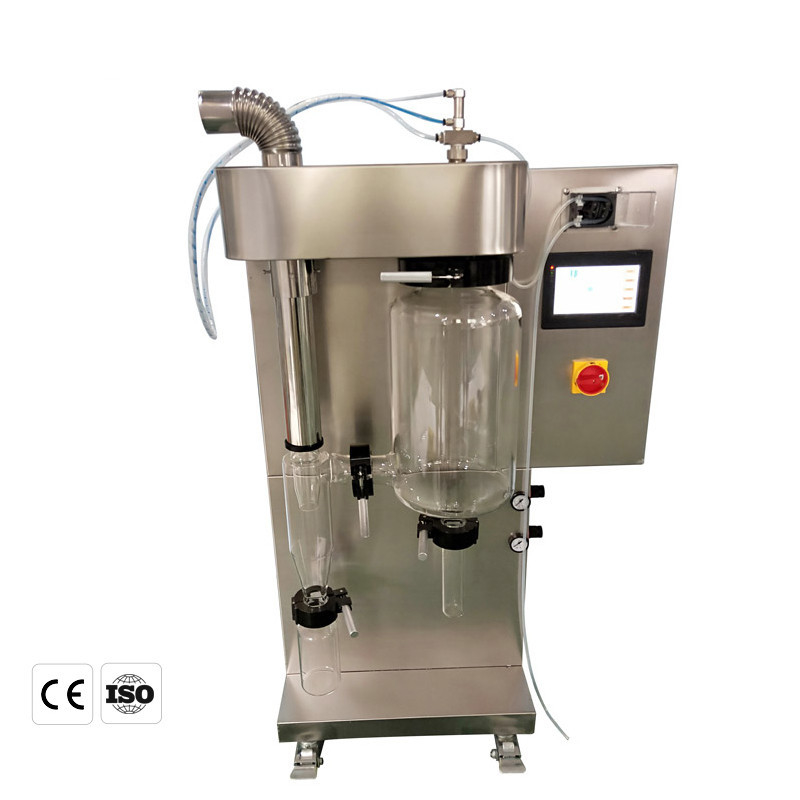

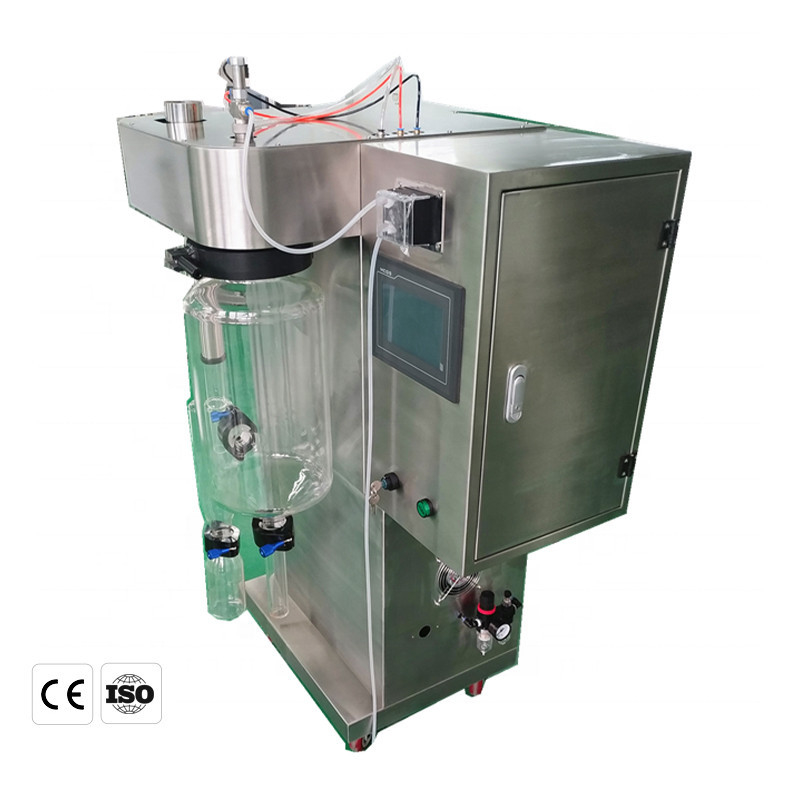

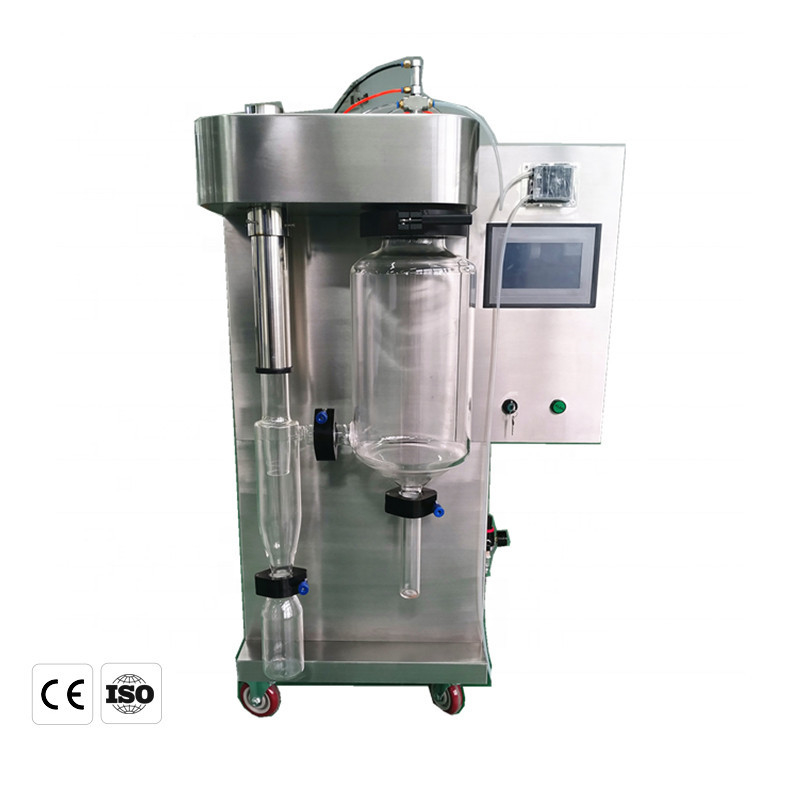

Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Small Lab 3kw 1Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Small Lab 3kw 2Mini 2L Electric Atomizer Centrifugal Spray Dryer For Fruit Small Lab 3kw 3
