250W Lab Rotary Evaporator
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 | Price : | $560.00 |
|---|---|---|---|
| Packaging Details : | Carton, wooden cases or customizable package | Delivery Time : | 5-8 work days |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 1000 Unit/Units per Month |
| Place of Origin: | Henan | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | CE | Model Number: | RE-501 |
|
Detail Information |
|||
| Power Source: | Electric | Voltage: | 220V/110V |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Glass Material: | GG-17 | Weight: | 38kg |
| Rotating Speed: | 0-120rpm | ||
| High Light: | RE-501 Electric Laboratory Distiller,RE-501 Rotary Evaporator Eqipment,Water Baths re 501 rotary evaporator |
||
Product Description

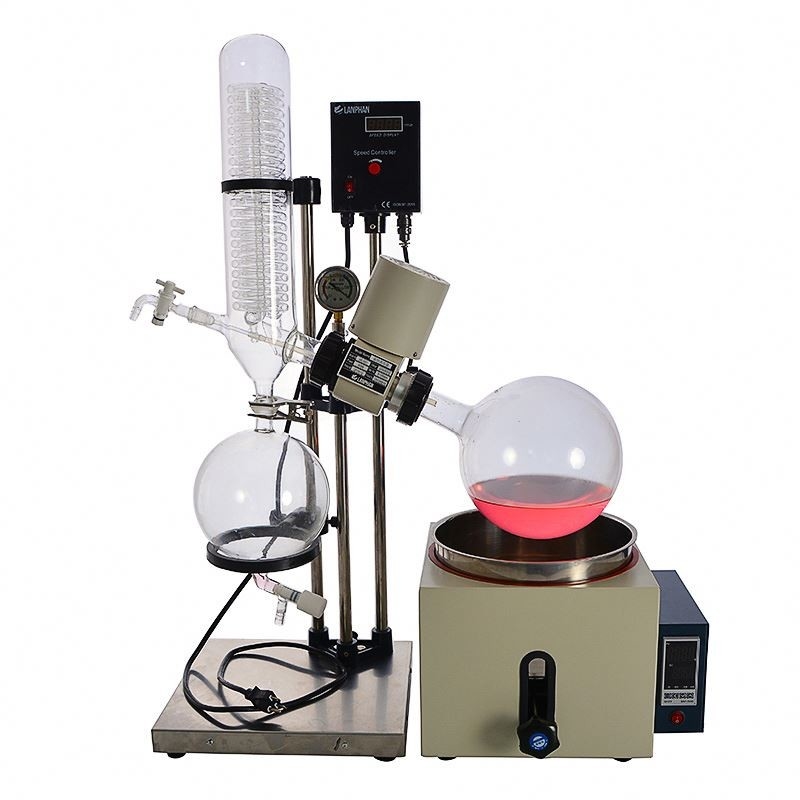

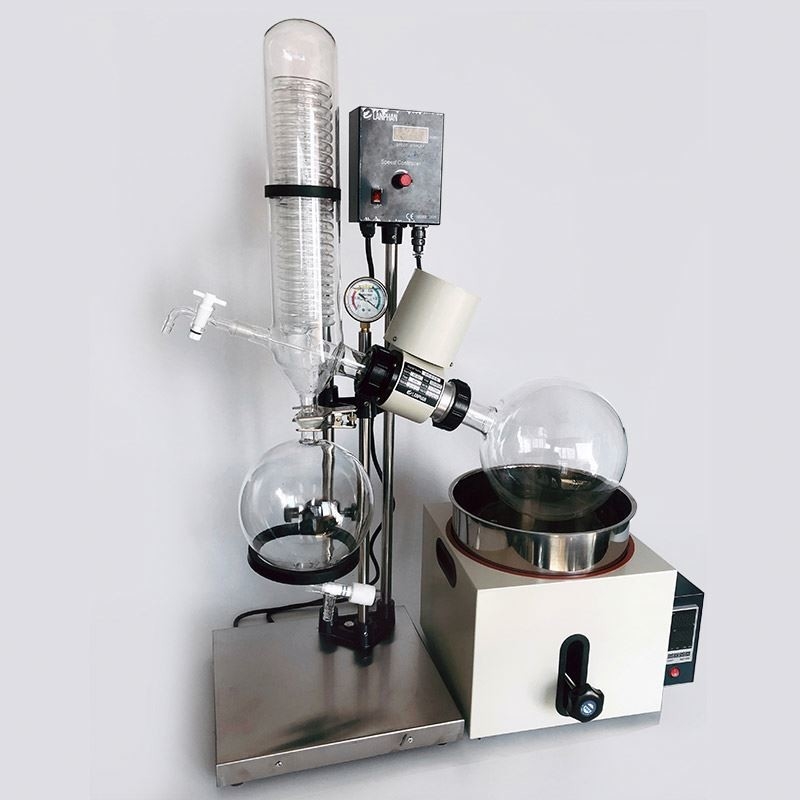

RE-501 Electric Laboratory Distiller Small Water Baths Rotary Evaporator Eqipment
Product Description
RE-501 rotary evaporator’s maximum capacity is 5000ml, rotate speed is 5-120r.p.m, motor power is 40W. RE-501 rotary evaporator is the basic rotary evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component. The digital display rotate speed and heating kettle’s temperature helps you optimally control all distillation process. New type fixation system greatly simplified the operation process of changing evaporating flask.
Related Products
Product Details
Technical Parameters
| Basic Parameter | Type | RE-501 |
| Glass Material | GG-17 | |
| Support Material | stainless steel | |
| Shell Material | Antisepsis Plastic Spraying 310*320*240mm | |
| Inner Container Material | stainless steel 280*170mm | |
| Baseboard Size | 350*330mm | |
| Volume of Rotary Bottle | 5L ¢50 flange aperture | |
| Volume of Recycling Bottle | 3L 35# ground aperture | |
| Vacuum Degree | 0.098Mpa | |
| Rotating Power | 40W | |
| Rotating Speed | 0-120rpm | |
| Heating Power | 2KW | |
| Temperature Control Range of Bath Kettle | 400°C | |
| Temperature Accuracy | ±1°C | |
| Voltage/Frequency (V/Hz) | 220V/50Hz | |
| Up and Down Distance | 120mm | |
| Shape Size(mm*mm*mm) | 700*335*1009mm | |
| Package Size(mm*mm*mm) | 1040*620*410 0.26 m³ | |
| Package Weight (KG) | 38 | |
| Function Allocation | Speed Adjustment Mode | Electrodeless Speed Regulation |
| Rotate Speed Display Mode | Digital Display | |
| Temperature Display Mode | Digital Display K Type Sensor | |
| Temperature Control Mode | Smart Temperature Control | |
| Sealing Mode | PTFE Sealing | |

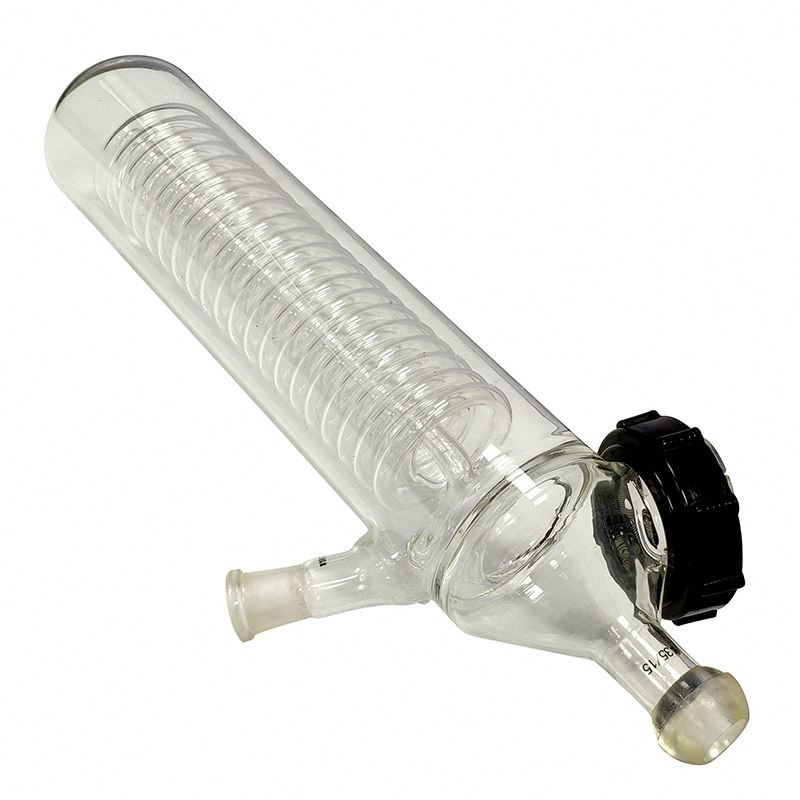

| Condenser | Vertical Condenser 100*510mm 29#Standard Aperture | |
| Up and Down Mode | Manual Up and Down of Bath Kettle | |
| Continuous Charging | Standard Aperture Feeding Valve | |
| Vacuum Display Mode | Vacuum Meter | |
| Optional Equipping | Anti-splash Device | Equipping Transparent Cover of Bath Kettle |
| Anti-explosion | Anti-explosion Frequency Changer, Anti-explosion Dynamo EX40We | |
| Frame Part | Plastic Spraying or PTFE Spraying | |
| Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements. | ||
