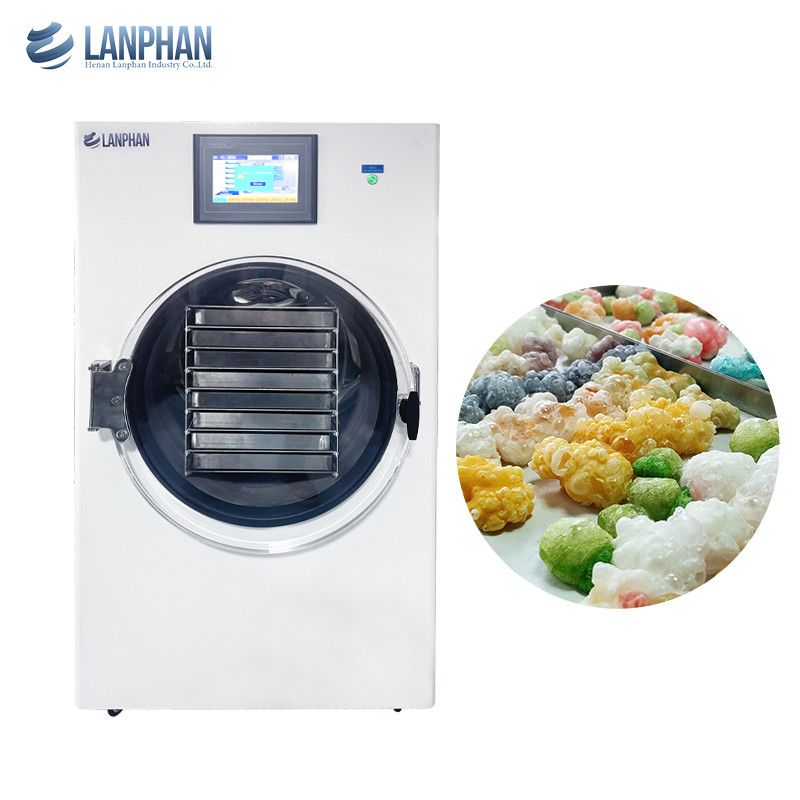

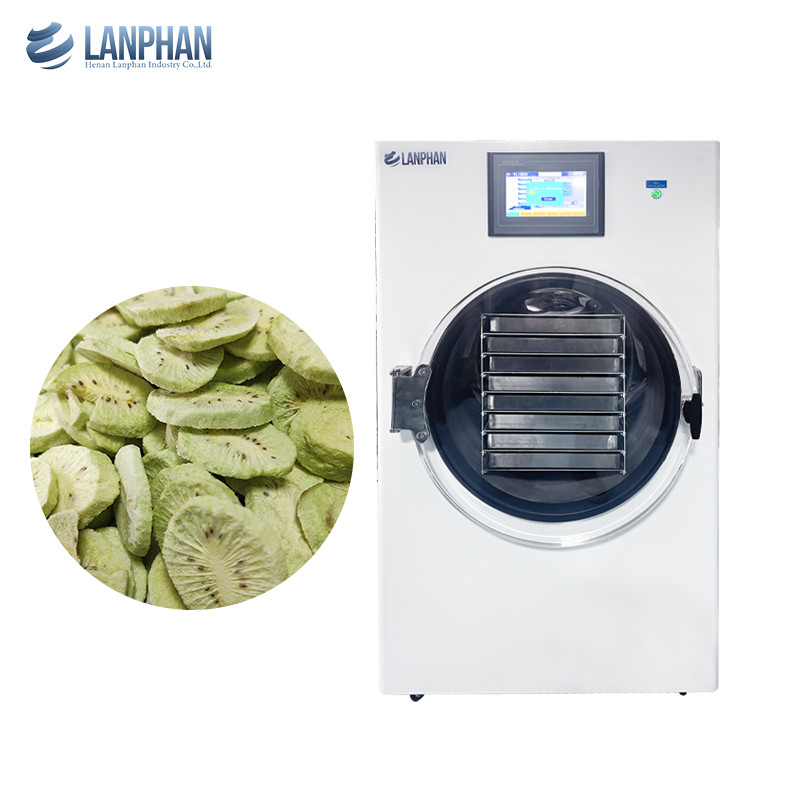

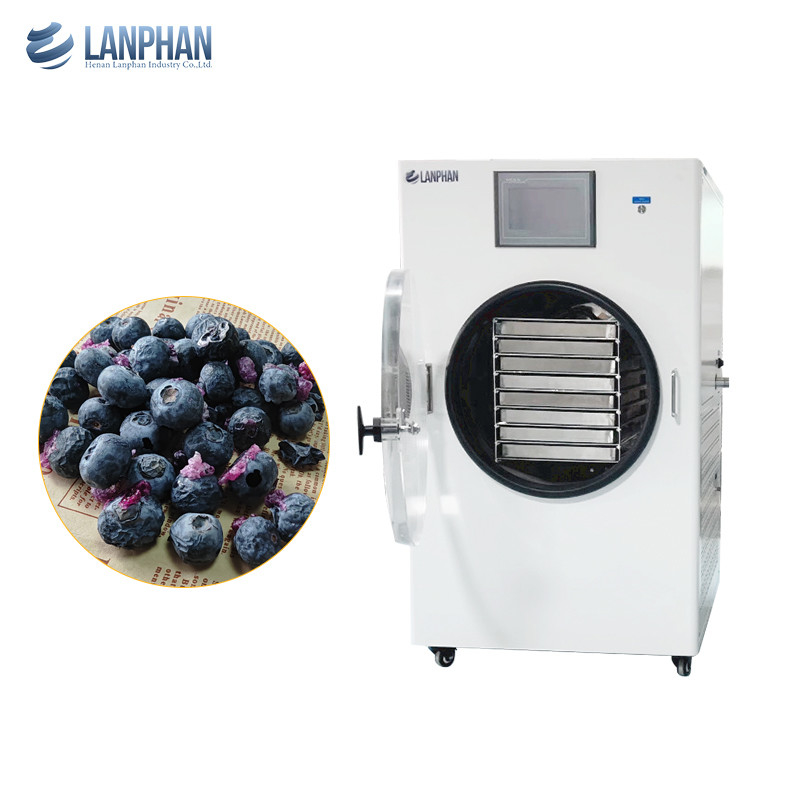

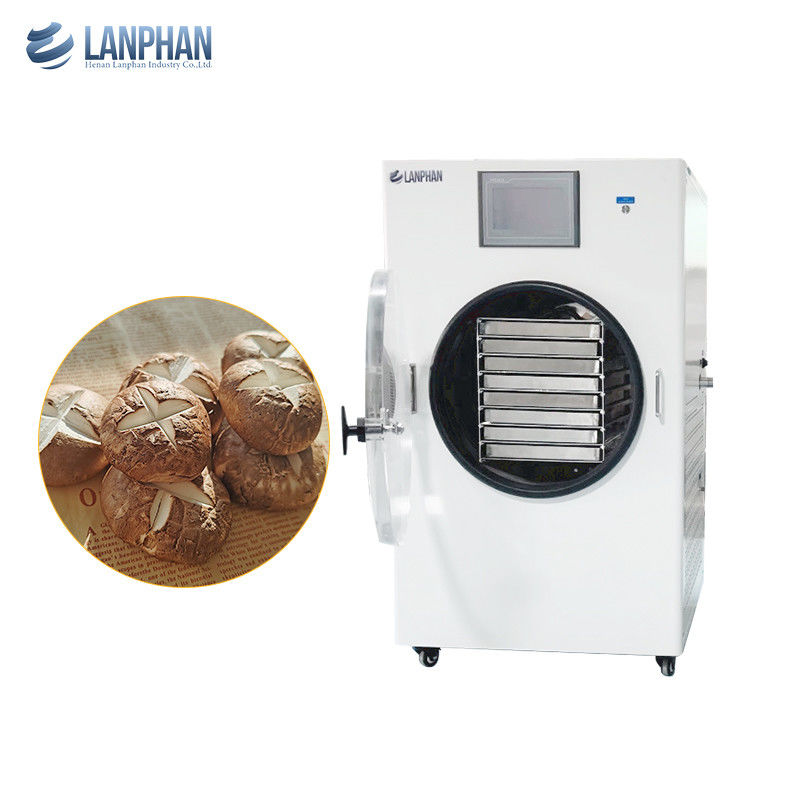

1m2 8 Layers Vacuum Drying Equipment With Oil Mist Filter

Product Description

Main features

• The machine adopts Danfoss compressor, rapid cooling
• LCD screen control, easy to operation, and powerful function
• The door of the drying chamber is made of colorless and transparent organic glass, allowing the entire freeze-drying process to be observed.
• The vacuum pump adopts international standard KF quick connector connection.
• Stable performance, easy operation and low noise.

Product application

Vacuum freeze drying technology, also known as sublimation drying, is a method of pre-freezing water-containing substances and sublimating the water under vacuum. The original biological and chemical properties of freeze-dried products remain basically unchanged and are easy to store for a long time. After adding water, it can be restored to the state before freeze-drying and maintain its original biochemical characteristics. Therefore, vacuum freeze-drying technology is widely used in medicine, food, chemical industry, biological products and other fields.Freeze-dried food can be stored for up to 25 years. Freeze-dried food is ideal for home storage.

The samples with high acid or solvent content can not be dried in the absence of special protection (if necessary, please contact the service department), otherwise the freeze dryer may be corroded. When drying containing azide should pay more attention to it, because with copper or other non ferrous metal reaction will explode.

Product parameter

Attentions

1. Must use a grounded power outlet.
2. Working environment temperature≤32℃, the humidity≤80%.
3. After drying finished, open the vent valve to inflate air at first, then close the vacuum pump to prevent sample contaminated by the pump oil. If a sudden power outage, open the vent valve immediately, and take out the samples as soon as possible, properly stored.
4. Keep the seal ring clean, and cannot Scrub with organic solvents.
5. Replace the vacuum pump’s oil after working 100 hours, check and maintenance the pump regularly.
6. Do not frequently switch power supply and refrigerator, If the refrigerator is shut down caused by operation, at least three minutes to wait, and then restart the refrigerator

Product details

High power vacuum pump
Pure copper motor, strong power
LCD touch screen
Multiple functions and easy to operation
Independent probe
Each of the floors has independent probes for temperature measurement
Auto defrosting
Fast defrosting function, more efficient
Glass doorappearance upgradea
Thickened see-through door for stronger sealing

Our Factory

Related product

Packing & Shipping
