Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder

Product Details:
Place of Origin: China
Brand Name: Lanphan
Certification: contact us
Model Number: LPSD-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $3650.00 - $3850.00/unit
Packaging Details: Custom wooden case packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram...
Supply Ability: 600 Units/Month

Detail Information

Product Name: Milk Spray Dryer Type: 3L Two-fluid Milk Spray Dryer
Feeding way: Peristaltic Pump Electric Heating Power: 5KW
Power: 7kw/220v Evaporated Water: 3000ml/h
Dryer Time: 1.0 ~ 1.5 S Draught Fan: 0.55KW 100m³/h
Application: Make Milk Powder
High Light:

Two Fluid Milk Spray Dryer

,

Milk Spray Dryer 3L/H

Product Description

Small Scale Nozzle 3L/H Two-Fluid Milk Spray Dryer For Make Egg Whey Milk Powder

Milk Spray Dryer Atomizer

Product name 3L stainless steel Milk Spray Dryer
Air inlet temperature control 30~300℃
Air outlet temperature control 30~140℃
Evaporated water 3000ml/h
The largest feed rate 3000ml/h(adjustable)
Feeding way Peristaltic pump adjustment
Nozzle diameter 1.00mm/0.04inch (optional)
Dryer time 1.0 ~ 1.5 S
Total power 7KW /220V
Draught fan 0.55KW 100m³/h
Air compressor power 1.2KW 108L/min
Electric Heater Power 5KW
Package dimension (L*W*H) 800*800*1450(mm)/31.50*31.50*57.09(inch)
Package Weight 148KG(326.28lbs)



Milk Spray Dryer Main features:

  • The atomization structure of the two-fluid spray is made of high-quality stainless steel. It has a compact design and requires no additional equipment.
  • The design of drying temperature control adopts real-time PID constant temperature control technology to achieve accurate temperature control in the entire temperature zone and a heating temperature control accuracy of ±1°C.

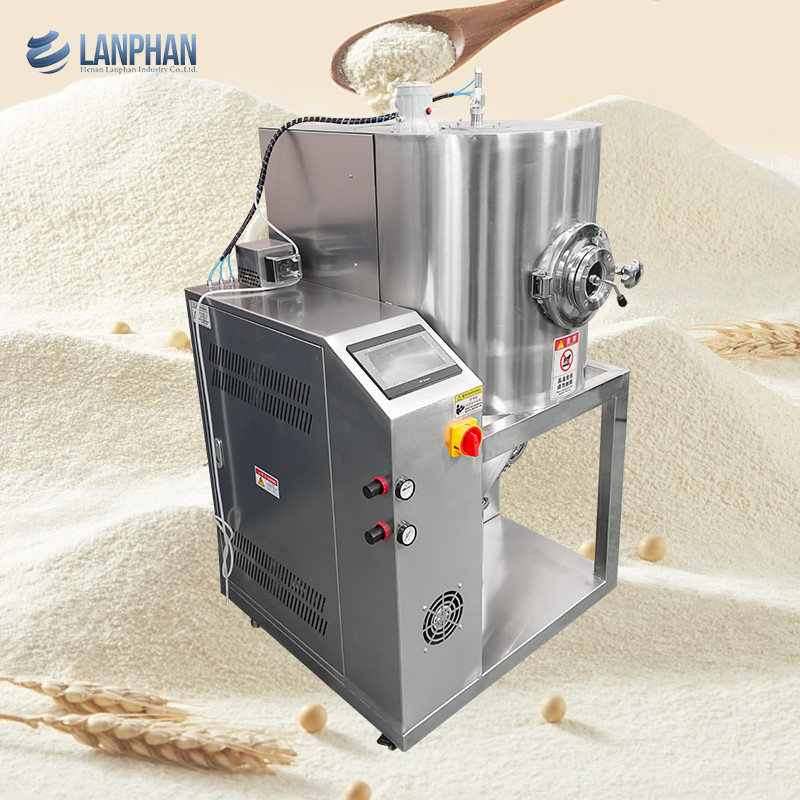

Milk Spray Dryer Description



Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder 0

Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder 1

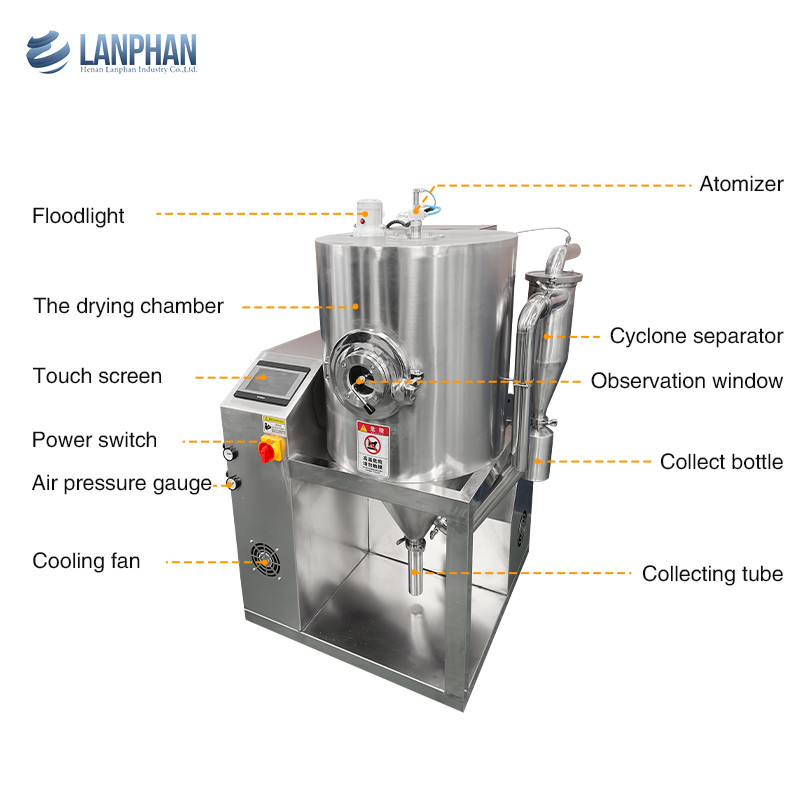

Milk Spray Dryer Structure

Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder 2

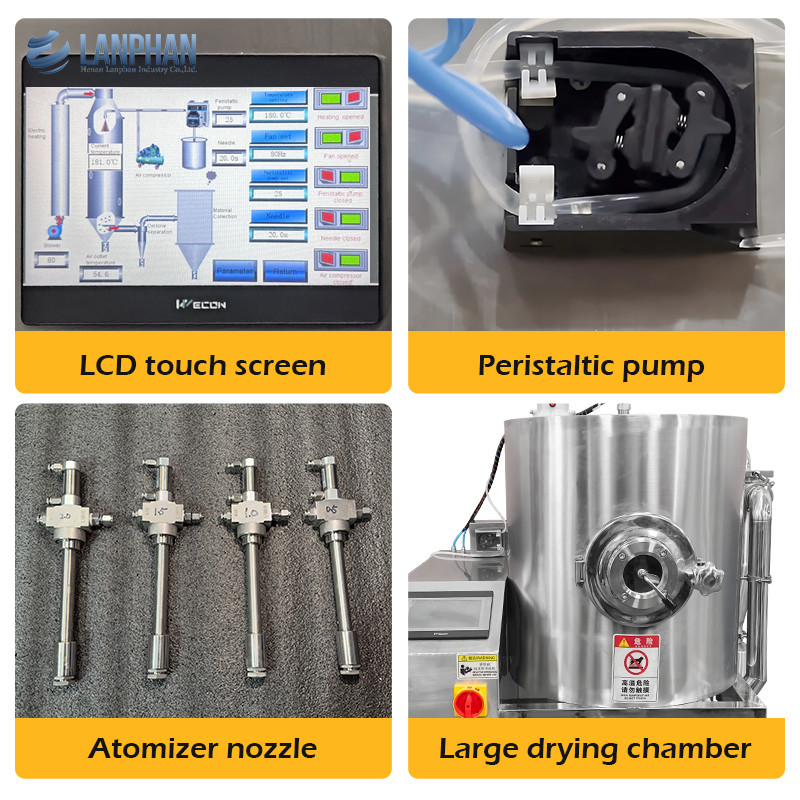

Milk Spray Dryer Details



Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder 3

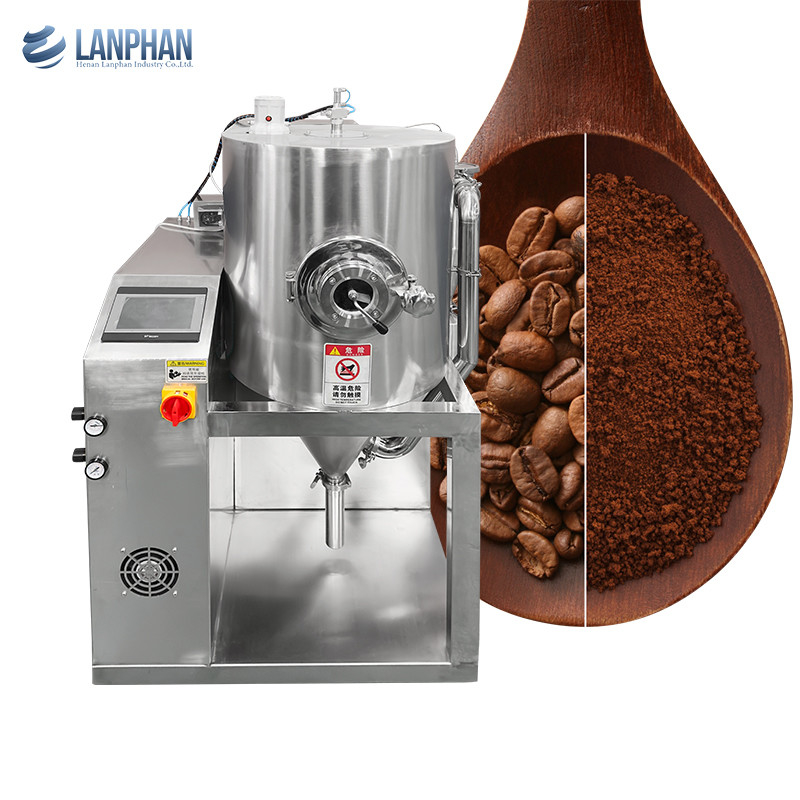

Milk Spray Dryer Application

Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder 4

Milk Spray Dryer Factory

Small Scale Nozzle 3L/H Two Fluid Milk Spray Dryer For Make Egg Whey Milk Powder 5
