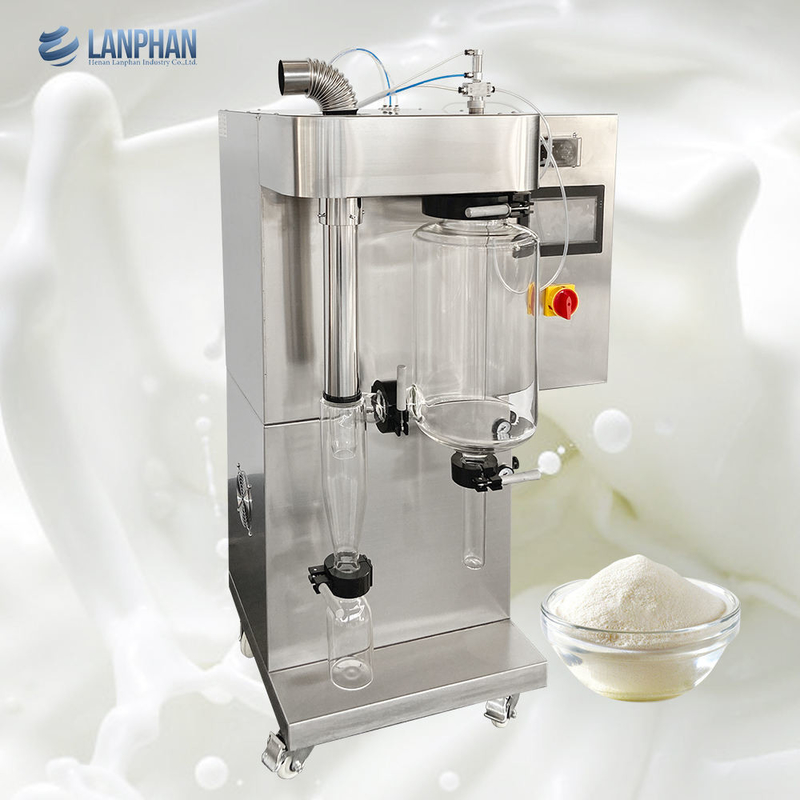

110V Lab Scale Spray Dryer Machine Atomizer Milk Powder 2000mL/H

Product Details:
Place of Origin: Henan, China
Brand Name: Lanphan
Certification: CE ISO
Model Number: HF-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,490.00-$3,000.00
Packaging Details: Wooden Box or Customized Packing
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Units per Month

Detail Information

Product Name: Spray Drying Equipment Voltage: AC220V
Power: 3KW Dimension: 800 X 650 X 1300 ( Mm )
Heating Method: Electric Heating Material: SUS304
Evaporation: 2000mL/H Electric Heater Power: 3KW AC220V
Maximum Air Pressure: 1020Pa Air Compressor Power: 0.2KW
High Light:

Lab Scale Spray Dryer Machine


110V Spray Dryer Machine


2000mL/H vacuum spray dryer

Product Description

Lab Scale Mini Spray Dryer Equipment For Protein Whey Detergent Powder

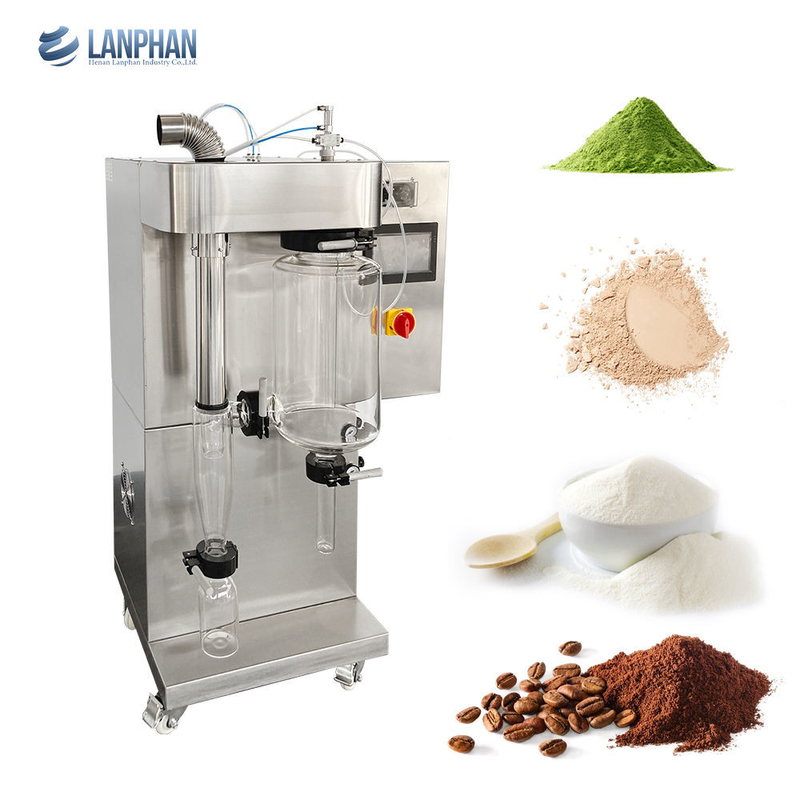

Spray Dryers Application
1. Food Industry: Used for preparing products like milk powder, coffee powder, fruit juice powder, spice powders, and more.
2. Pharmaceutical Industry: Used for preparing drug particles, drug coatings, formulations, and drug carriers.
3. Chemical Industry: Used for preparing particles of chemicals, pigments, dyes, catalysts, and more.
4. Environmental Applications: Used for processing wastewater and liquids, converting them into solid waste for disposal.
5. Ceramic Industry: Used for preparing ceramic powders for ceramic manufacturing processes.

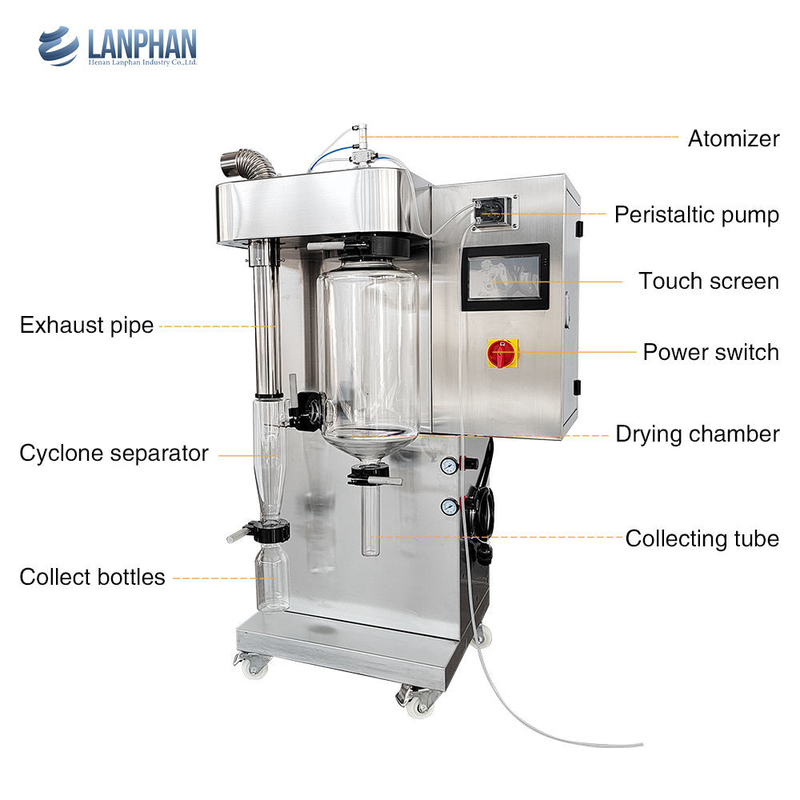

Spray Dryer Principle

1. Liquid Atomization: Firstly, the liquid feedstock (which can be liquid, suspension, solution, or slurry) is introduced into the feed system of the spray dryer. Typically, this feedstock undergoes pre-processing to ensure its suitability for spray drying.​


2. Atomization: The liquid feedstock is sprayed through a nozzle or atomizer at high pressure to form tiny liquid droplets or a mist, creating a spray of droplets.


3. Drying Chamber: Simultaneously, inside the drying chamber, hot air flows through at high temperatures. This hot air flow is usually generated by combustion of fuel, using hot water, or steam.


4. Rapid Evaporation: The tiny liquid droplets sprayed into the hot air are exposed to the high-temperature environment, causing the water or other volatile components in the liquid to rapidly evaporate. This results in the gradual drying of the droplets until they become solid particles.


5. Solid Particle Separation: The dried solid particles are carried out from the drying chamber, typically through an air flow, to collection equipment such as cyclone separators or filters. In these devices, the solid powder is separated, while the hot air flow is further processed or discharged.


6. Collection and Packaging: The solid powder is eventually collected and can be used for various industrial applications. It usually undergoes packaging, storage, and distribution for market use.

Spray Dryer Parameter

Air inlet temperature control30~300℃
Air outlet temperature control30~150℃
Electric heater power3KW AC220V
Maximum feeding capacity2000mL/H
Fan power0.55KW
Maximum air volume5.6m³/min
Maximum air Pressure1020Pa
Air compressor power0.2KW
Nozzle diameter1.00mm
Operating Temperature10~40℃
Dimension800 x 650 x 1300 ( mm )
