Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LPIA-06

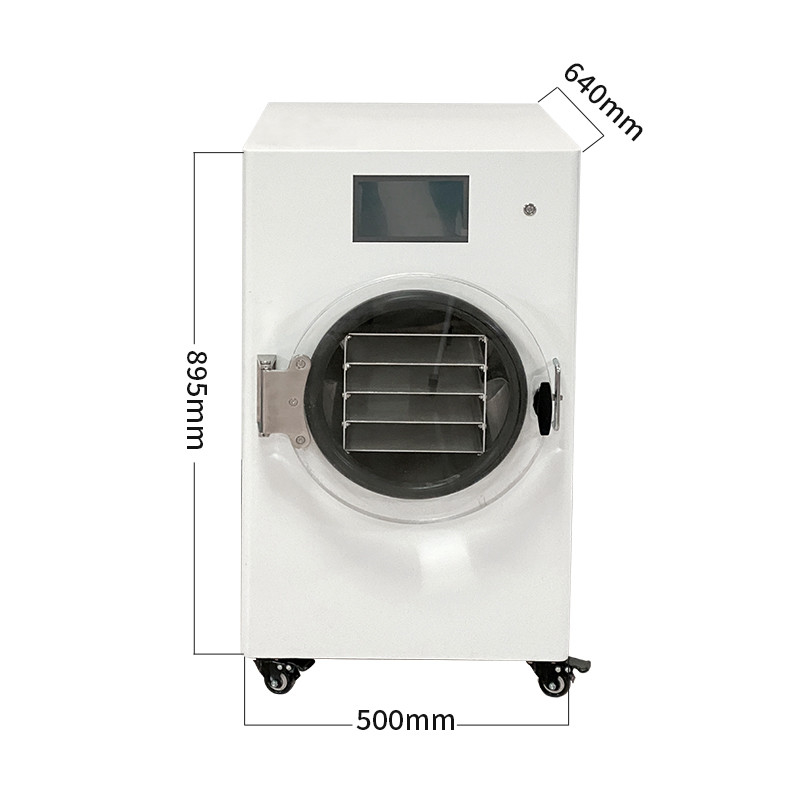

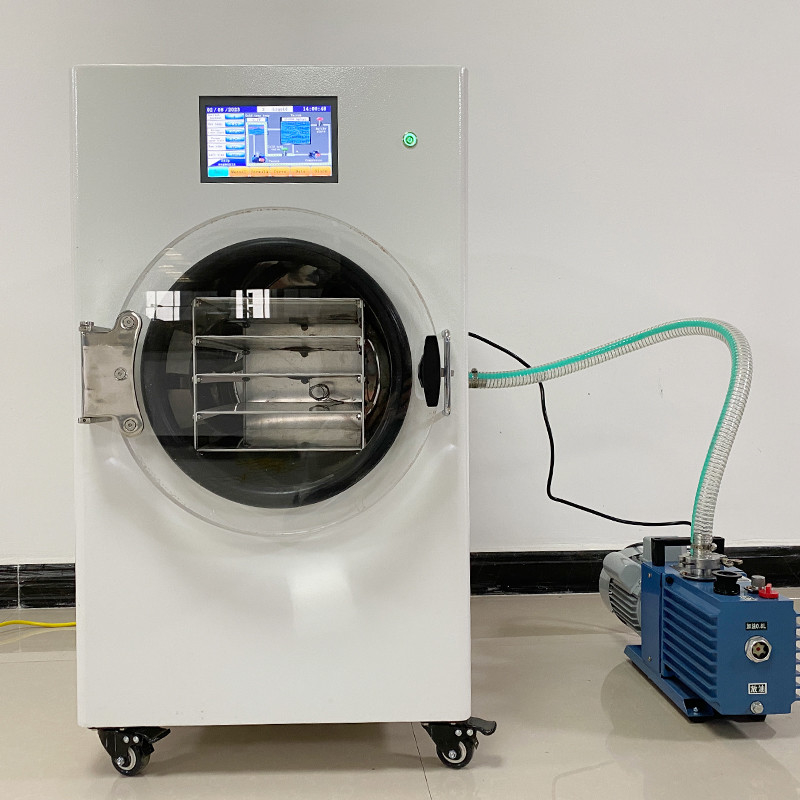

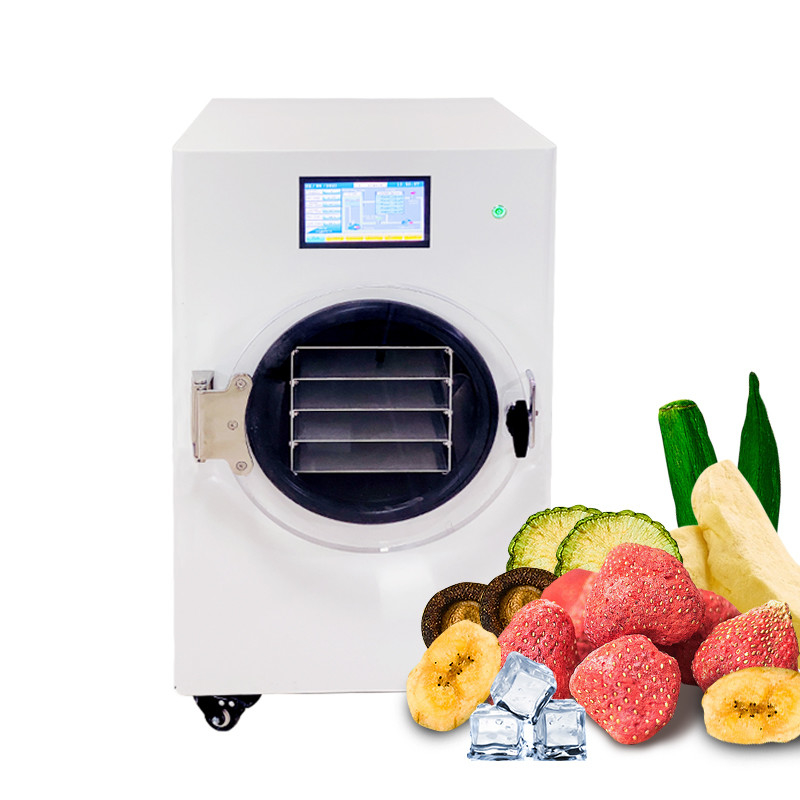

Home Vacuum Freeze Drying Dryer Machine Lyophilizer For Vegetable Fruit Meat Pet Food
Freeze Dryer Parameter
Model |
LPIA-01 |
LPIA-04 |
LPIA-06 |
Freeze-drying Area |
0.1㎡ |
0.4㎡ |
0.6㎡ |
Freeze-drying Temperature |
-40℃ |
||
Ultimate Vacuum |
15Pa |
||
Work Efficiency(kg/batch) |
1~2 |
4~6 |
6~8 |
Shelf space(mm) |
45 |
45 |
50 |
Power Supply |
110v/220v 50hz/60hz |
||
Power(W) |
750W |
1100W |
2300W |
Tray Quantity |
4 |
4 |
4 |
Tray Dimension(mm) |
140X278mm |
200x245mm |
330x440mm |
Water Capture(kg/24hours) |
2kg/24hours |
4kg/24hours |
6kg/24hours |
Weight(kg) |
130 |
160 |
220 |
Packing Dimension(mm) |
750x630x825 |
800x700x1230 |
860x800x1520 |
Freeze-drying Principle
Freeze-drying is a physical drying method in which the water in the material is directly converted into ice at extremely low temperature, thus drying. The main process of freeze-drying is to directly convert the high-temperature water molecules into low-temperature ice molecules, that is, directly convert the water molecules into gaseous state, thus avoiding the transformation process of water from liquid to gas in the traditional drying method, thus greatly reducing the content of water in the material.
Freeze-drying Advantages
The freeze-drying process has many advantages. Freeze-drying preserves product quality by removing water from the product, which inhibits bacteria and microbial growth. Freeze-drying also helps retain flavor, texture, and color, as well as the nutritional content of food products. Freeze-drying also helps preserve shelf life of products and helps to reduce shipping costs due to its low weight and volume. Freeze-dried products, due to their stability, can also be easily stored and transported.
