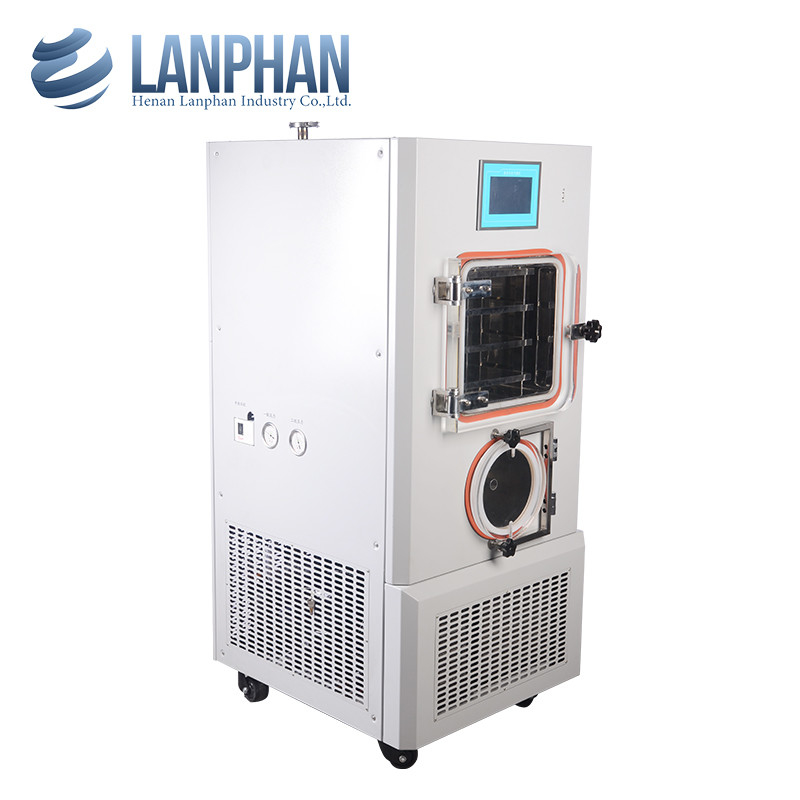

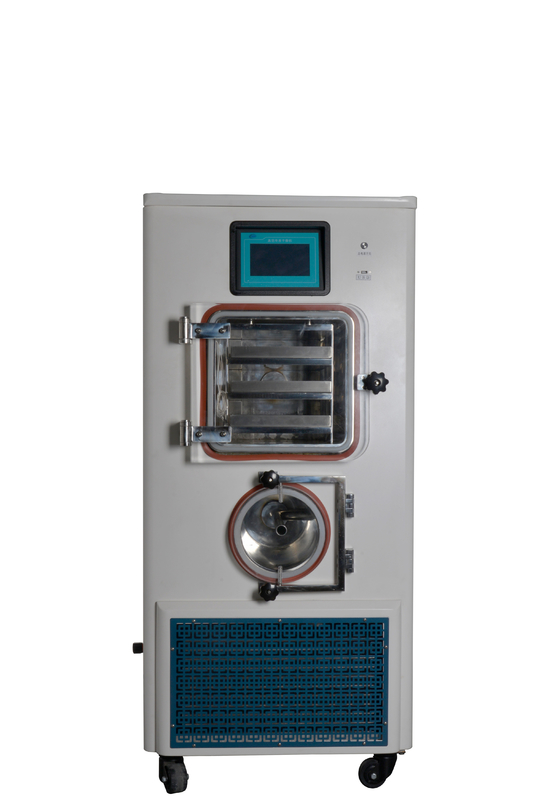

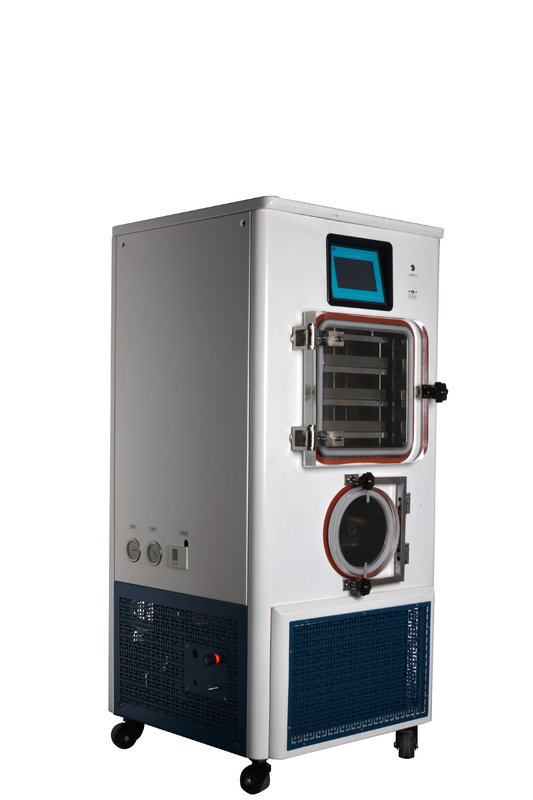

Lanphan Small Pilot Scale Freeze Drying Dryer Machine Lyophilizer

Product Details:
Place of Origin: China
Brand Name: Lanphan
Certification: CE ISO
Model Number: ZLGJ-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 800*800*1550(mm)
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram

Detail Information

Product Name: Pilot Freeze Dryer Freeze Drying Area: 0.3㎡
Final Vacuum: Below 10pa Pumping Speed: 4L/S
Water Catching Capacity: 4kg/24h Coolong Method: Air Cooling
Total Power: 3500W Main Power Supply: 220VAC 50HZ
High Light:

Vertical Cryogenic Liquid Storage Tank

,

550 Gallon Cryogenic Liquid Storage Tank

,

Stainless Steel Cryogenic Liquid Storage Tank

Product Description

Lanphan Small Pilot Scale Freeze Drying Dryer Machine Lyophilizer



Pilot Freeze Dryer Parameter



Freeze-drying area 0.3㎡
Cold trap coil temperature

<-75℃ (without load)



Ultimate vacuum

Below 10 Pa (without load)



Pumping speed 4 L/s
Water catching capacity

4 kg/24h



Cooling method

Air-cooled



Defrost mode

High-temperature defrosting



Main unit dimensions

800*800*1550 (mm)



Total power 3500 W
Material trays 3, with dimensions of 265*395*30 (mm)
Main power supply

220VAC, 50Hz



Ambient temperature -40℃ to 50℃





Pilot Freeze Dryer Description



The pilot freeze dryer is a device used for freeze-drying food and other substances. Freeze-drying is a process that involves freezing the material at low temperatures and removing the moisture under vacuum conditions, preserving the quality of the material and extending its shelf life.



pilot freeze dryers typically have the following features:



1. Compact structure and small footprint.

2. Utilize freezing and vacuum systems to rapidly lower the temperature of the material and remove the moisture through sublimation.

3. Adjustable parameters for freezing and vacuum to accommodate the processing requirements of different substances.

4. The equipment is usually made of stainless steel, making it easy to clean and maintain.

5. Equipped with an automatic control system to monitor and regulate parameters such as temperature, pressure, and time throughout the freeze-drying process.



pilot freeze dryers are widely used in food processing, pharmaceuticals, biotechnology, and other fields to freeze-dry various food products, medications, and biological preparations, preserving their original flavor, nutrients, and activity.



Lanphan Small Pilot Scale Freeze Drying Dryer Machine Lyophilizer 0Lanphan Small Pilot Scale Freeze Drying Dryer Machine Lyophilizer 1Lanphan Small Pilot Scale Freeze Drying Dryer Machine Lyophilizer 2Lanphan Small Pilot Scale Freeze Drying Dryer Machine Lyophilizer 3
