Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel

Minimum Order Quantity : 1 set Price : $2900
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 Sets per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE ISO Model Number: 2L Stainless Steel

Detail Information

Product Name: Small Spray Dryer Air Inlet Temperature Control: 30~300℃
Electric Heater Power: 3KW AC220V Fan Power: 0.55kw
Maximum Air Pressure: 1020pa Air Compressor Power: 0.2kw
High Light:

Rotary Atomizer Centrifugal Type Spray Dryer

,

37kw Centrifugal Extractor

,

Centrifugal Spray Dryer Stainless Steel

Product Description

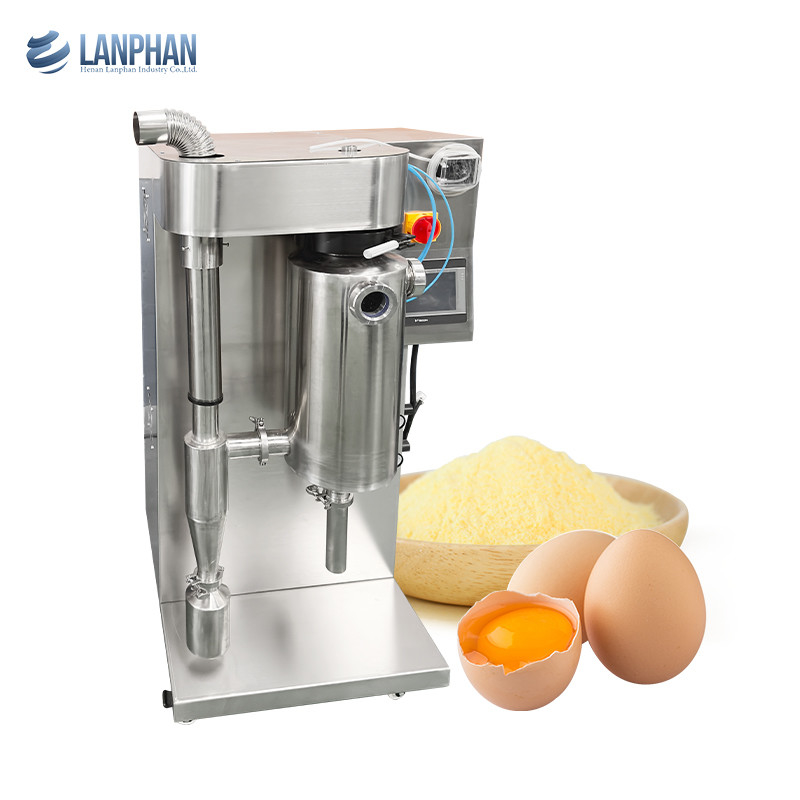

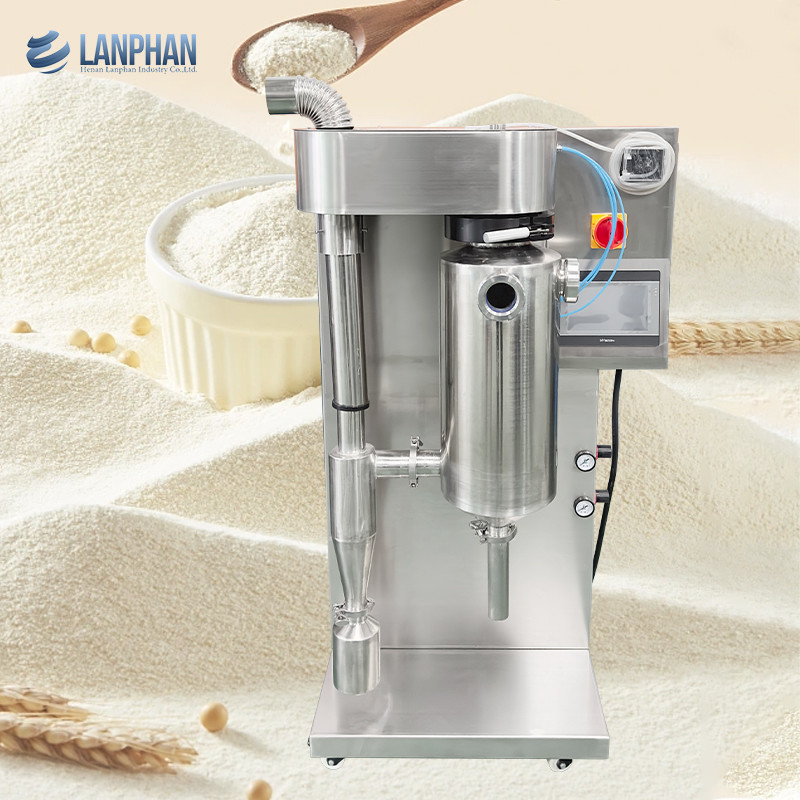

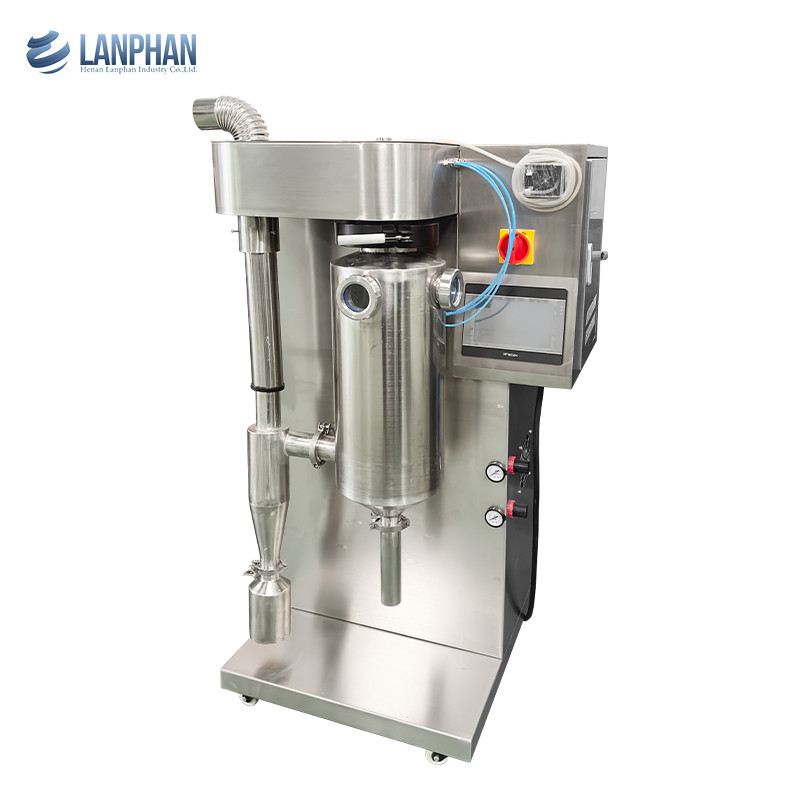

Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel



spray dryer description



Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.



spray dryer application



rotary atomizer spray dryer price is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.



Working Principle



After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning



Parameter



Air inlet temperature control 30~300℃
Air outlet temperature control 30~150℃
Electric heater power 3KW AC220V
evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃



Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel 0Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel 1Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel 2Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel 3Rotary Atomizer Centrifugal Type Spray Dryer Stainless Steel 4
