Industrial Centrifugal Spray Dryer 10L Chemical Equipment Pilot 380v

Product Details:
Place of Origin: Henan, China
Brand Name: Lanphan
Certification: CE ISO
Model Number: HF-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: $11299
Packaging Details: Wooden Box or Customized Packing
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets per Month

Detail Information

Product Name: Ethanol Extraction Equipment Total Power: 28kw/380v
Temperature Control Accuracy (℃): ±1 Mode Of Feed: Peristaltic Pump Regulation
Inlet Air Temperature Control (℃): 180~250 Air Outlet Temperature Control (℃): 80-90
Centrifugal Nozzle Speed: 22000rpm Water Evaporation (ml/h): 10kg/h
High Light:

Industrial Centrifugal Spray Dryer


10L Chemical Centrifugal Spray Dryer


380v Centrifugal Spray Dryer

Product Description

Chemical Equipment Pilot Industrial Spray Dryer 10L

Product Parameter


Product Name Large Spray Dryer
Inlet air temperature control (℃) 180~250
Air outlet temperature control (℃) 80~90
Centrifugal nozzle speed 22000rpm
Water evaporation (ml/h) 10kg/H
Maximum feeding capacity (ml/h) 10000
Minimum feeding amount (ml/h) 200
Mode of feed Peristaltic pump regulation
Temperature control accuracy (℃) ±1
Mean drying time (s) 1~1.5
Total Power 28kw/380v
Stainless steel drying tower size (mm) Diameter1400 height 2700
Product Dimension(mm) 2500x1500x2600
Package Dimension(mm) 2600x1600x2800


Product Application:

Various fields where the production of a free powder sample is required.
LPG-10L has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.


Product cleaning:

  • Dry cleaning - use brushes, brooms, vacuum cleaners cleaning.
  • Wet cleaning - with 60-80 ℃ hot water cleaning.
  • Chemical cleaning - clean with alkali, acid and all kinds of detergent.
  • Alkali wash - with the sodium hydroxide (NaOH) with a 0.5 1% concentration of solution, heating to 60-80 ℃ to clean, and then clean with clear water.
  • Acid wash: with nitric acid (HNO3) at 1-2% concentration of solution, heating temperature does not exceed 65 ℃ for washing, and then clean with clear water.

Note: when using wet cleaning and chemical cleaning, equipment and components shall be installed, through high temperature disinfection, 15 to 30 minutes, when the equipment cleaning, washing cannot use chlorine and compounds.

The stainless steel filament, after washing with the alkaline cleaning method, still should be uniform to laying within the framework of air filter, and spray to lightweight spindle oil or vacuum pump oil.

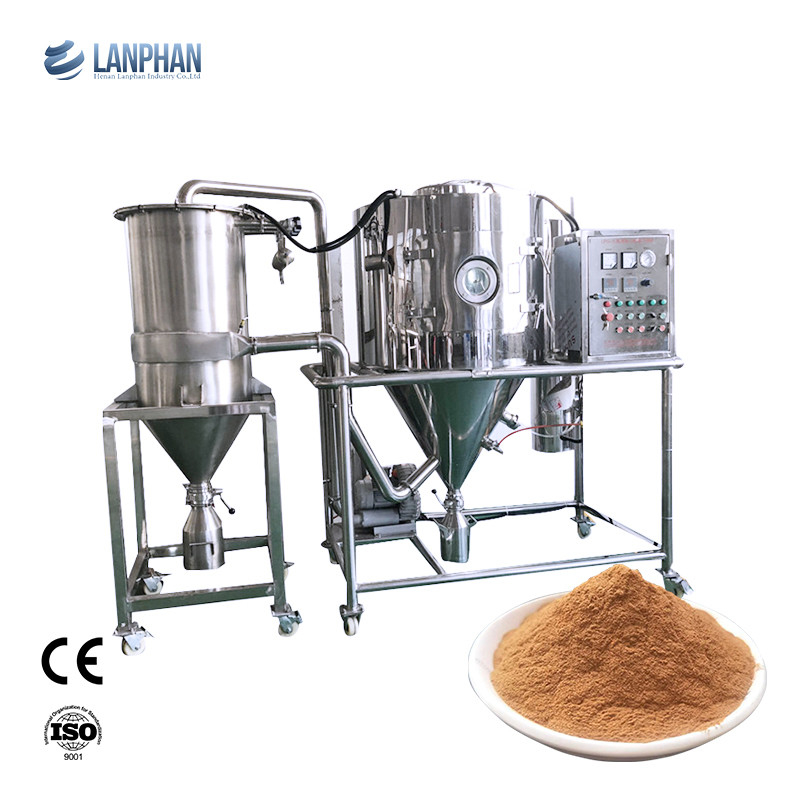

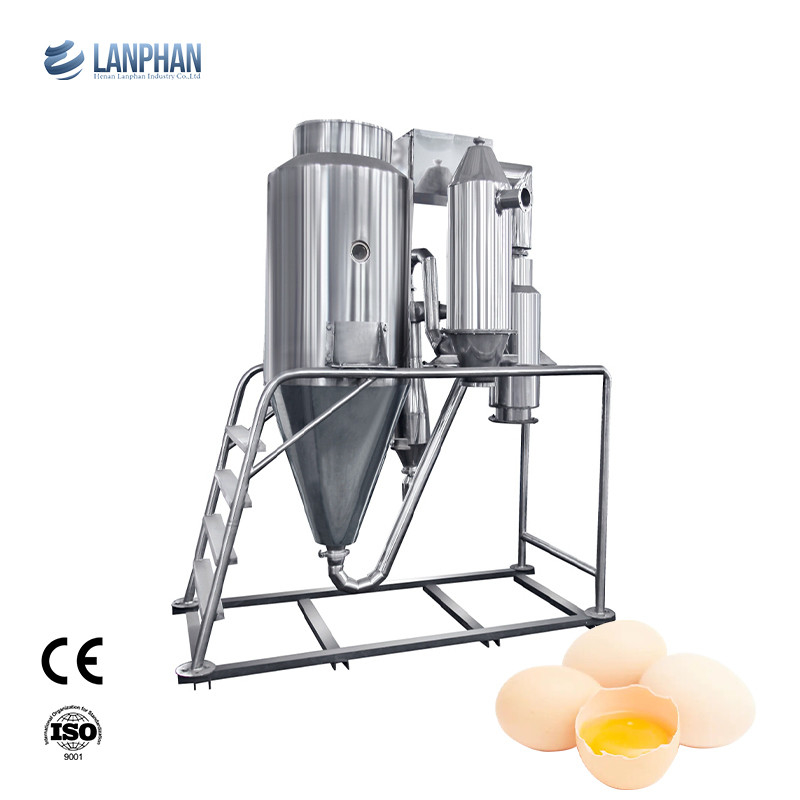

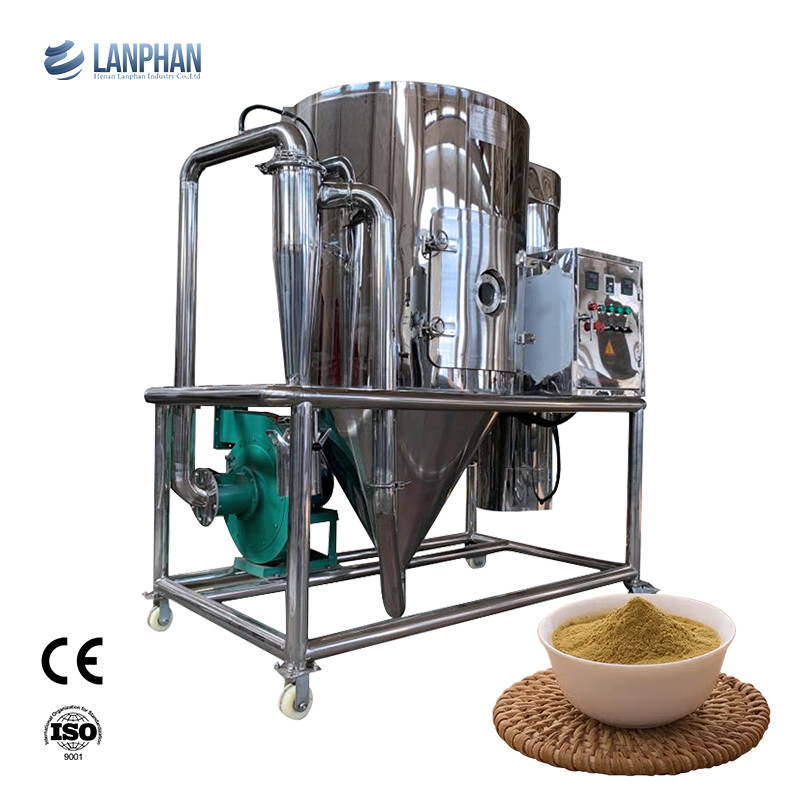

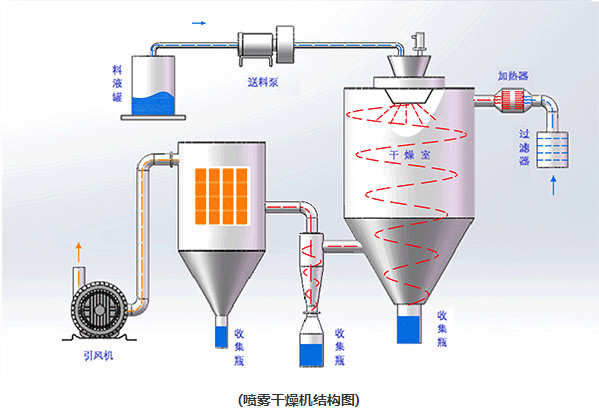

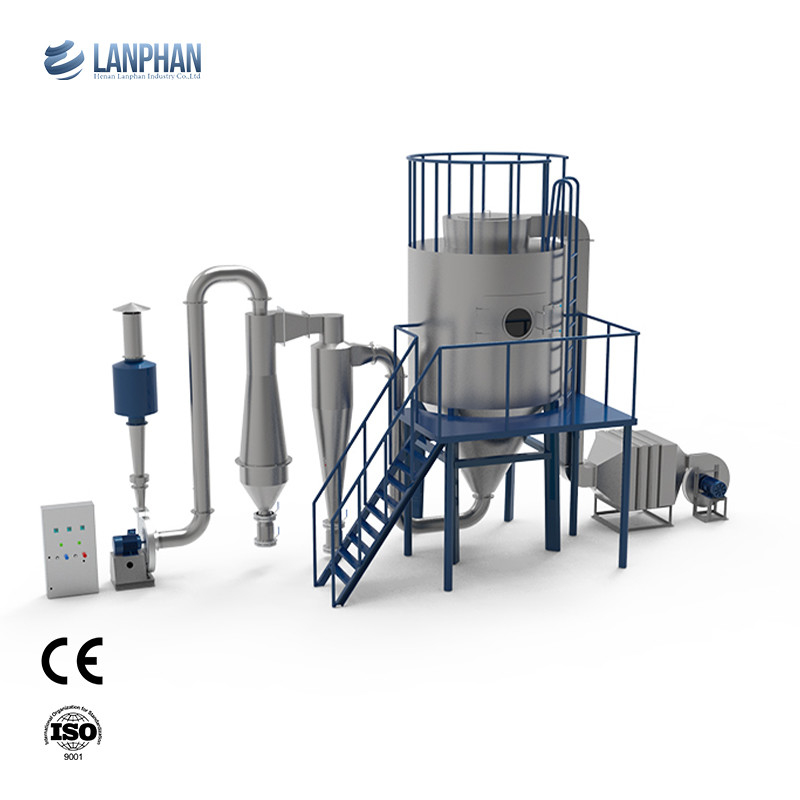

Industrial Centrifugal Spray Dryer 10L Chemical Equipment Pilot 380v 0Industrial Centrifugal Spray Dryer 10L Chemical Equipment Pilot 380v 1Industrial Centrifugal Spray Dryer 10L Chemical Equipment Pilot 380v 2Industrial Centrifugal Spray Dryer 10L Chemical Equipment Pilot 380v 3
